Tool Holders / External Grooving Toolholders
ADKT-TGF-L-2525-3
ADKT-TGF-R/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation TGF 32R (as listed in the catalogue data).

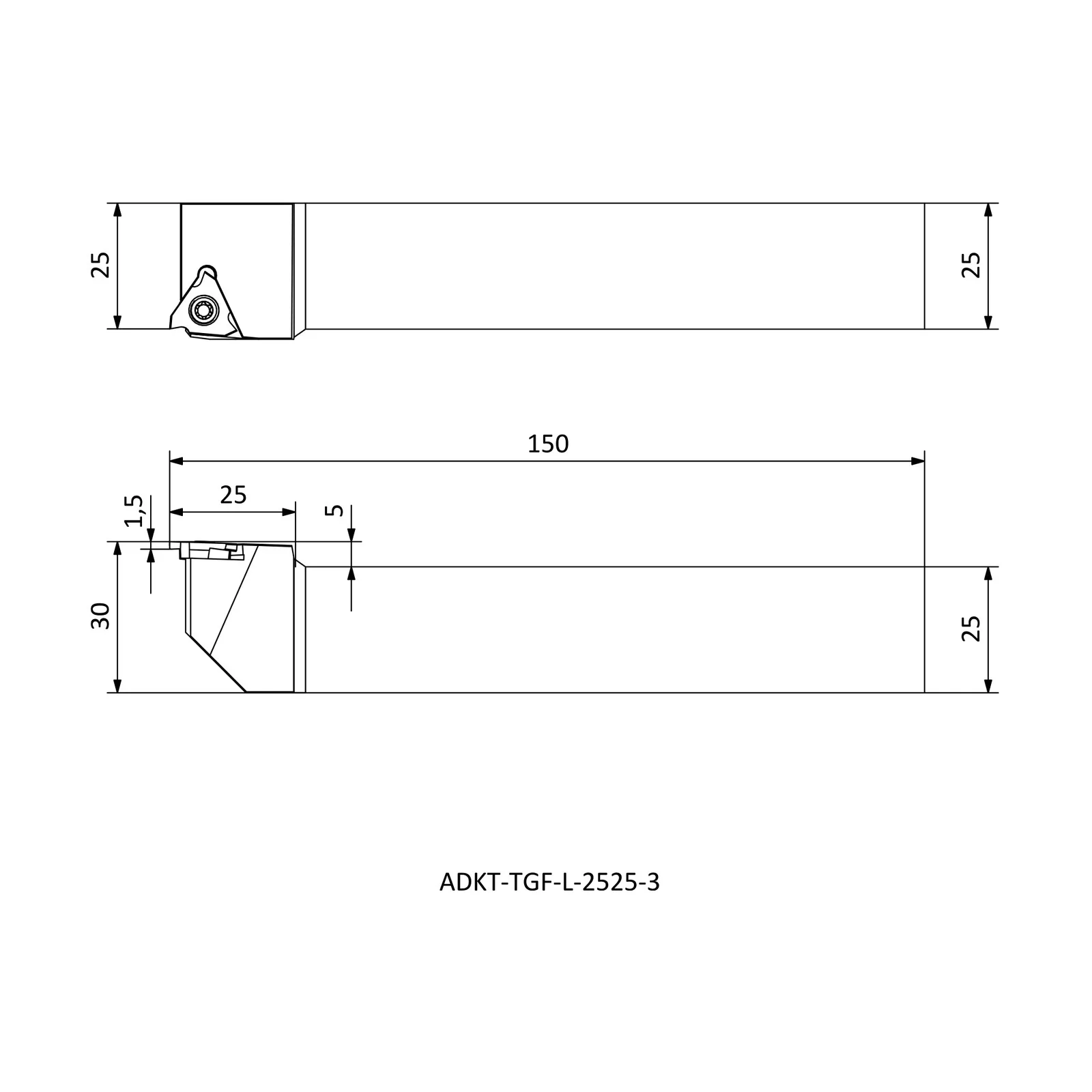

Specifications — ADKT-TGF-L-2525-3
| Insert Code | Insert designation | TGF32R-125-010 |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in ADKT-TGF-R/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| ADKT-TGF-L-1616-3 | L | 125 | 20 | 16 |
| ADKT-TGF-R-1616-3 | R | 125 | 20 | 16 |
| ADKT-TGF-L-2020-3 | L | 125 | 25 | 20 |
| ADKT-TGF-R-2020-3 | R | 125 | 25 | 20 |
| ADKT-TGF-L-2525-3 | L | 150 | 32 | 25 |
| ADKT-TGF-R-2525-3 | R | 150 | 32 | 25 |
