Tool Holders / External Grooving Toolholders
ADKT-ZCC1-R-2525-3-T22
ADKT-ZCC1-R/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation ZQMX - 3 (as listed in the catalogue data).

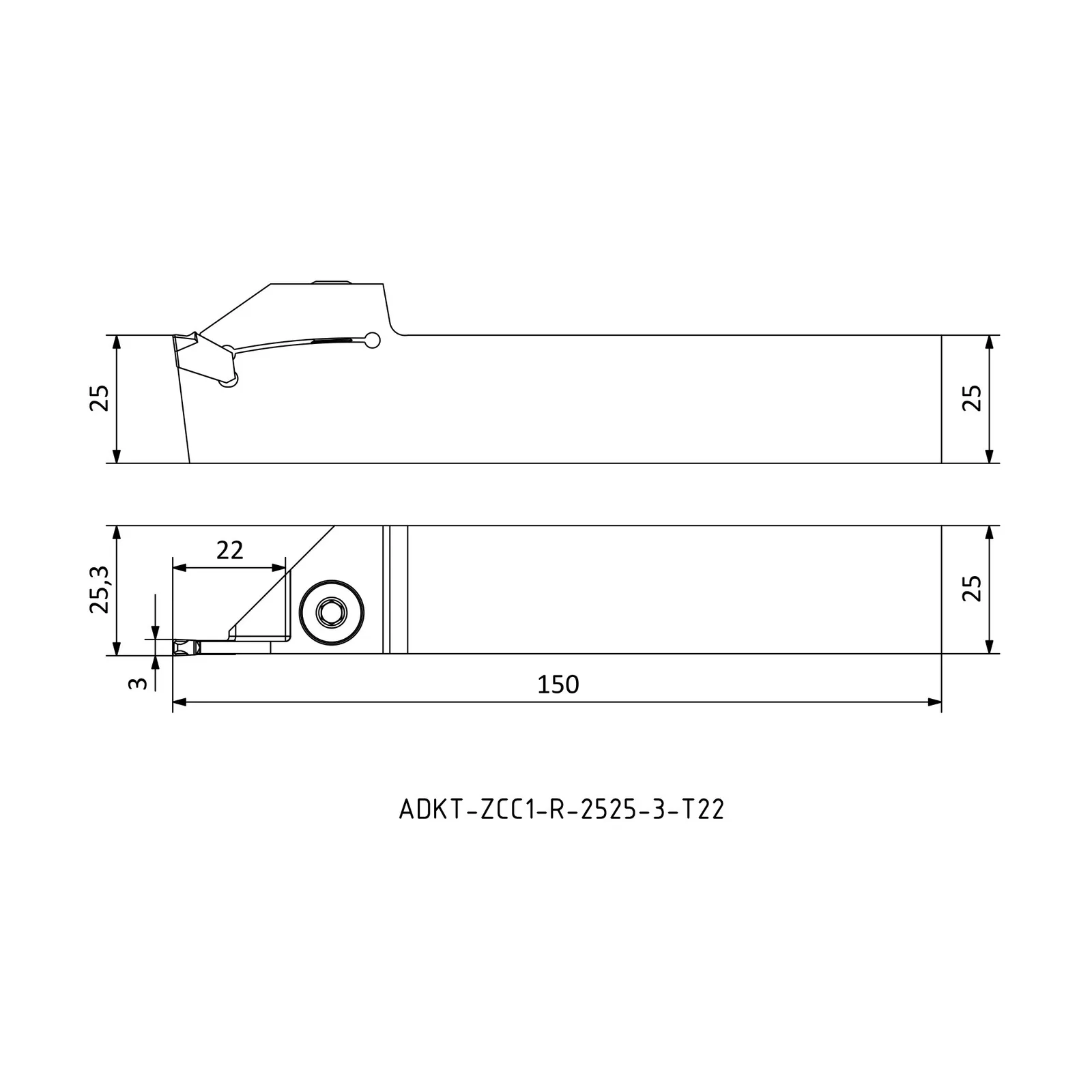

Specifications — ADKT-ZCC1-R-2525-3-T22
| Insert Code | Insert designation | ZQMX - 3 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 25.3 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
| CDX | Cutting depth, maximum (mm) | 22 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
