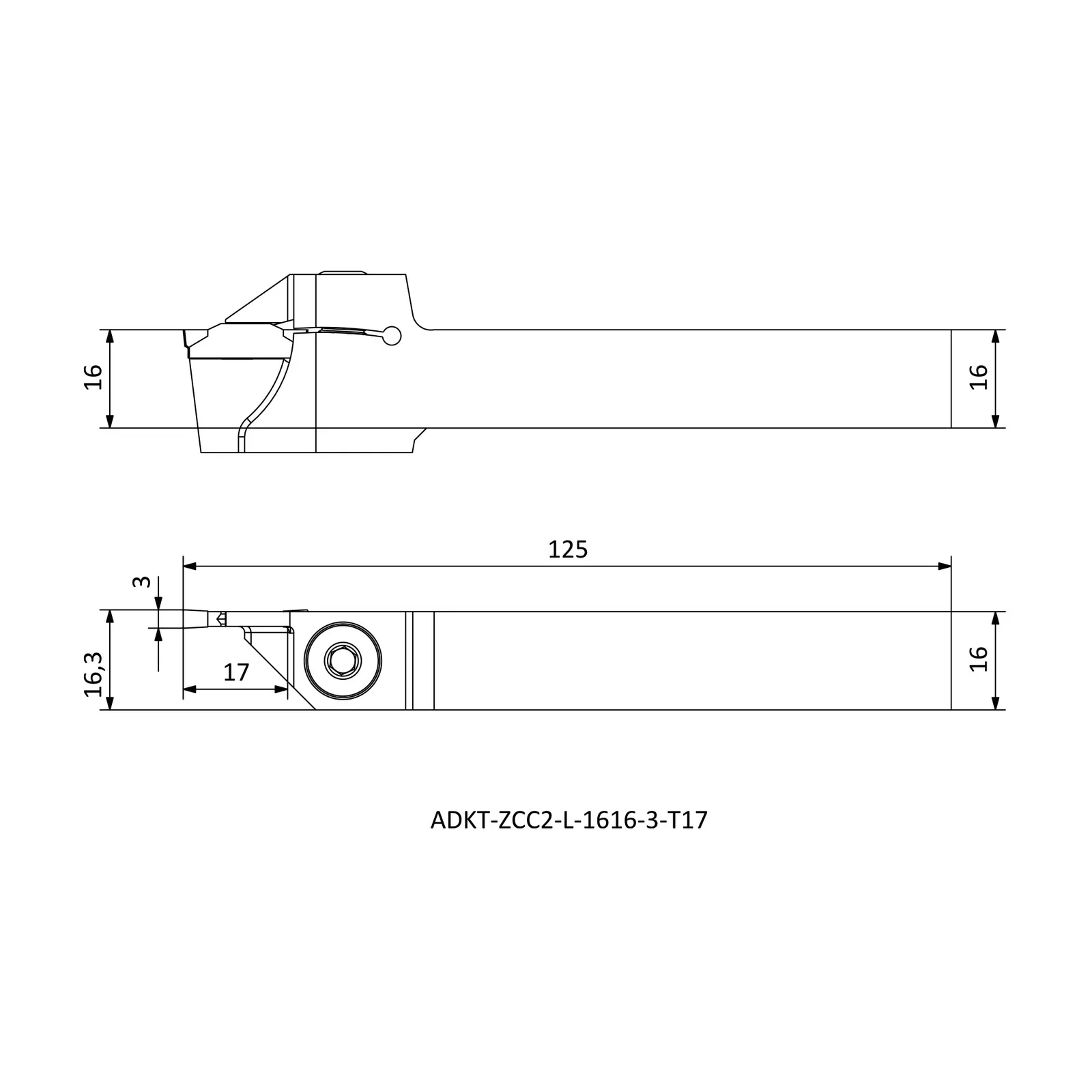

ADKT-ZCC2-L-1616-3-T17 — dimensioned drawing
Tool Holders / External Grooving Toolholders

ADKT-ZCC2-L-1616-3-T17

ADKT-ZCC2-R/L series · see all 60 sizes

Insert compatibility

This size is built for the insert designation Z.FD - 3 (as listed in the catalogue data).

Ask about this size

Specifications — ADKT-ZCC2-L-1616-3-T17

Insert Code Insert designation Z.FD - 3
Product Direction Cutting direction (hand) L
LF Functional length (mm) 125
WF Functional width (mm) 16.3
HF=H Functional height (mm) 16
B Shank width (mm) 16
CDX Cutting depth, maximum (mm) 20

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 60 sizes in ADKT-ZCC2-R/L

Product codeCutting direction (hand)Functional length (mm)Functional width (mm)Functional height (mm)
ADKT-ZCC2-R-2525-2-T15 R15025.225
ADKT-ZCC2-L-1616-2-T15 L12516.216
ADKT-ZCC2-R-1616-2-T15 R12516.216
ADKT-ZCC2-L-2020-2-T7 L12520.220
ADKT-ZCC2-R-2020-2-T7 R12520.220
ADKT-ZCC2-L-2020-2-T15 L12520.220
ADKT-ZCC2-R-2020-2-T15 R12520.220
ADKT-ZCC2-L-2525-2-T15 L15025.225
ADKT-ZCC2-L-1616-2.5-T15 L12516.316
ADKT-ZCC2-R-1616-2.5-T15 R12516.316
ADKT-ZCC2-L-2020-2.5-T17 L12520.320
ADKT-ZCC2-R-2020-2.5-T17 R12520.320
ADKT-ZCC2-L-2525-2.5-T15 L15025.325
ADKT-ZCC2-R-2525-2.5-T15 R15025.325
ADKT-ZCC2-L-1616-3-T15 L12516.316
ADKT-ZCC2-R-1616-3-T15 R12516.316
ADKT-ZCC2-L-1616-3-T17 L12516.316
ADKT-ZCC2-R-1616-3-T17 R12516.316
ADKT-ZCC2-L-1616-3-T20 L12516.316
ADKT-ZCC2-R-1616-3-T20 R12516.316
ADKT-ZCC2-L-2020-3-T12 L12520.320
ADKT-ZCC2-R-2020-3-T12 R12520.320
ADKT-ZCC2-L-2020-3-T20 L12520.320
ADKT-ZCC2-R-2020-3-T20 R12520.320
ADKT-ZCC2-L-2020-3-R21 L12520.320
ADKT-ZCC2-R-2020-3-R21 R12520.320
ADKT-ZCC2-L-2020-3-R25 L12520.320
ADKT-ZCC2-R-2020-3-R25 R12520.320
ADKT-ZCC2-L-2525-3-T12 L15025.325
ADKT-ZCC2-R-2525-3-T12 R15025.325
ADKT-ZCC2-L-2525-3-T22 L15025.325
ADKT-ZCC2-R-2525-3-T22 R15025.325
ADKT-ZCC2-L-2525-3-R30 L15025.325
ADKT-ZCC2-R-2525-3-R30 R15025.325
ADKT-ZCC2-L-2020-4-T12 L12520.520
ADKT-ZCC2-R-2020-4-T12 R12520.520
ADKT-ZCC2-L-2020-4-T20 L12520.520
ADKT-ZCC2-R-2020-4-T20 R12520.520
ADKT-ZCC2-L-2525-4-T12 L15025.525
ADKT-ZCC2-R-2525-4-T12 R15020.525
ADKT-ZCC2-L-2525-4-T22 L15025.325
ADKT-ZCC2-R-2525-4-T22 R15025.525
ADKT-ZCC2-L-2020-5-T12 L12520.520
ADKT-ZCC2-R-2020-5-T12 R12520.520
ADKT-ZCC2-L-2020-5-T20 L12520.520
ADKT-ZCC2-R-2020-5-T20 R12520.520
ADKT-ZCC2-L-2525-5-T12 L15025.525
ADKT-ZCC2-R-2525-5-T12 R15025.525
ADKT-ZCC2-L-2525-5-T25 L15025.525
ADKT-ZCC2-R-2525-5-T25 R15025.525
ADKT-ZCC2-L-3232-5-T25 L17032.532
ADKT-ZCC2-R-3232-5-T25 R17032.532
ADKT-ZCC2-L-2020-6-T20 L12520.620
ADKT-ZCC2-R-2020-6-T20 R12520.620
ADKT-ZCC2-L-2525-6-T25 L15025.625
ADKT-ZCC2-R-2525-6-T25 R15025.625
ADKT-ZCC2-L-3232-6-T25 L17032.632
ADKT-ZCC2-R-3232-6-T25 R17032.632
ADKT-ZCC2-L-3232-6-T30 L17032.632
ADKT-ZCC2-R-3232-6-T30 R17032.632
