Tool Holders / External Grooving Toolholders For Swiss Type Sliding Automatic Lathes
ADKT-K-R-1212-2-R12-K-S
ADKT-K-R/L-S series · see all 8 sizes
Insert compatibility
This size is built for the insert designation MGM. - 2 (as listed in the catalogue data).

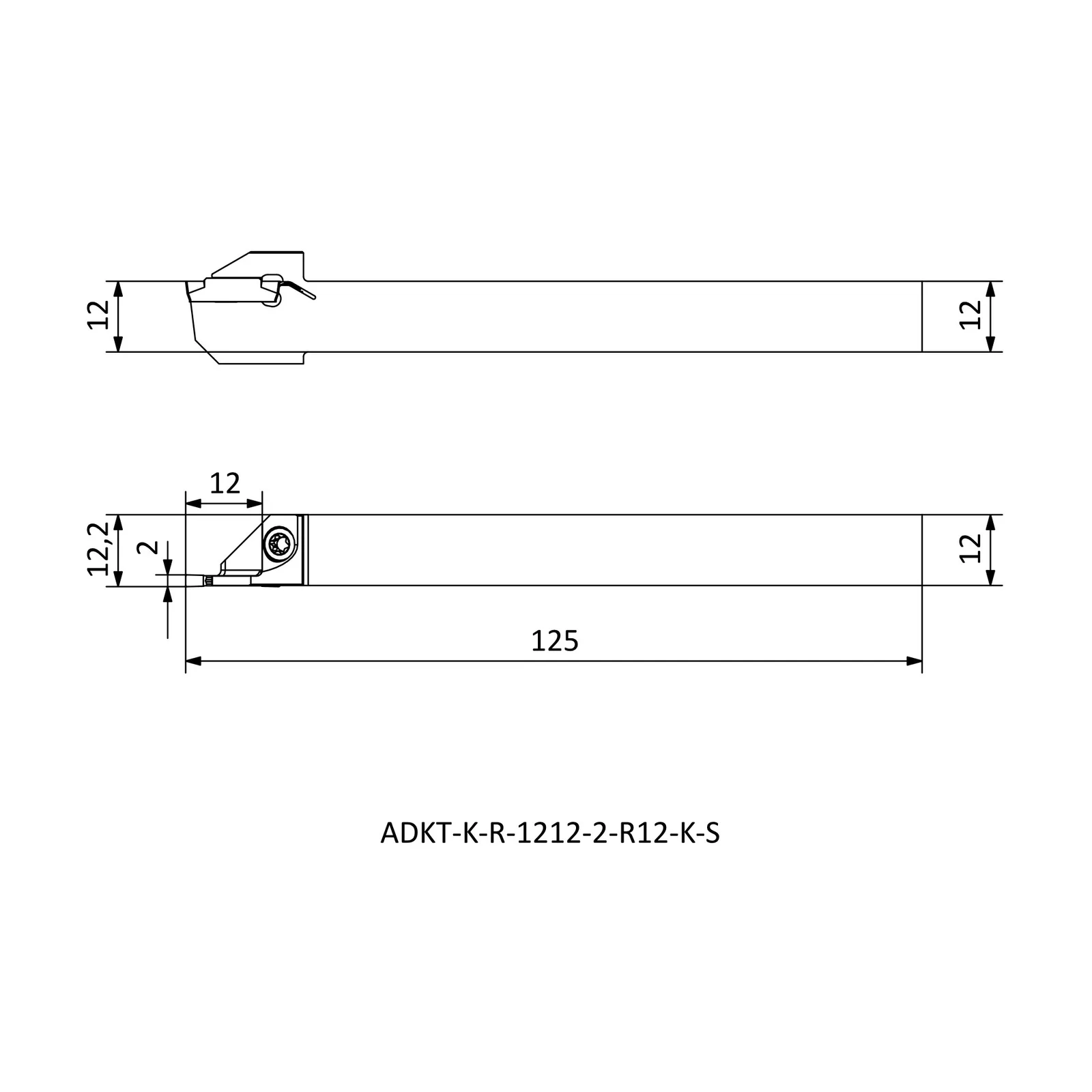

Specifications — ADKT-K-R-1212-2-R12-K-S
| Insert Code | Insert designation | MGM. - 2 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 12.2 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
| CDX | Cutting depth, maximum (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in ADKT-K-R/L-S
