Tool Holders / External Grooving Toolholders For Swiss Type Sliding Automatic Lathes
ADKT-KG-R-1212-2-R12-K-S
ADKT-KG-R/L-S series · see all 10 sizes
Insert compatibility
This size is built for the insert designation KG.. - 2 (as listed in the catalogue data).

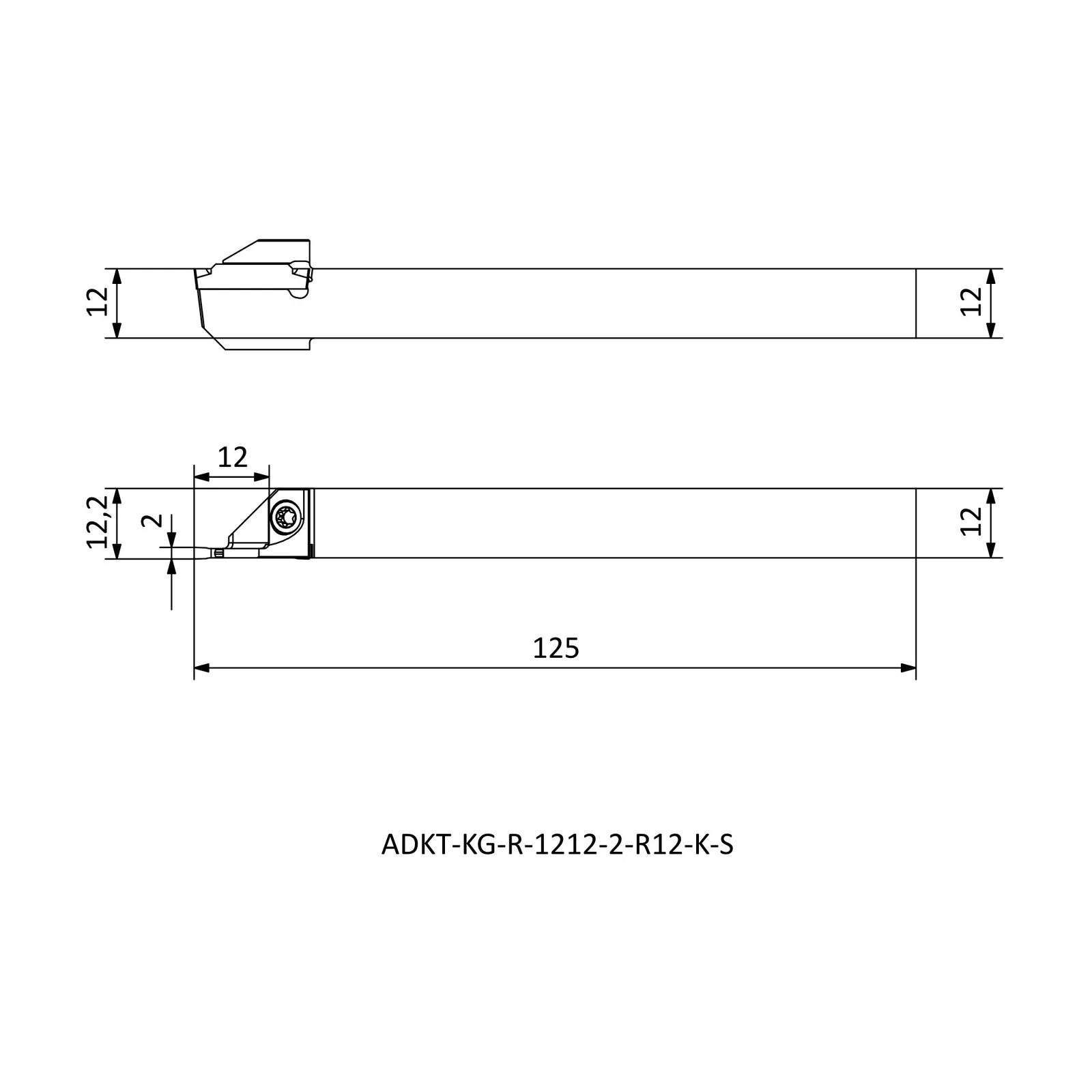

Specifications — ADKT-KG-R-1212-2-R12-K-S
| Insert Code | Insert designation | KG.. - 2 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 12.2 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
| CDX | Cutting depth, maximum (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in ADKT-KG-R/L-S
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| ADKT-KG-L-1010-2-R10-K-S | L | 125 | 10.2 | 10 |
| ADKT-KG-R-1010-2-R10-K-S | R | 125 | 10.2 | 10 |
| ADKT-KG-L-1212-2-R12-K-S | L | 125 | 12.2 | 12 |
| ADKT-KG-R-1212-2-R12-K-S | R | 125 | 12.2 | 12 |
| ADKT-KG-L-1616-2-R16-K-S | L | 125 | 16.2 | 16 |
| ADKT-KG-R-1616-2-R16-K-S | R | 125 | 16.2 | 16 |
| ADKT-KG-L-1212-3-R12-K-S | L | 125 | 12.3 | 12 |
| ADKT-KG-R-1212-3-R12-K-S | R | 125 | 12.3 | 12 |
| ADKT-KG-L-1616-3-R16-K-S | L | 125 | 16.3 | 16 |
| ADKT-KG-R-1616-3-R16-K-S | R | 125 | 16.3 | 16 |
