Tool Holders / External Threading Toolholders
SER/L
34 sizes available · 7 specification fields · standard: ISO, SNDVK

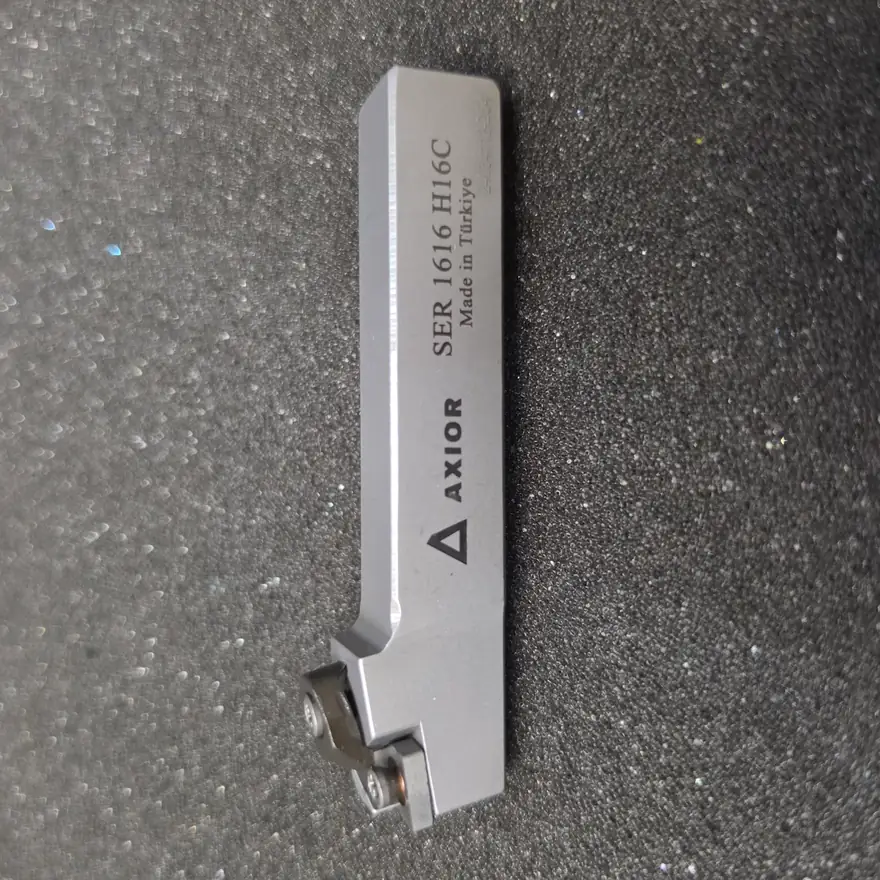

SER/L is an external threading tool holder. It is listed here in 34 sizes, 8–40 × 8–40 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: single-point external thread turning.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- 11 EL
- 11 ER
- 16 EL (0.35 – 3)
- 16 ER (0.35 – 3)
- 22 EL (3.5 – 4.5)
- 22 ER (3.5 – 4.5)
- 16 EL (1.5-3 TR)
- 16 ER (1.5-3 TR)
- 22 EL (4-6 TR)
- 22 ER (4-6 TR)
- 166 EL16
- 166 ER16
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| SEL 0808 E11 | 11 EL | L | 70 | 11 | 8 | 8 |
| SER 0808 E11 | 11 ER | R | 70 | 11 | 8 | 8 |
| SEL 1010 E11 | 11 EL | L | 70 | 11 | 10 | 10 |
| SER 1010 E11 | 11 ER | R | 70 | 11 | 10 | 10 |
| SEL 1212 F11 | 11 EL | L | 80 | 12 | 12 | 12 |
| SER 1212 F11 | 11 ER | R | 80 | 12 | 12 | 12 |
| SEL 1616 H11 | 11 EL | L | 100 | 16 | 16 | 16 |
| SER 1616 H11 | 11 ER | R | 100 | 16 | 16 | 16 |
| SEL 2020 H11 | 11 EL | L | 100 | 20 | 20 | 20 |
| SER 2020 H11 | 11 ER | R | 100 | 20 | 20 | 20 |
| SEL 1616 H16C | 16 EL (0.35 – 3) | L | 100 | 16 | 16 | 16 |
| SER 1616 H16C | 16 ER (0.35 – 3) | R | 100 | 16 | 16 | 16 |
| SEL 2020 K16C | 16 EL (0.35 – 3) | L | 125 | 20 | 20 | 20 |
| SER 2020 K16C | 16 ER (0.35 – 3) | R | 125 | 20 | 20 | 20 |
| SEL 2525 M16C | 16 EL (0.35 – 3) | L | 150 | 25 | 25 | 25 |
| SER 2525 M16C | 16 ER (0.35 – 3) | R | 150 | 25 | 25 | 25 |
| SEL 3232 P16C | 16 EL (0.35 – 3) | L | 170 | 32 | 32 | 32 |
| SER 3232 P16C | 16 ER (0.35 – 3) | R | 170 | 32 | 32 | 32 |
| SEL 2525 M22C | 22 EL (3.5 – 4.5) | L | 150 | 25 | 25 | 25 |
| SER 2525 M22C | 22 ER (3.5 – 4.5) | R | 150 | 25 | 25 | 25 |
| SEL 3232 P22C | 22 EL (3.5 – 4.5) | L | 170 | 32 | 32 | 32 |
| SER 3232 P22C | 22 ER (3.5 – 4.5) | R | 170 | 32 | 32 | 32 |
| SEL 4040 S22C | 22 EL (3.5 – 4.5) | L | 250 | 40 | 40 | 40 |
| SER 4040 S22C | 22 ER (3.5 – 4.5) | R | 250 | 40 | 40 | 40 |
| SEL 2525 M16C-T | 16 EL (1.5-3 TR) | L | 150 | 25 | 25 | 25 |
| SER 2525 M16C-T | 16 ER (1.5-3 TR) | R | 150 | 25 | 25 | 25 |
| SEL 2525 M22C-T | 22 EL (4-6 TR) | L | 150 | 25 | 25 | 25 |
| SER 2525 M22C-T | 22 ER (4-6 TR) | R | 150 | 25 | 25 | 25 |
| SEL 2020 K16C-S | 166 EL16 | L | 125 | 25 | 20 | 20 |
| SER 2020 K16C-S | 166 ER16 | R | 125 | 25 | 20 | 20 |
| SEL 2525 M16C-S | 166 EL16 | L | 150 | 31 | 25 | 25 |
| SER 2525 M16C-S | 166 ER16 | R | 150 | 31 | 25 | 25 |
| SEL 3232 P16C-S | 166 EL16 | L | 170 | 38.5 | 32 | 32 |
| SER 3232 P16C-S | 166 ER16 | R | 170 | 38.5 | 32 | 32 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
