Tool Holders / External Threading Toolholders
TER/L
20 sizes available · 7 specification fields · standard: ISO

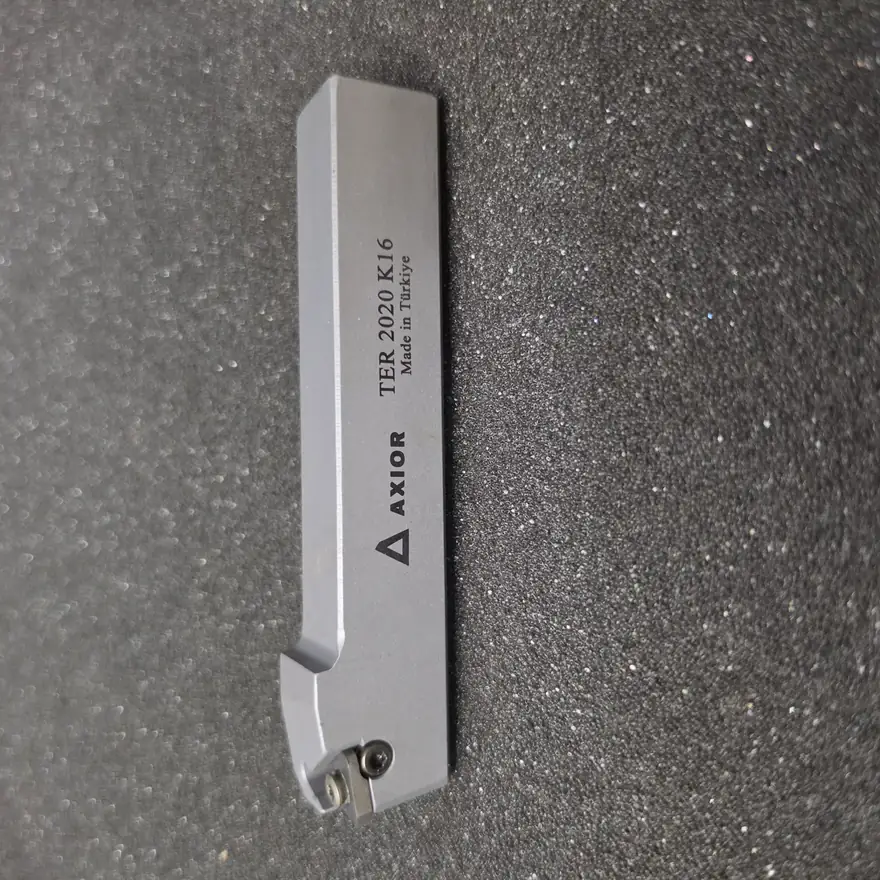

TER/L is an external threading tool holder. It is listed here in 20 sizes, 16–40 × 16–40 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: single-point external thread turning.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- 16 EL
- 16 ER
- 22 EL
- 22 ER
- 27 EL
- 27 ER
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| TEL 1616 H16 | 16 EL | L | 100 | 16 | 16 | 16 |
| TER 1616 H16 | 16 ER | R | 100 | 16 | 16 | 16 |
| TEL 2020 K16 | 16 EL | L | 125 | 20 | 20 | 20 |
| TER 2020 K16 | 16 ER | R | 125 | 20 | 20 | 20 |
| TEL 2525 M16 | 16 EL | L | 150 | 25 | 25 | 25 |
| TER 2525 M16 | 16 ER | R | 150 | 25 | 25 | 25 |
| TEL 3232 P16 | 16 EL | L | 170 | 32 | 32 | 32 |
| TER 3232 P16 | 16 ER | R | 170 | 32 | 32 | 32 |
| TEL 2525 M22 | 22 EL | L | 150 | 25 | 25 | 25 |
| TER 2525 M22 | 22 ER | R | 150 | 25 | 25 | 25 |
| TEL 3232 P22 | 22 EL | L | 170 | 32 | 32 | 32 |
| TER 3232 P22 | 22 ER | R | 170 | 32 | 32 | 32 |
| TEL 4040 S22 | 22 EL | L | 250 | 40 | 40 | 40 |
| TER 4040 S22 | 22 ER | R | 250 | 40 | 40 | 40 |
| TEL 2525 M27 | 27 EL | L | 150 | 25 | 25 | 25 |
| TER 2525 M27 | 27 ER | R | 150 | 25 | 25 | 25 |
| TEL 3232 P27 | 27 EL | L | 170 | 32 | 32 | 32 |
| TER 3232 P27 | 27 ER | R | 170 | 32 | 32 | 32 |
| TEL 4040 S27 | 27 EL | L | 250 | 40 | 40 | 40 |
| TER 4040 S27 | 27 ER | R | 250 | 40 | 40 | 40 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
