Tool Holders / External Threading Toolholders For Swiss Type Sliding Automatic Lathes

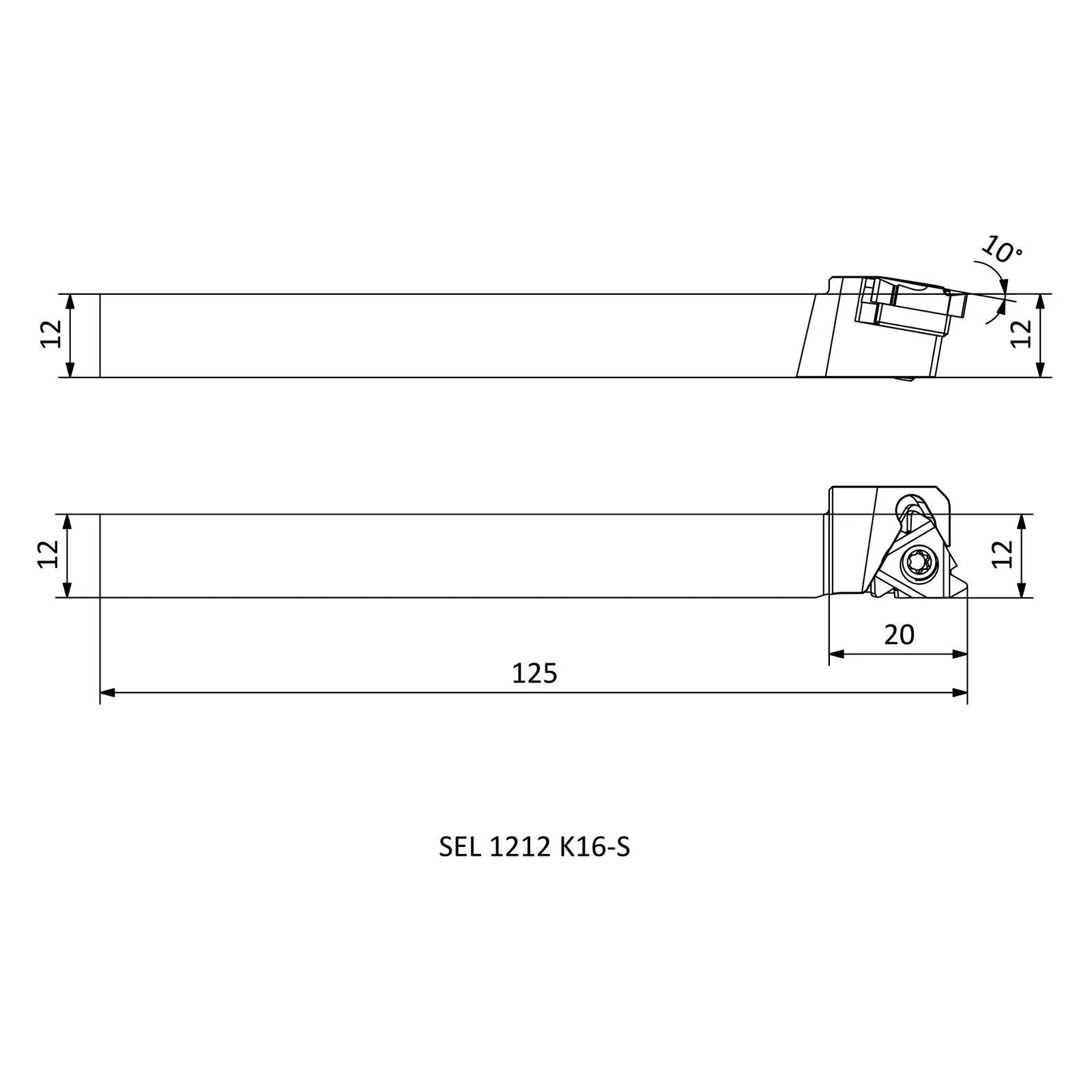

SEL 1212 K16-S
SER/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation 16 (as listed in the catalogue data).
Specifications — SEL 1212 K16-S
| Insert Code | Insert designation | 16 ER (0.35 - 3) |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 12 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SER/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SEL 1010 K11-S | L | 125 | 10 | 10 |
| SER 1010 K11-S | R | 125 | 10 | 10 |
| SEL 1212 K11-S | L | 125 | 12 | 12 |
| SER 1212 K11-S | R | 125 | 12 | 12 |
| SEL 1212 K16-S | L | 125 | 12 | 12 |
| SER 1212 K16-S | R | 125 | 12 | 12 |
