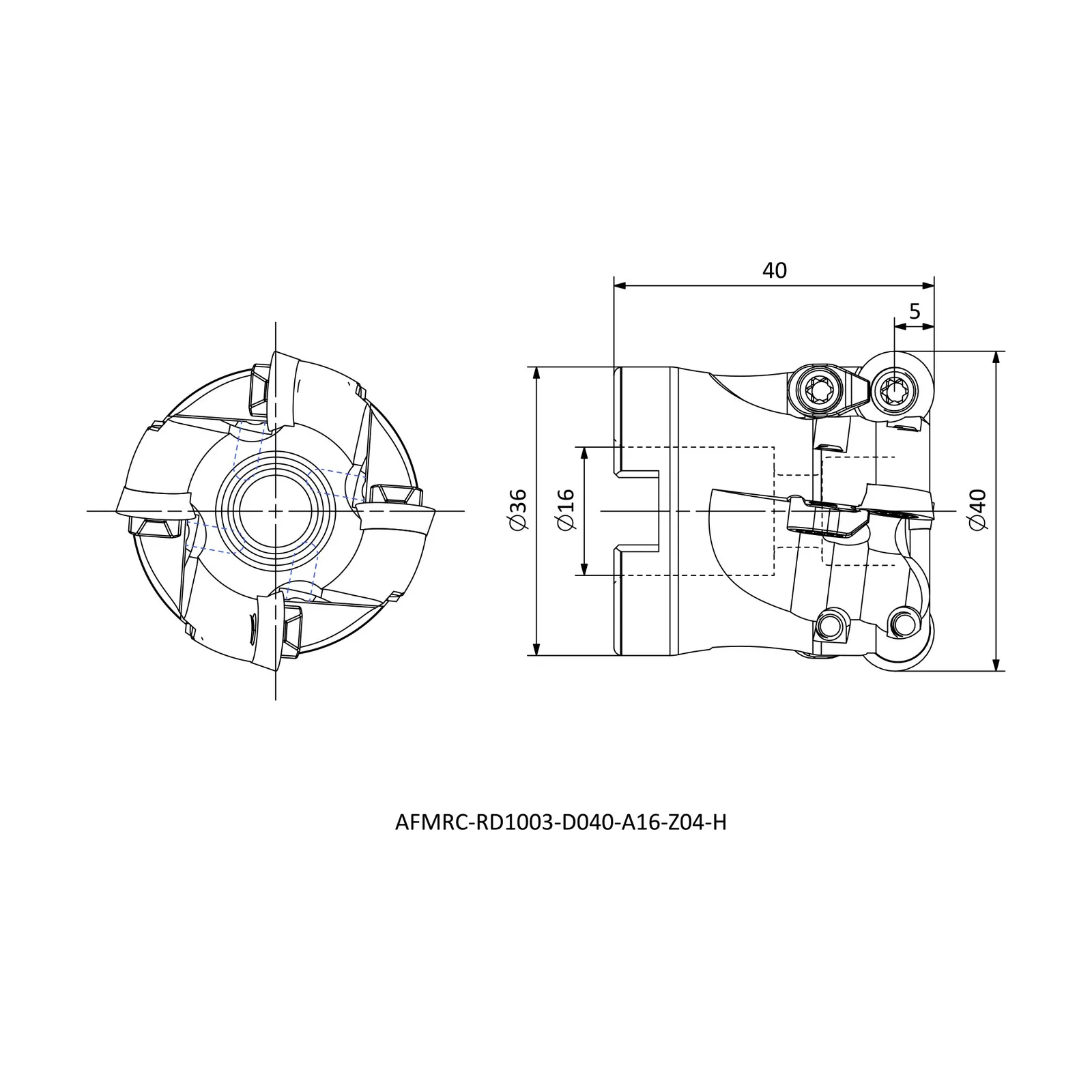

AFMRC-RD1003-D040-A16-Z04-H — dimensioned drawing
Tool Holders / Face And Copy Milling Tools (ARBOR Type)

AFMRC-RD1003-D040-A16-Z04-H

AFMR(C)-RD series · see all 46 sizes

Insert compatibility

This size is built for the insert designation RD.. 1003 (as listed in the catalogue data).

Ask about this size

Specifications — AFMRC-RD1003-D040-A16-Z04-H

Insert Code Insert designation RD.. 1003
Product Direction Cutting direction (hand) R
DCON Connection diameter (mm) 16
LF Functional length (mm) 40
DCX Maximum diameter (mm) 40
ZEFP Effective cutting edges 4
APMX Depth of cut, maximum (mm) 5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 46 sizes in AFMR(C)-RD

Product codeCutting direction (hand)Connection diameter (mm)Functional length (mm)Maximum diameter (mm)
AFMRC-RD1004-D080-A27-Z08-H R275080
AFMRC-RD1604-D200-C40-Z10 R4063200
AFMRC-RD1604-D080-A27-Z05-H R275080
AFMRC-RD1204-D063-A22-Z07-H R225063
AFMRC-RD1003-D100-A32-Z08-H R3250100
AFMRC-RD1204-D042-A16-Z04-H R164042
AFMRC-RD12T3-D052-A22-Z05-H R226052
AFMRC-RD12T3-D100-A32-Z08-H R2750100
AFMRC-RD1604-D080-A27-Z06-H R275080
AFMRC-RD1003-D050-A22-Z05-H R225050
AFMRC-RD1003-D052-A22-Z05 R225052
AFMRC-RD1604-D125-B40-Z07 R3250125
AFMRC-RD1003-D040-A16-Z04-H R164040
AFMRC-RD1003-D063-A22-Z06-H R225063
AFMRC-RD1003-D080-A27-Z07-H R275080
AFMRC-RD10T3-D050-A22-Z05-H R225050
AFMRC-RD10T3-D052-A22-Z06-H R224052
AFMRC-RD1204-D050-A22-Z05-H R164050
AFMRC-RD1204-D100-A32-Z08-H R3250100
AFMRC-RD12T3-D050-A22-Z05-H R164050
AFMRC-RD1604-D066-A27-Z05-H R225066
AFMRC-RD10T3-D063-A22-Z06-H R225063
AFMRC-RD1604-D066-A22-Z05-H R225066
AFMRC-RD1604-D160-C40-Z08 R4063160
AFMR-RD0803-D050-A22-Z05-H R224050
AFMRC-RD1003-D066-A27-Z07-H R275066
AFMRC-RD12T3-D063-A22-Z06-H R225063
AFMRC-RD10T3-D040-A16-Z05-H R164040
AFMRC-RD10T3-D042-A16-Z05-H R164042
AFMRC-RD10T3-D052-A22-Z05-H R224052
AFMRC-RD1204-D040-A16-Z04-H R406340
AFMRC-RD12T3-D080-A27-Z07-H R225080
AFMRC-RD1604-D052-A22-Z04-H R225052
AFMR-RD0702-D050-A22-Z06-H R224050
AFMRC-RD1604-D063-A22-Z05-H R225063
AFMR-RD12T3-D066-A27-Z06-H R225066
AFMRC-RD1204-D052-A22-Z05-H R225052
AFMRC-RD1604-D100-A32-Z07-H R2750100
AFMR-RD1003-D040-A16-Z05-H R164040
AFMRC-RD1204-D063-A22-Z06-H R225063
AFMRC-RD1204-D080-A27-Z07-H R225080
AFMRC-RD1204-D100-A32-Z07-H R2750100
AFMRC-RD12T3-D040-A16-Z04-H R275040
AFMRC-RD12T3-D125-B40-Z09 R3250125
AFMRC-RD1604-D050-A22-Z04-H R325050
AFMR-RD1004-D063-A22-Z06-H R225063

Full specification table & catalogue PDF
