Tool Holders / Face And Copy Milling Tools (ARBOR Type)

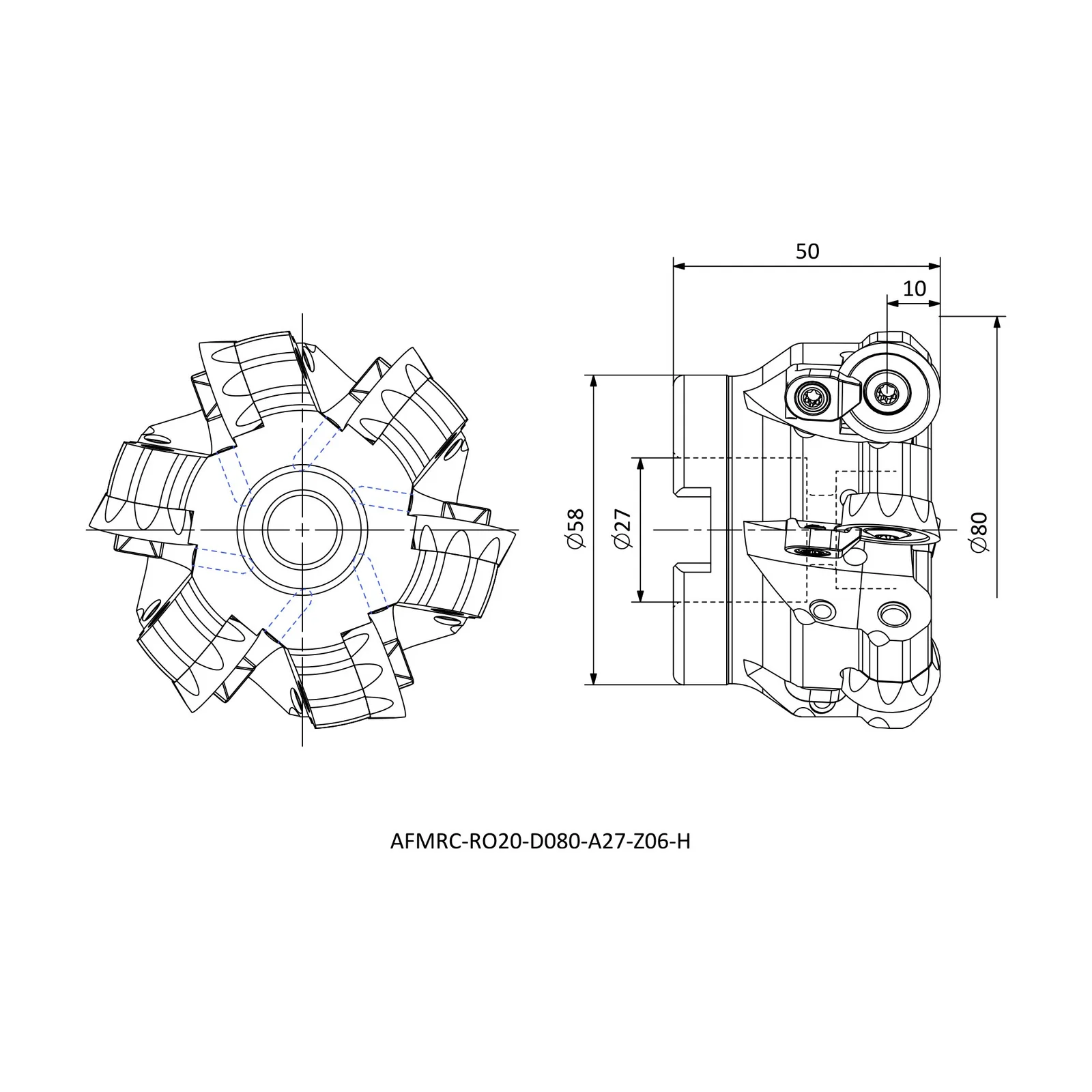

AFMRC-RO20-D080-A27-Z06-H
AFMR(C)-RO series · see all 2 sizes
Insert compatibility
This size is built for the insert designation ROMX 2006 (as listed in the catalogue data).
Specifications — AFMRC-RO20-D080-A27-Z06-H
| Insert Code | Insert designation | ROMX 2006.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AFMR(C)-RO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFMRC-RO20-D063-A22-Z05-H | R | 63 | 22 | 50 |
| AFMRC-RO20-D080-A27-Z06-H | R | 80 | 27 | 50 |
