Tool Holders / Face And Copy Milling Tools (ARBOR Type)
AFMR-QP10T3-D063-A22-Z06-H
AFMR-QP series · see all 5 sizes
Insert compatibility
This size is built for the insert designation QP.. 10T3 (as listed in the catalogue data).

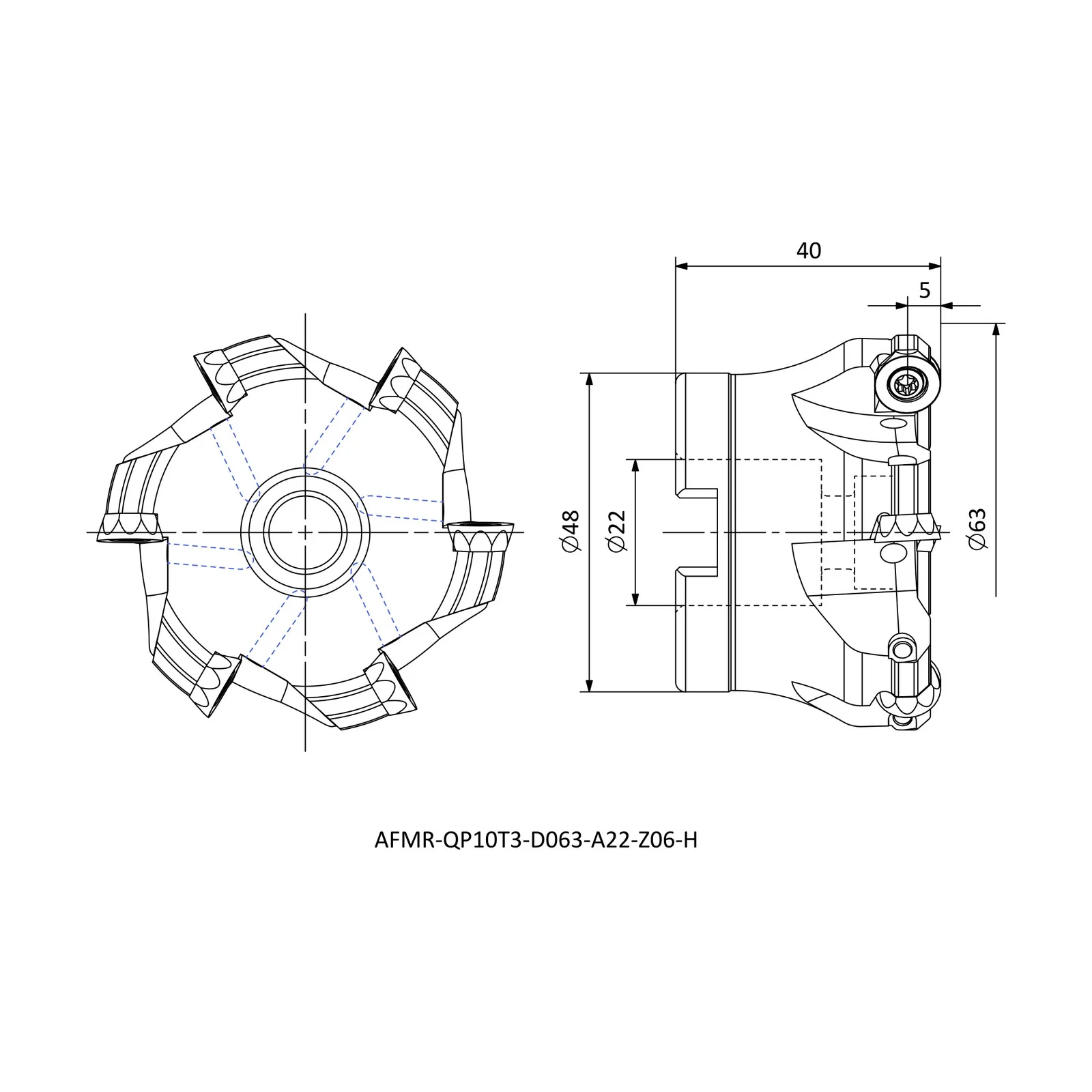

Specifications — AFMR-QP10T3-D063-A22-Z06-H
| Insert Code | Insert designation | QP.. 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| DCX | Maximum diameter (mm) | 63 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFMR-QP
