Tool Holders / Face And Copy Milling Tools (ARBOR Type)
AFMR-RC1204-D052-A22-Z05-H
AFMR-RC series · see all 6 sizes
Insert compatibility
This size is built for the insert designation RC.. 1204 (as listed in the catalogue data).

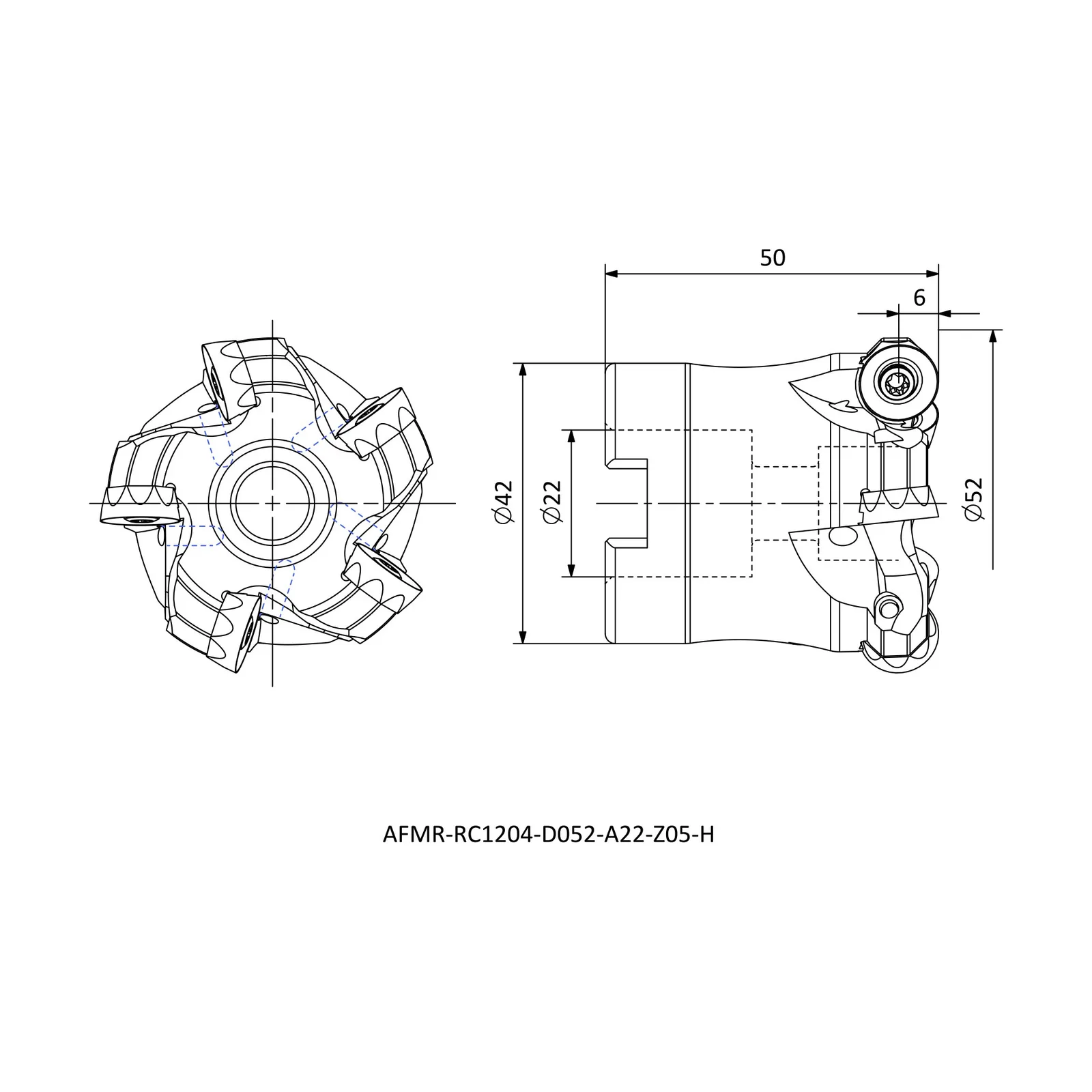

Specifications — AFMR-RC1204-D052-A22-Z05-H
| Insert Code | Insert designation | RC.. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 52 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AFMR-RC
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AFMR-RC1204-D040-A16-Z04-H | R | 16 | 40 | 40 |
| AFMR-RC1204-D050-A22-Z05-H | R | 22 | 50 | 50 |
| AFMR-RC1204-D052-A22-Z05-H | R | 22 | 50 | 52 |
| AFMR-RC1204-D063-A22-Z06-H | R | 22 | 50 | 63 |
| AFMR-RC1204-D063-A27-Z06-H | R | 27 | 50 | 63 |
| AFMR-RC1204-D080-A27-Z07-H | R | 27 | 50 | 80 |
