Tool Holders / Face And Copy Milling Tools (ARBOR Type)
AFMR-RP10T3-D080-A27-Z07-H
AFMR-RP series · see all 5 sizes
Insert compatibility
This size is built for the insert designation RPNX 10T3 (as listed in the catalogue data).

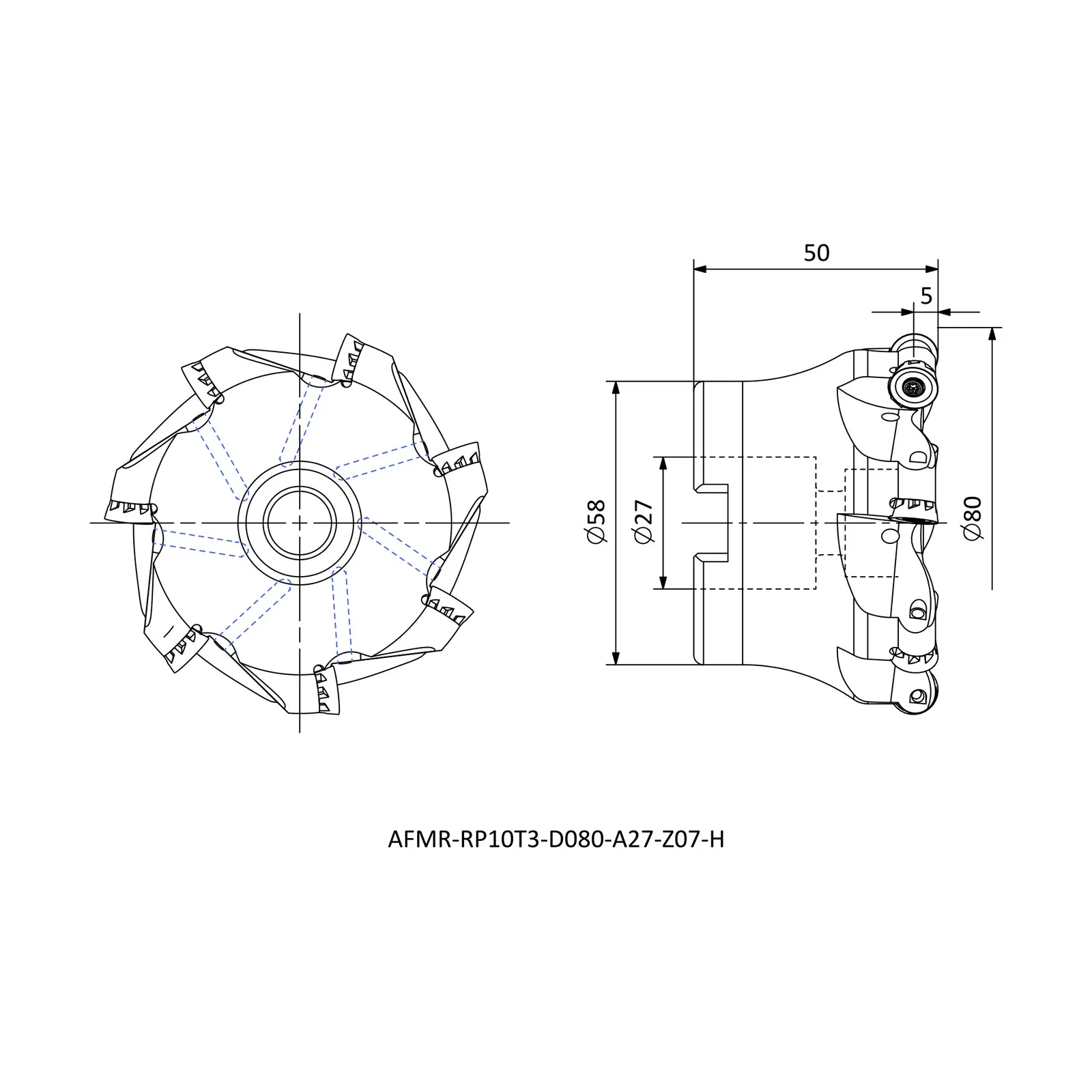

Specifications — AFMR-RP10T3-D080-A27-Z07-H
| Insert Code | Insert designation | RPNX 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 80 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFMR-RP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AFMR-RP1204-D050-A22-Z05-H | R | 22 | 40 | 50 |
| AFMR-RP10T3-D063-A22-Z06-H | R | 22 | 40 | 63 |
| AFMR-RP10T3-D080-A27-Z07-H | R | 27 | 50 | 80 |
| AFMR-RP1204-D040-A16-Z04-H | R | 16 | 40 | 40 |
| AFMR-RP1204-D080-A27-Z07-H | R | 27 | 50 | 80 |
