Tool Holders / Face And Copy Milling Tools (ARBOR Type)
AFMR-RY12-D052-A22-Z05-H
AFMR-RY series · see all 10 sizes
Insert compatibility
This size is built for the insert designation RYMX 1205 (as listed in the catalogue data).

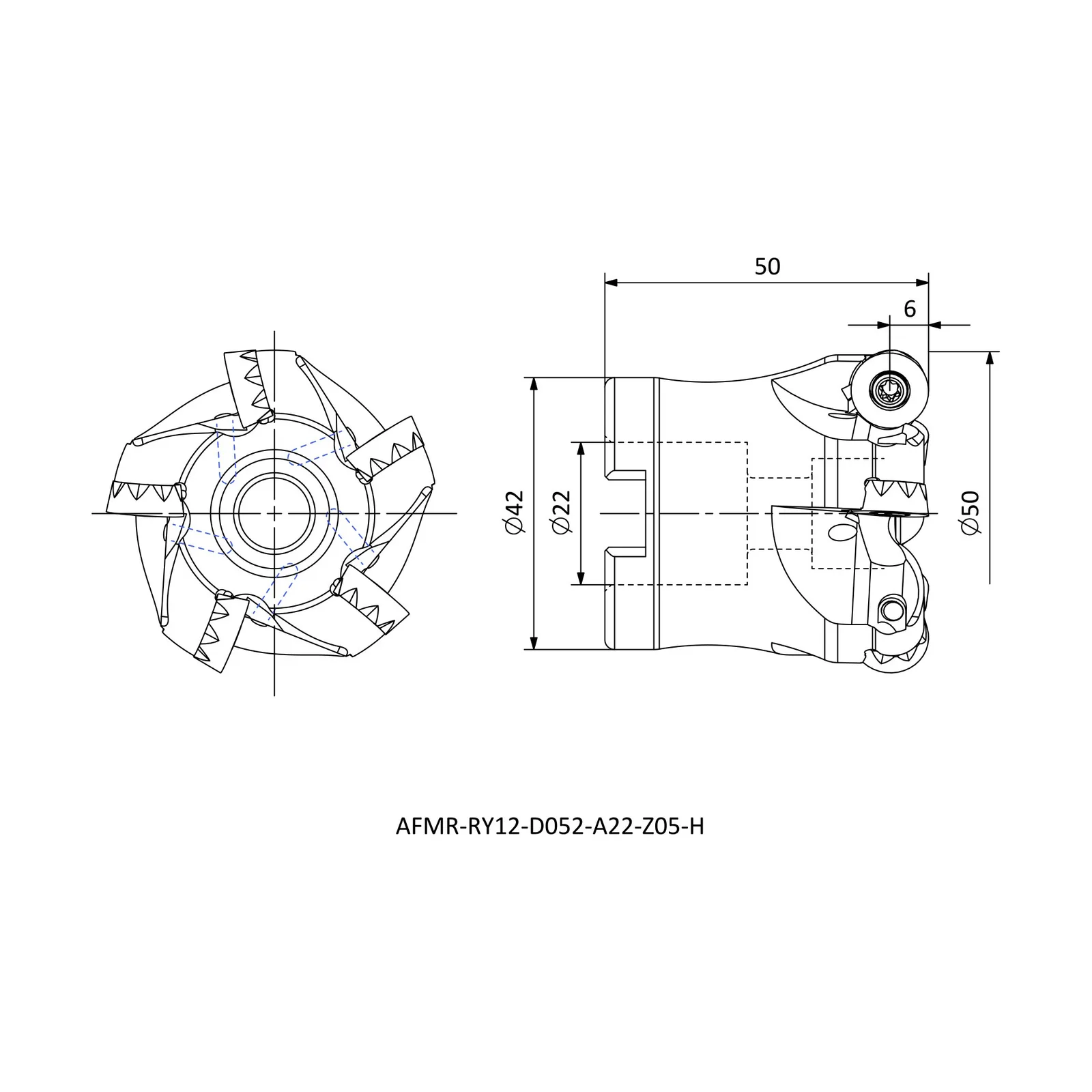

Specifications — AFMR-RY12-D052-A22-Z05-H
| Insert Code | Insert designation | RYMX 1205.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 52 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
