Tool Holders / Face Milling (ARBOR Type)
AFM42C-XD0806-D100-A32-Z06-H
AFM42C-XD series · see all 6 sizes
Insert compatibility
This size is built for the insert designation XDMW 0806 (as listed in the catalogue data).

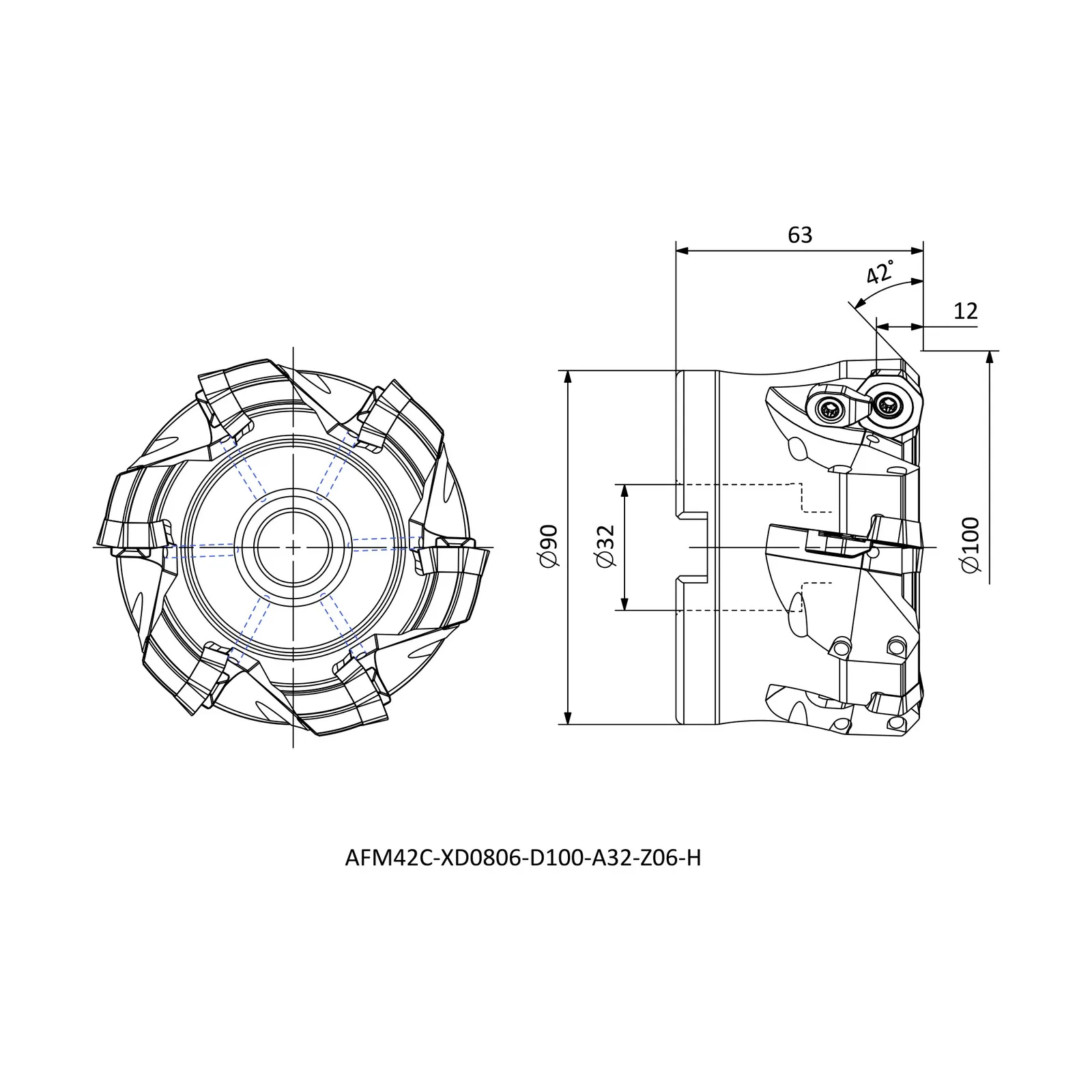

Specifications — AFM42C-XD0806-D100-A32-Z06-H
| Insert Code | Insert designation | XDMW 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 63 |
| DCX | Maximum diameter (mm) | 100 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AFM42C-XD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AFM42C-XD0806-D063-A27-Z04-H | R | 27 | 50 | 63 |
| AFM42C-XD0806-D080-A27-Z05-H | R | 27 | 50 | 80 |
| AFM42C-XD0806-D100-A32-Z06-H | R | 32 | 63 | 100 |
| AFM42C-XD0806-D125-B40-Z07 | R | 40 | 63 | 125 |
| AFM42C-XD0806-D160-C40-Z08 | R | 40 | 63 | 160 |
| AFM42C-XD0806-D200-C60-Z09 | R | 60 | 63 | 200 |
