Tool Holders / Face Milling (ARBOR Type)

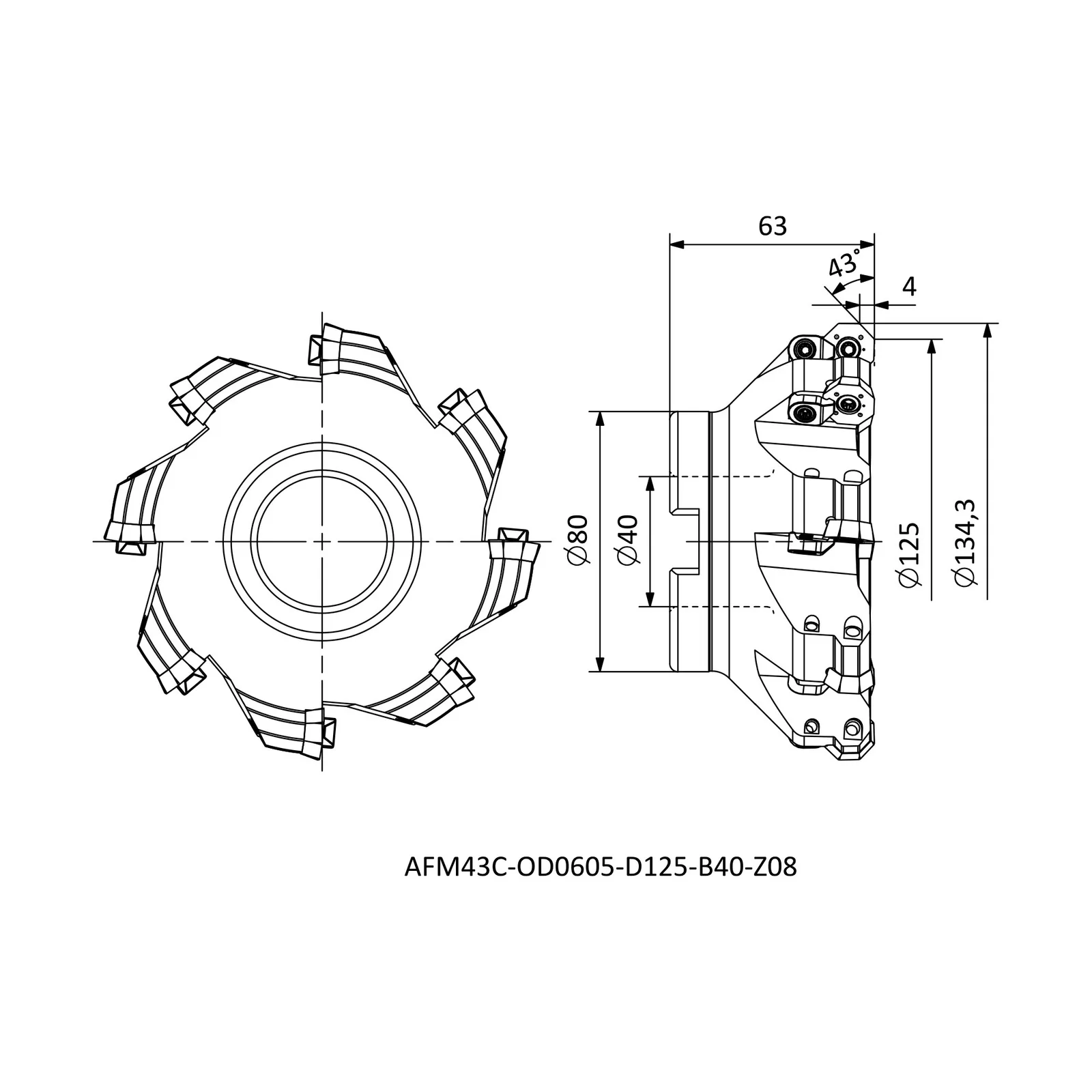

AFM43C-OD0605-D125-B40-Z08
AFM43C-OD series · see all 3 sizes
Insert compatibility
This size is built for the insert designation OD.. 0605 (as listed in the catalogue data).
Specifications — AFM43C-OD0605-D125-B40-Z08
| Insert Code | Insert designation | OD.. 0605.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 125 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 8 |
| APMX | Depth of cut, maximum (mm) | 4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AFM43C-OD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM43C-OD0605-D080-A27-Z06-H | R | 80 | 27 | 50 |
| AFM43C-OD0605-D100-A32-Z07-H | R | 100 | 32 | 50 |
| AFM43C-OD0605-D125-B40-Z08 | R | 125 | 40 | 63 |
