Tool Holders / Face Milling (ARBOR Type)
AFM44-ON0606-D080-A27-Z08-H
AFM44-ON series · see all 7 sizes
Insert compatibility
This size is built for the insert designation ONHX 0606 (as listed in the catalogue data).

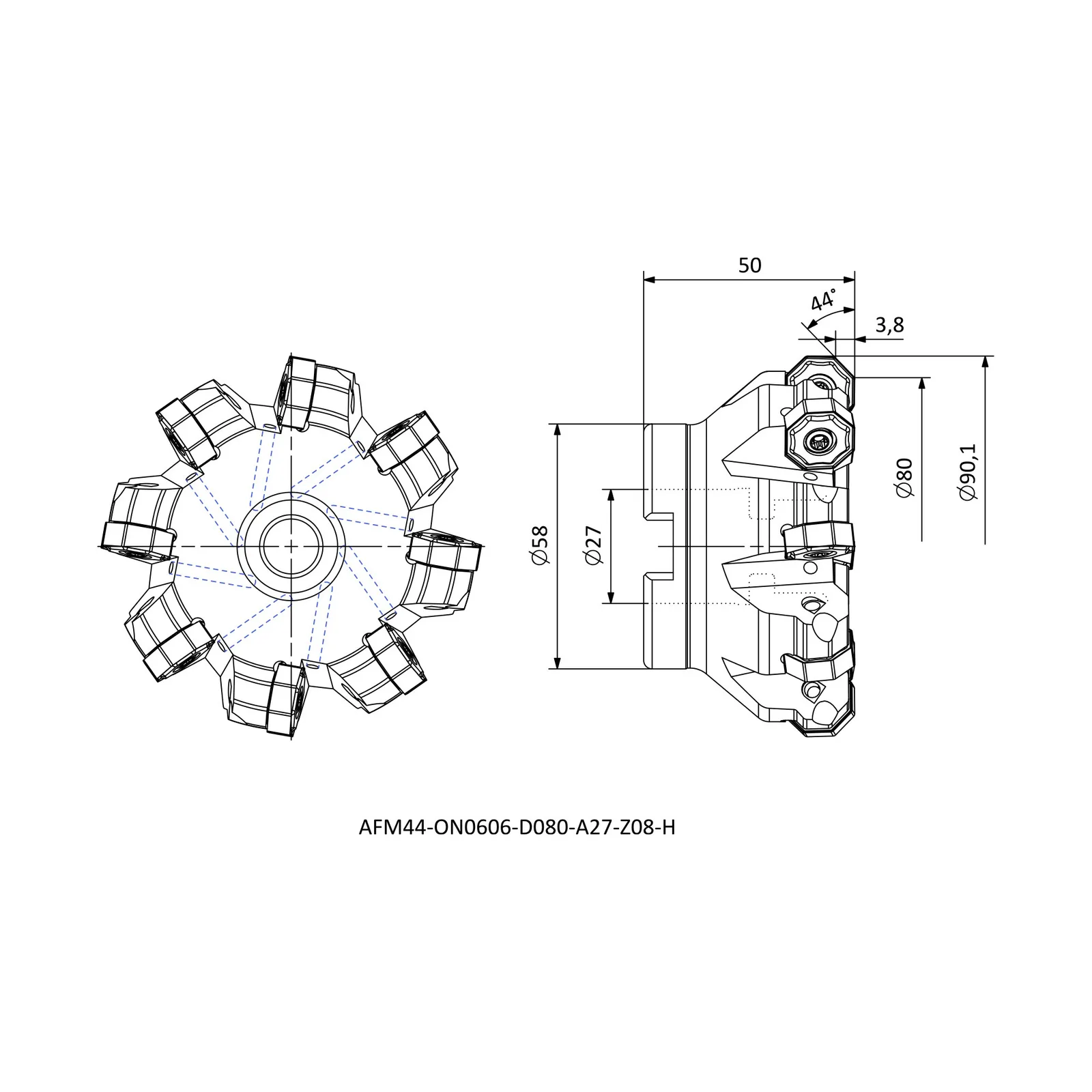

Specifications — AFM44-ON0606-D080-A27-Z08-H
| Insert Code | Insert designation | ONHX 0606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 8 |
| APMX | Depth of cut, maximum (mm) | 3.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AFM44-ON
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM44-ON0606-D063-A22-Z05-H | R | 63 | 22 | 40 |
| AFM44-ON0606-D080-B27-Z06-H | R | 80 | 27 | 50 |
| AFM44-ON0606-D100-B32-Z07-H | R | 100 | 32 | 50 |
| AFM44-ON0606-D125-B40-Z08-H | R | 125 | 40 | 63 |
| AFM44-ON0606-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM44-ON0606-D080-A27-Z08-H | R | 80 | 27 | 50 |
| AFM44-ON0606-D100-A32-Z10-H | R | 100 | 32 | 50 |
