Tool Holders / Face Milling (ARBOR Type)

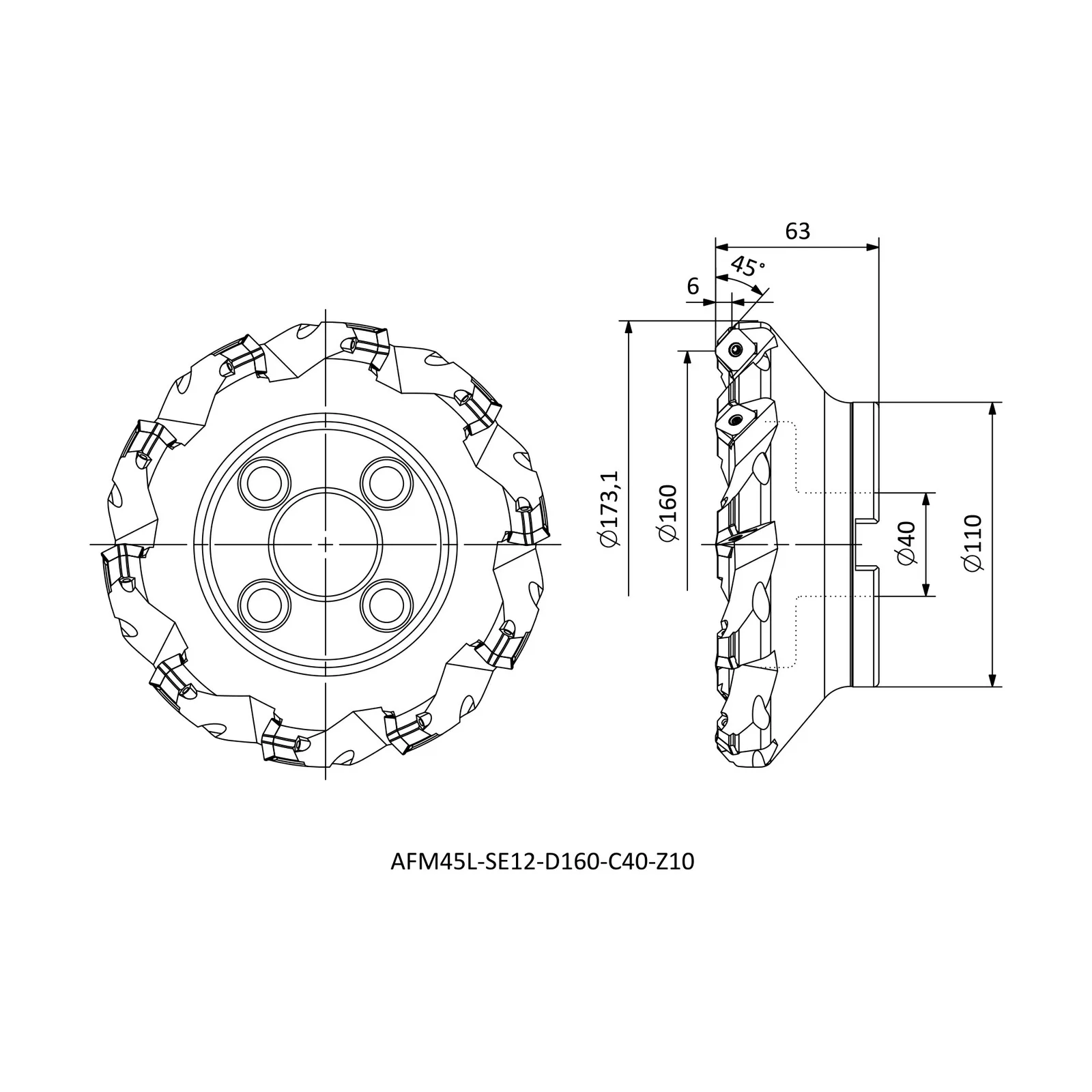

AFM45L-SE12-D160-C40-Z10
AFM45(L)-SE series · see all 12 sizes
Insert compatibility
This size is built for the insert designation SE.. 12T3 (as listed in the catalogue data).
Specifications — AFM45L-SE12-D160-C40-Z10
| Insert Code | Insert designation | SE.. 12T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 160 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 10 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in AFM45(L)-SE
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM45-SE12-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM45L-SE12-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM45-SE12-D063-A22-Z05-H | R | 63 | 22 | 40 |
| AFM45L-SE12-D063-A22-Z05-H | R | 63 | 22 | 40 |
| AFM45-SE12-D080-A27-Z06-H | R | 80 | 27 | 50 |
| AFM45L-SE12-D080-A27-Z06-H | R | 80 | 27 | 50 |
| AFM45-SE12-D100-A32-Z07-H | R | 100 | 32 | 50 |
| AFM45-SE12-D125-B40-Z08 | R | 125 | 40 | 63 |
| AFM45-SE12-D160-C40-Z10 | R | 160 | 40 | 63 |
| AFM45L-SE12-D160-C40-Z10 | R | 160 | 40 | 63 |
| AFM45-SE12-D200-C60-Z12 | R | 200 | 60 | 63 |
| AFM45L-SE12-D200-C60-Z12 | R | 200 | 60 | 63 |
