Tool Holders / Face Milling (ARBOR Type)
AFM45-SA1706-D100-A32-Z07-H
AFM45-SA series · see all 3 sizes
Insert compatibility
This size is built for the insert designation SAKU 1706 (as listed in the catalogue data).

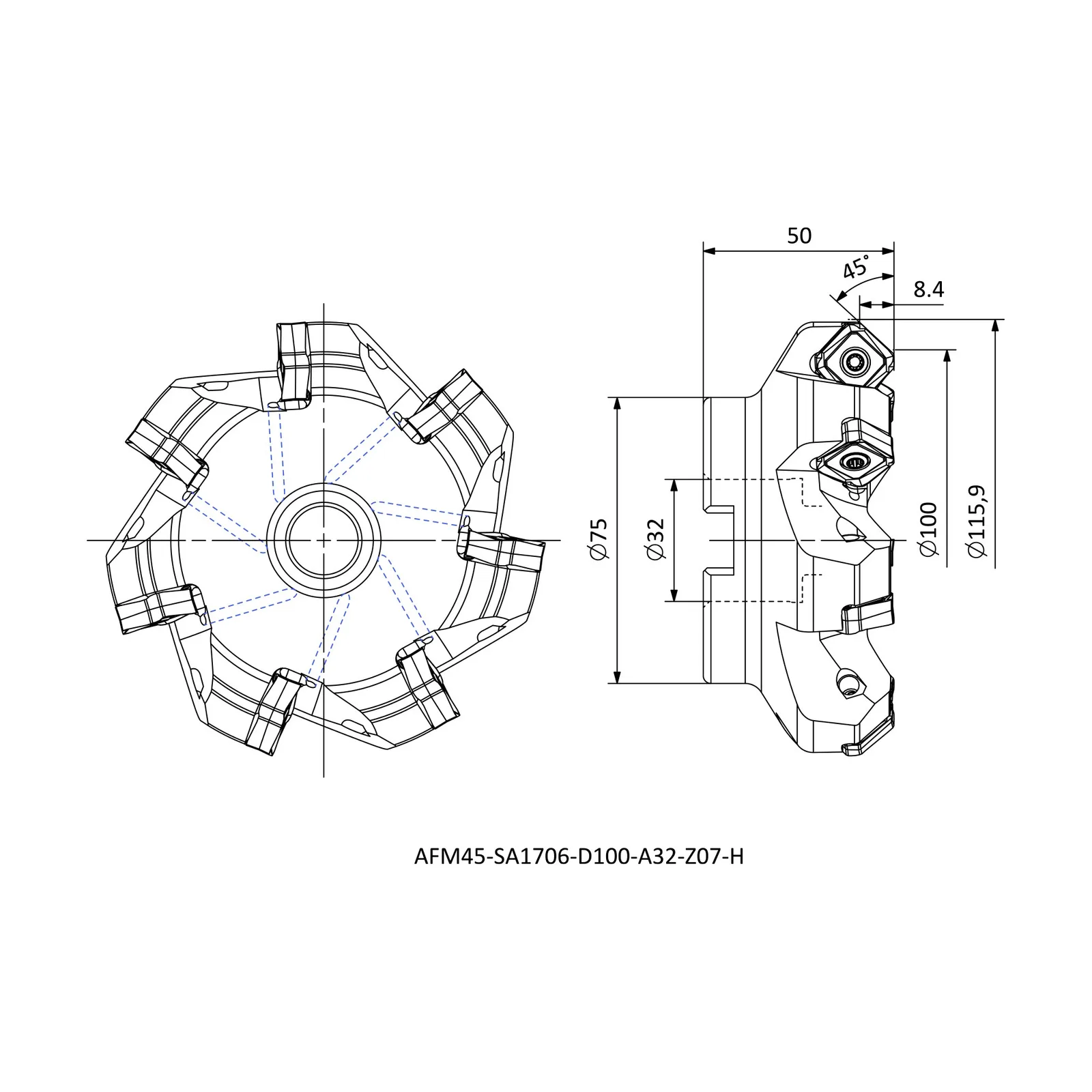

Specifications — AFM45-SA1706-D100-A32-Z07-H
| Insert Code | Insert designation | SAKU 1706.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 100 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 8.4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AFM45-SA
