Tool Holders / Face Milling (ARBOR Type)

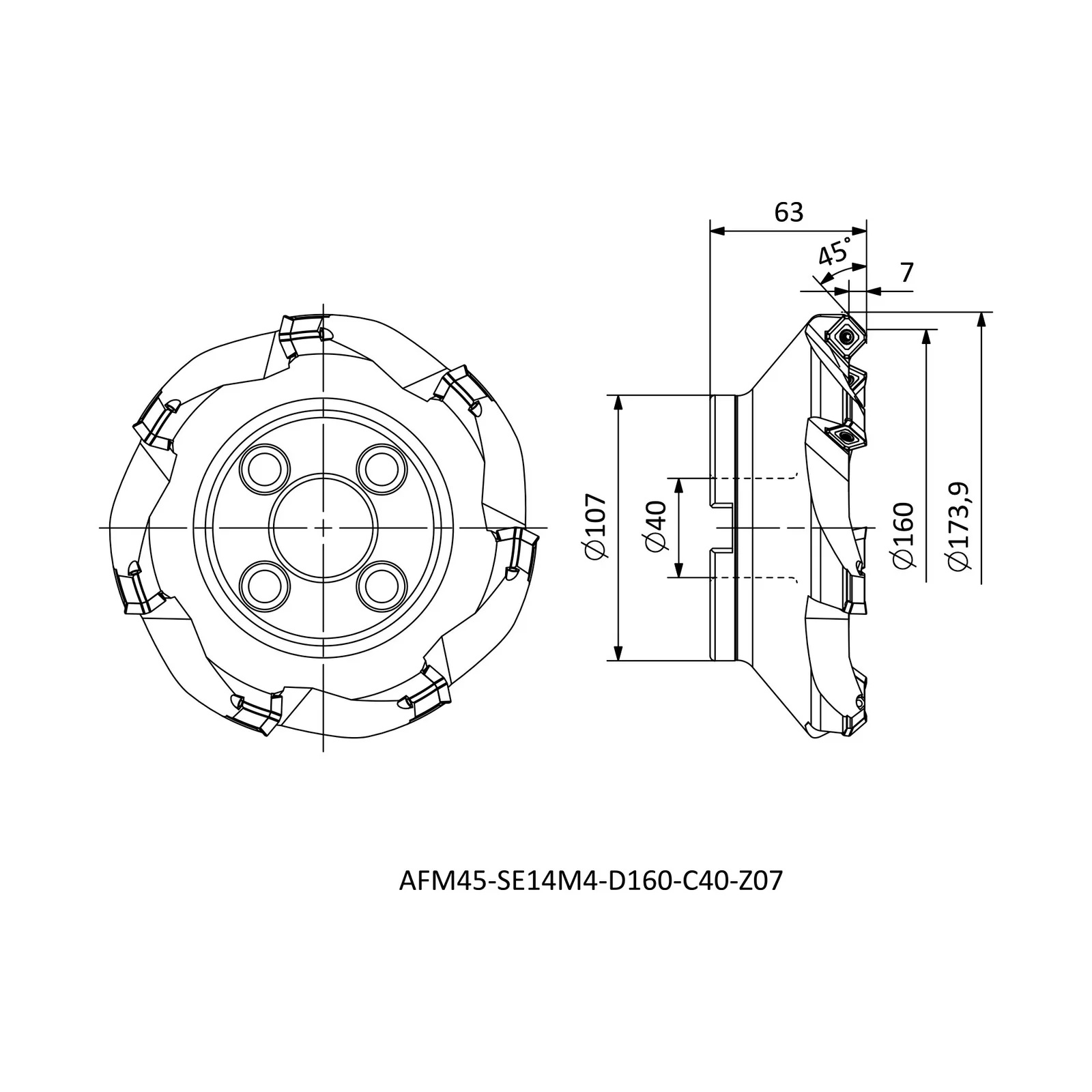

AFM45-SE14M4-D160-C40-Z07
AFM45-SE series · see all 5 sizes
Insert compatibility
This size is built for the insert designation SE.. 14M4 (as listed in the catalogue data).
Specifications — AFM45-SE14M4-D160-C40-Z07
| Insert Code | Insert designation | SE.. 14M4.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 160 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFM45-SE
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM45-SE14M4-D063-A22-Z04-H | R | 63 | 22 | 40 |
| AFM45-SE14M4-D080-A27-Z05-H | R | 80 | 27 | 50 |
| AFM45-SE14M4-D100-A32-Z05-H | R | 100 | 32 | 50 |
| AFM45-SE14M4-D125-B40-Z06 | R | 125 | 40 | 63 |
| AFM45-SE14M4-D160-C40-Z07 | R | 160 | 40 | 63 |
