Tool Holders / Face Milling (ARBOR Type)
AFM45CL-SN1206-D050-A22-Z05-H
AFM45C(L)-SN series · see all 18 sizes
Insert compatibility
This size is built for the insert designation SN.. 1206 (as listed in the catalogue data).

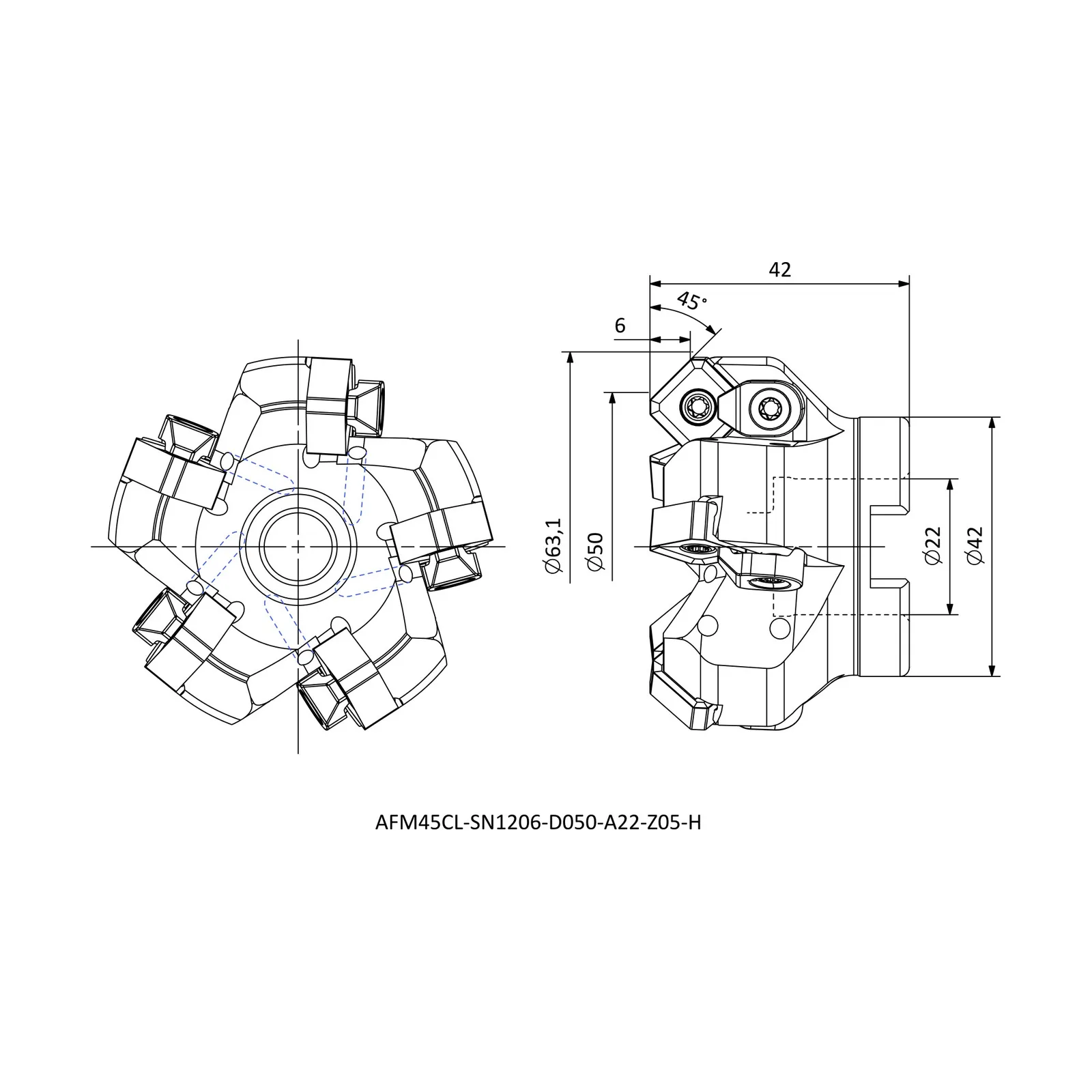

Specifications — AFM45CL-SN1206-D050-A22-Z05-H
| Insert Code | Insert designation | SN.. 1206.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 50 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 42 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AFM45C(L)-SN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM45CL-SN1206-D160-C40-Z12 | R | 160 | 40 | 65 |
| AFM45CL-SN1206-D063-A22-Z07-H | R | 63 | 22 | 42 |
| AFM45C-SN1206-D063-A22-Z07-H | R | 63 | 22 | 42 |
| AFM45C-SN1206-D050-A22-Z05-H | R | 50 | 22 | 42 |
| AFM45C-SN1206-D080-A27-Z07-H | R | 80 | 27 | 52 |
| AFM45C-SN1206-D050-A22-Z04-H | R | 50 | 22 | 42 |
| AFM45C-SN1206-D080-A27-Z08-H | R | 80 | 27 | 52 |
| AFM45C-SN1206-D100-A32-Z10-H | R | 100 | 32 | 52 |
| AFM45CL-SN1206-D200-C60-Z14 | R | 200 | 60 | 65 |
| AFM45C-SN1206-D200-C60-Z14 | R | 200 | 60 | 65 |
| AFM45C-SN1206-D100-A32-Z08-H | R | 100 | 32 | 52 |
| AFM45C-SN1206-D125-B40-Z11 | R | 125 | 40 | 65 |
| AFM45CL-SN1206-D100-A32-Z10-H | R | 100 | 32 | 52 |
| AFM45CL-SN1206-D125-B40-Z11 | R | 125 | 40 | 65 |
| AFM45CL-SN1206-D050-A22-Z05-H | R | 50 | 22 | 42 |
| AFM45CL-SN1206-D080-A27-Z08-H | R | 80 | 27 | 52 |
| AFM45C-SN1206-D063-A22-Z06-H | R | 63 | 22 | 42 |
| AFM45C-SN1206-D160-C40-Z12 | R | 160 | 40 | 65 |
