Tool Holders / Face Milling (ARBOR Type)
AFM67-PN1105-D160-C40-Z14
AFM67-PN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation PNEG 1105 (as listed in the catalogue data).

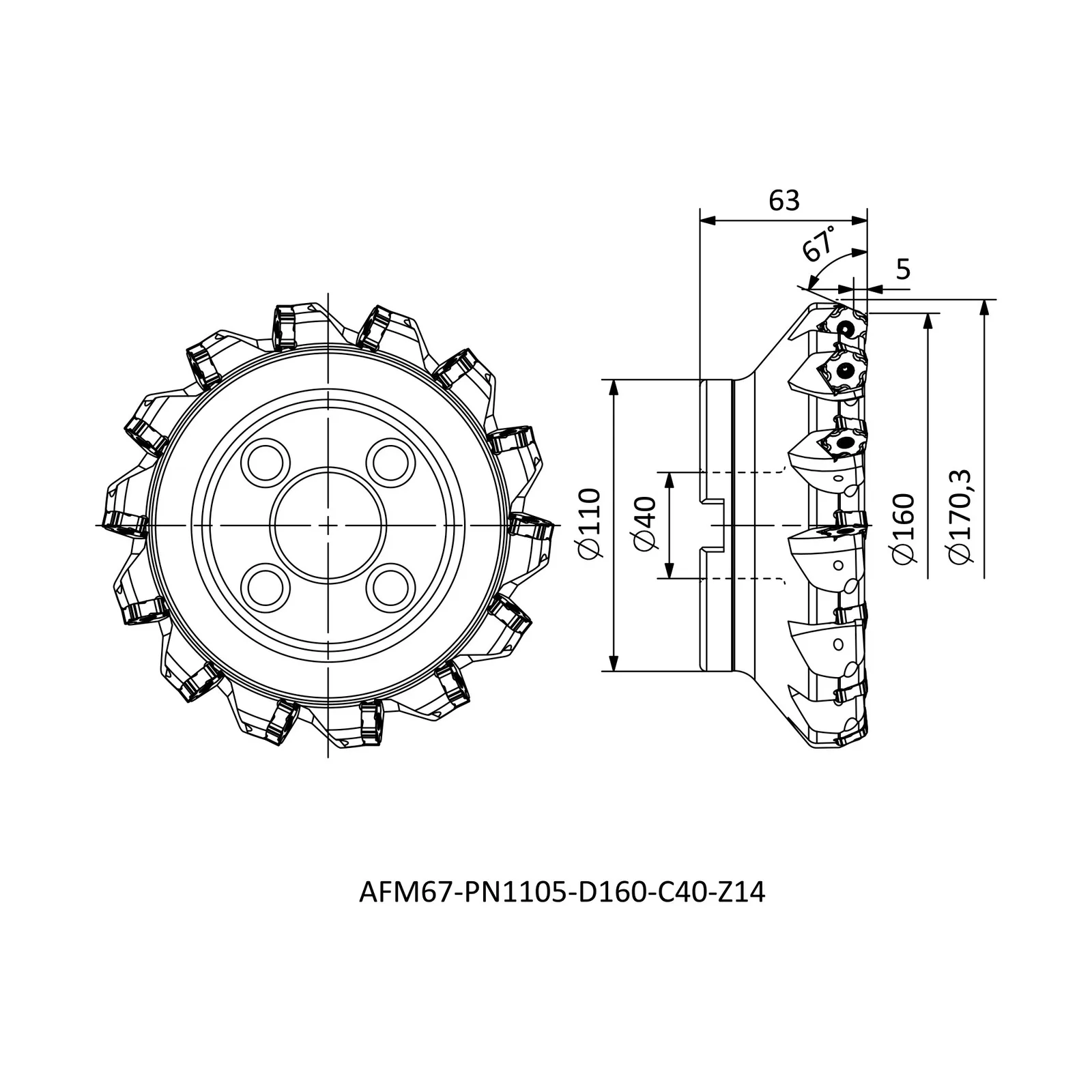

Specifications — AFM67-PN1105-D160-C40-Z14
| Insert Code | Insert designation | PNEG 1105.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 160 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 14 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AFM67-PN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM67-PN1105-D050-A22-Z05 | R | 50 | 22 | 50 |
| AFM67-PN1105-D063-A22-Z06 | R | 63 | 22 | 50 |
| AFM67-PN1105-D080-A27-Z08 | R | 80 | 27 | 50 |
| AFM67-PN1105-D100-B32-Z10 | R | 100 | 32 | 50 |
| AFM67-PN1105-D125-B40-Z12 | R | 125 | 40 | 63 |
| AFM67-PN1105-D160-C40-Z14 | R | 160 | 40 | 63 |
