Tool Holders / Face Milling (ARBOR Type)

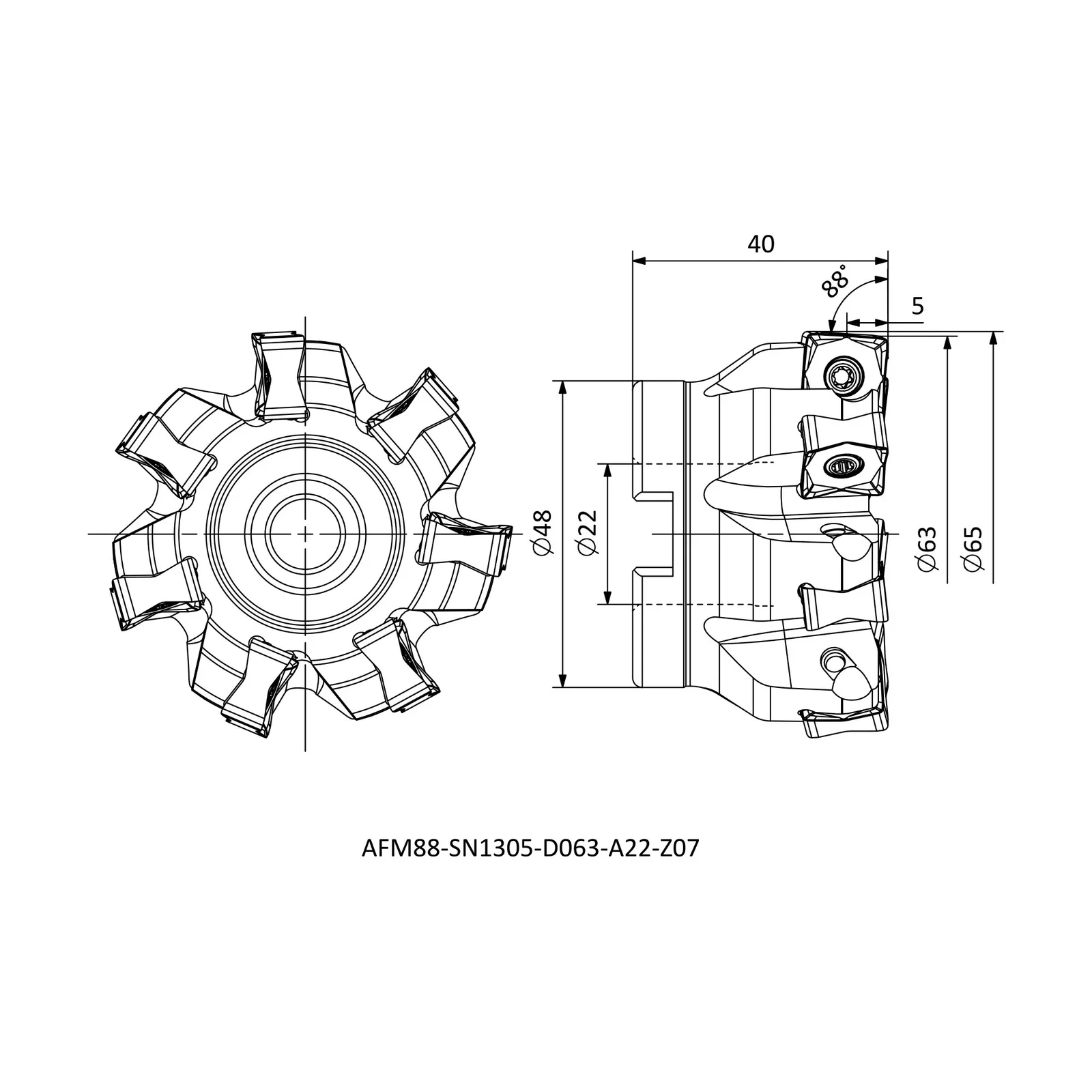

AFM88-SN1305-D063-A22-Z07
AFM88-SN series · see all 10 sizes
Insert compatibility
This size is built for the insert designation SNMU 1305 (as listed in the catalogue data).
Specifications — AFM88-SN1305-D063-A22-Z07
| Insert Code | Insert designation | SNMU 1305.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in AFM88-SN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM88-SN1305-D050-A22-Z04 | R | 50 | 22 | 40 |
| AFM88-SN1305-D050-A22-Z05 | R | 50 | 22 | 40 |
| AFM88-SN1305-D063-A22-Z05 | R | 63 | 22 | 40 |
| AFM88-SN1305-D063-A22-Z07 | R | 63 | 22 | 40 |
| AFM88L-SN1305-D063-A22-Z07 | R | 63 | 22 | 40 |
| AFM88-SN1305-D080-A27-Z06 | R | 80 | 27 | 50 |
| AFM88-SN1305-D080-A27-Z09 | R | 80 | 27 | 50 |
| AFM88-SN1305-D100-A32-Z07 | R | 100 | 32 | 50 |
| AFM88-SN1305-D100-A32-Z11 | R | 100 | 32 | 50 |
| AFM88-SN1305-D125-B40-Z13 | R | 125 | 40 | 63 |
