Tool Holders / Face Milling (ARBOR Type)
AFM88-SN1306-D063-A22-Z06-H
AFM88-SN series · see all 3 sizes
Insert compatibility
This size is built for the insert designation SNGX 1306 (as listed in the catalogue data).

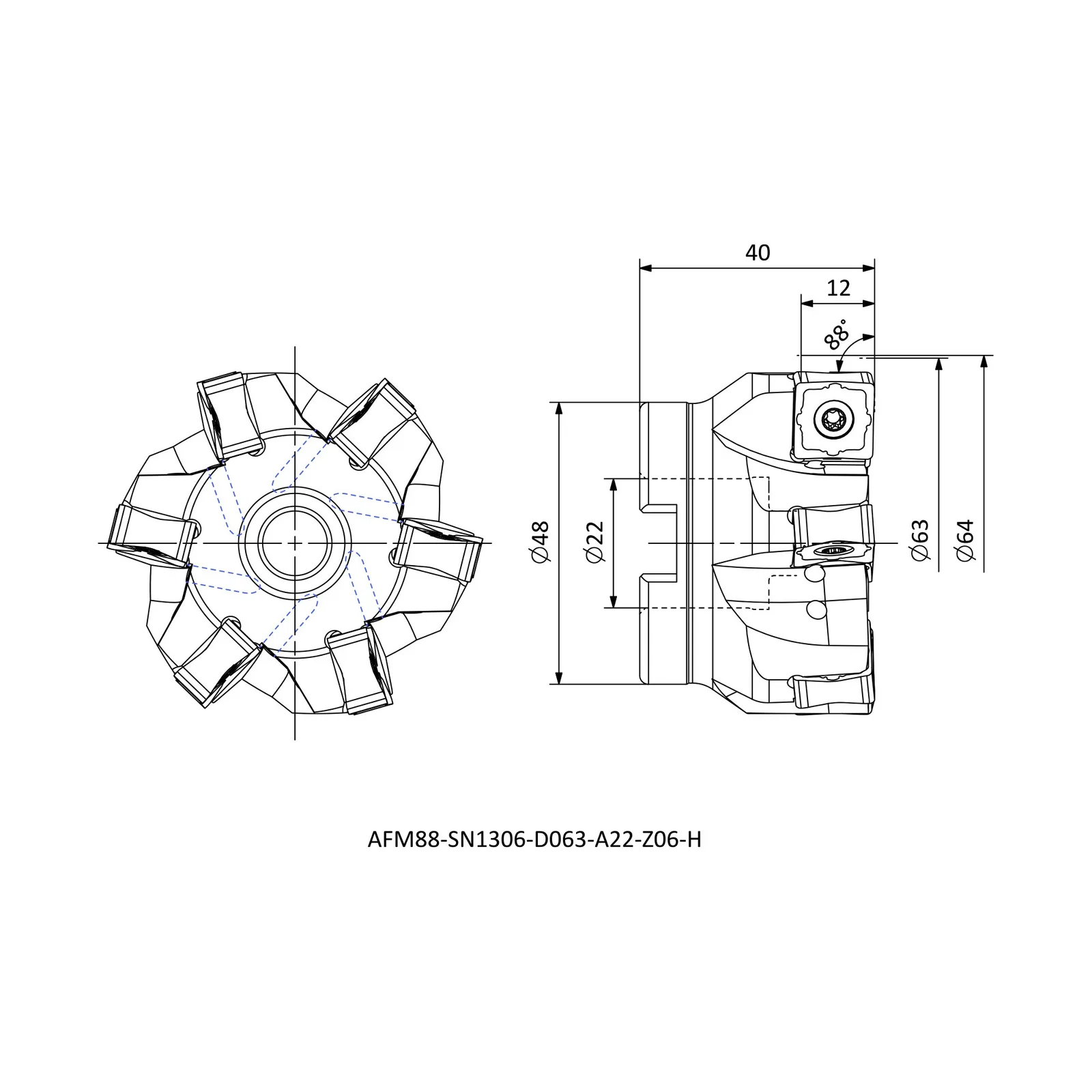

Specifications — AFM88-SN1306-D063-A22-Z06-H
| Insert Code | Insert designation | SNGX 1306.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AFM88-SN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM88-SN1306-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM88-SN1306-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM88-SN1306-D080-A27-Z07-H | R | 80 | 27 | 50 |
