Tool Holders / Face Milling (ARBOR Type)
AFM90-AD10T3-D050-A22-Z07-H
AFM90-AD series · see all 2 sizes
Insert compatibility
This size is built for the insert designation ADMT 10T3 (as listed in the catalogue data).

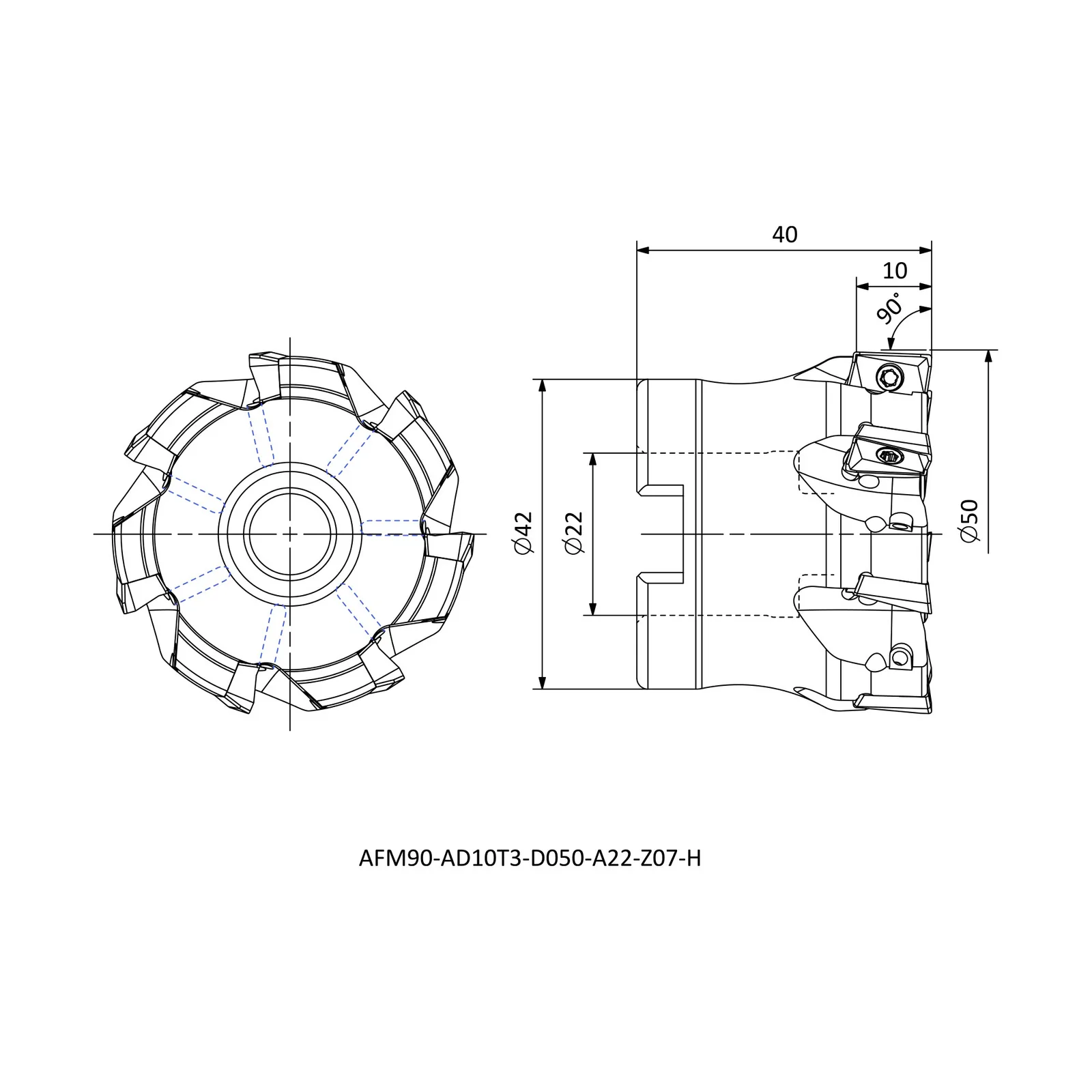

Specifications — AFM90-AD10T3-D050-A22-Z07-H
| Insert Code | Insert designation | ADMT 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 50 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AFM90-AD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-AD10T3-D040-A16-Z06-H | R | 40 | 16 | 40 |
| AFM90-AD10T3-D050-A22-Z07-H | R | 50 | 22 | 40 |
