Tool Holders / Face Milling (ARBOR Type)
AFM90-AP10-D050-A22-Z07-H
AFM90-AP series · see all 18 sizes
Insert compatibility
This size is built for the insert designation AP.. 1003 (as listed in the catalogue data).

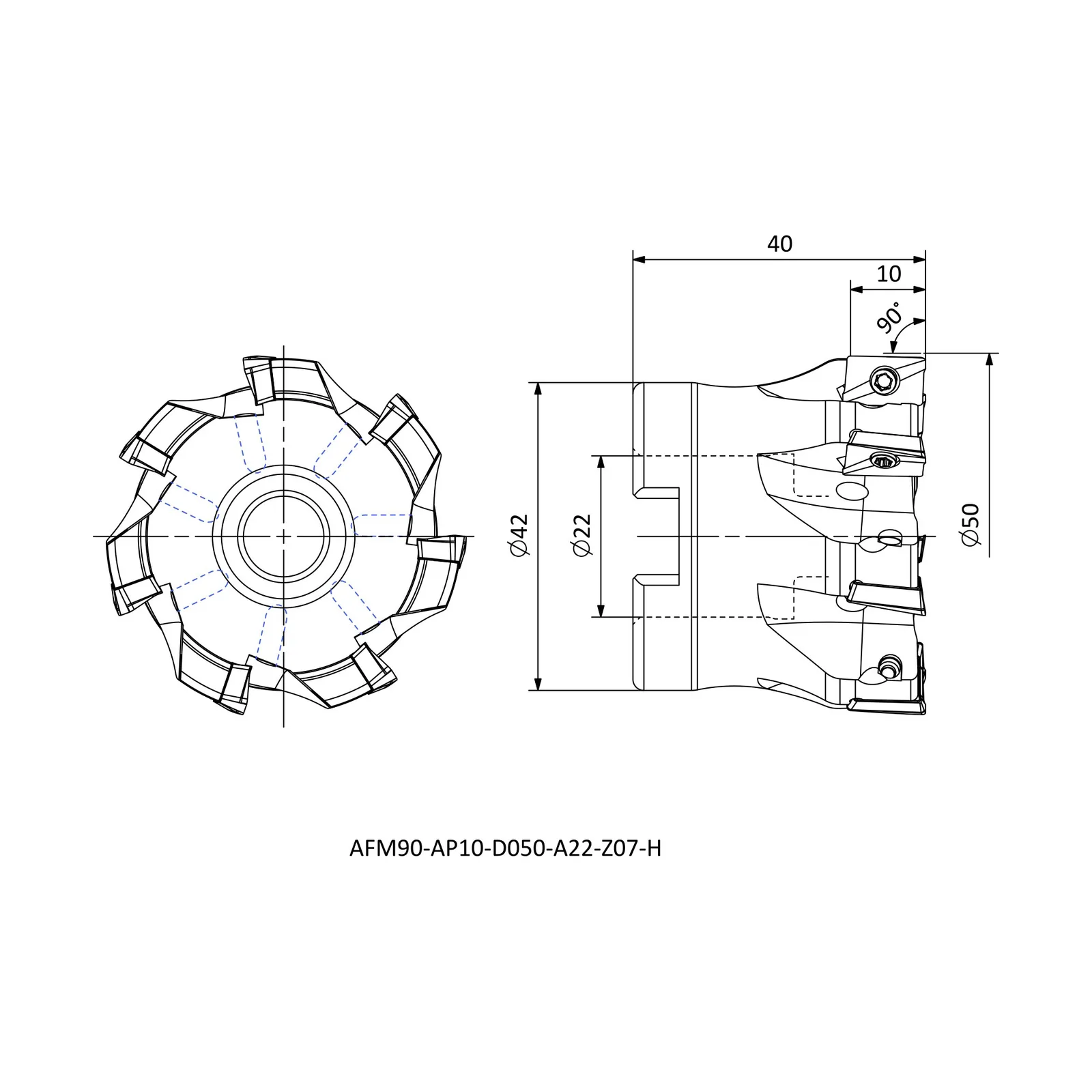

Specifications — AFM90-AP10-D050-A22-Z07-H
| Insert Code | Insert designation | AP.. 1003.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 50 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AFM90-AP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-AP10-D040-A16-Z04-H | R | 40 | 16 | 35 |
| AFM90-AP10-D040-A16-Z05-H | R | 40 | 16 | 40 |
| AFM90-AP10-D050-A22-Z06-H | R | 50 | 22 | 40 |
| AFM90-AP10-D050-A22-Z07-H | R | 50 | 22 | 40 |
| AFM90-AP10-D063-A22-Z06 | R | 63 | 22 | 40 |
| AFM90-AP10-D063-A22-Z07-H | R | 63 | 22 | 40 |
| AFM90-AP10-D080-A27-Z08-H | R | 80 | 27 | 50 |
| AFM90-AP10-D100-A32-Z09-H | R | 100 | 32 | 50 |
| AFM90-AP16-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-AP16-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-AP10-D063-A22-Z09 | R | 63 | 22 | 40 |
| AFM90-AP16-D040-A16-Z04-H | R | 40 | 16 | 40 |
| AFM90-AP16-D125-B40-Z09 | R | 125 | 40 | 63 |
| AFM90-AP16-D160-C40-Z10 | R | 160 | 40 | 63 |
| AFM90-AP16-D052-A22-Z05-H | R | 52 | 22 | 40 |
| AFM90-AP16-D200-C60-Z12 | R | 200 | 60 | 63 |
| AFM90-AP16-D100-A32-Z08-H | R | 100 | 32 | 50 |
| AFM90-AP16-D080-A27-Z07-H | R | 80 | 27 | 50 |
