Tool Holders / Face Milling (ARBOR Type)
AFM90-AX1705-D050-A22-Z05-H
AFM90-AX series · see all 9 sizes
Insert compatibility
This size is built for the insert designation AX.T 1705 (as listed in the catalogue data).

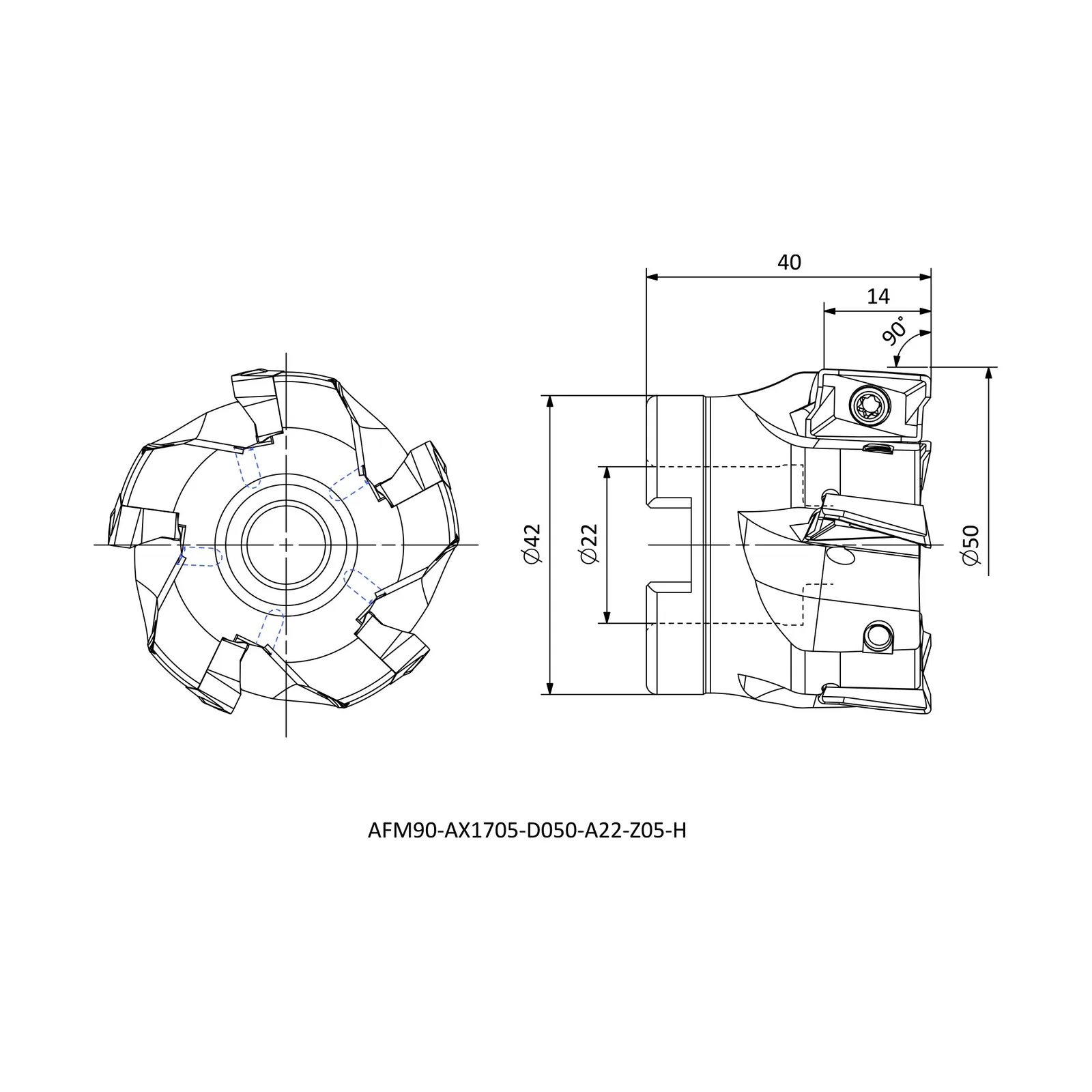

Specifications — AFM90-AX1705-D050-A22-Z05-H
| Insert Code | Insert designation | AX.T 1705.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 50 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 22 |
| APMX | Depth of cut, maximum (mm) | 14 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AFM90-AX
