Tool Holders / Face Milling (ARBOR Type)
AFM90-LN15Z-D063-A22-Z05
AFM90(L)-LN series · see all 5 sizes
Insert compatibility
This size is built for the insert designation LNKT 1506 (as listed in the catalogue data).

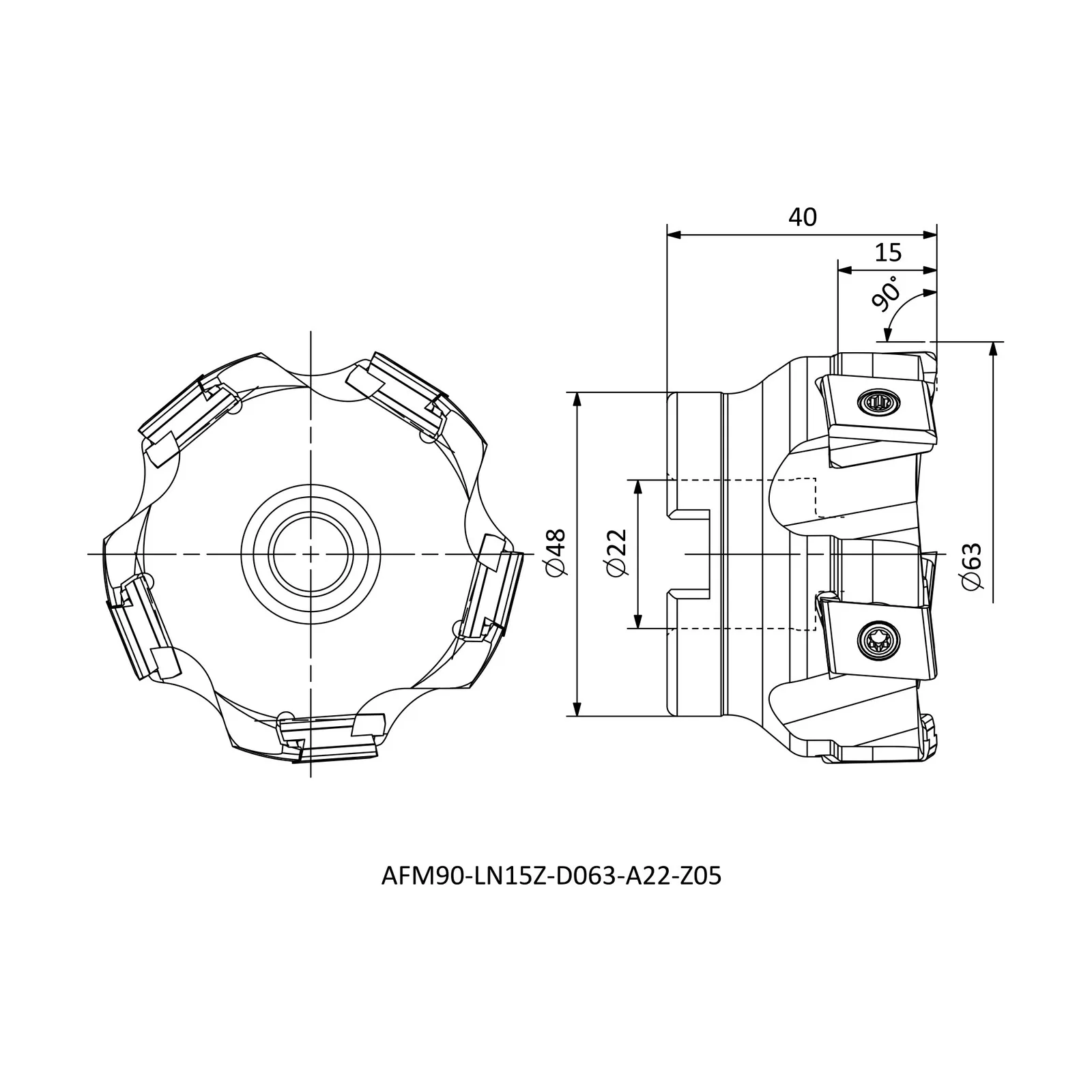

Specifications — AFM90-LN15Z-D063-A22-Z05
| Insert Code | Insert designation | LNKT 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFM90(L)-LN
