Tool Holders / Face Milling (ARBOR Type)
AFM90-LN15T6-D080-A27-Z07-H
AFM90-LN series · see all 3 sizes
Insert compatibility
This size is built for the insert designation LNGU 15T6 (as listed in the catalogue data).

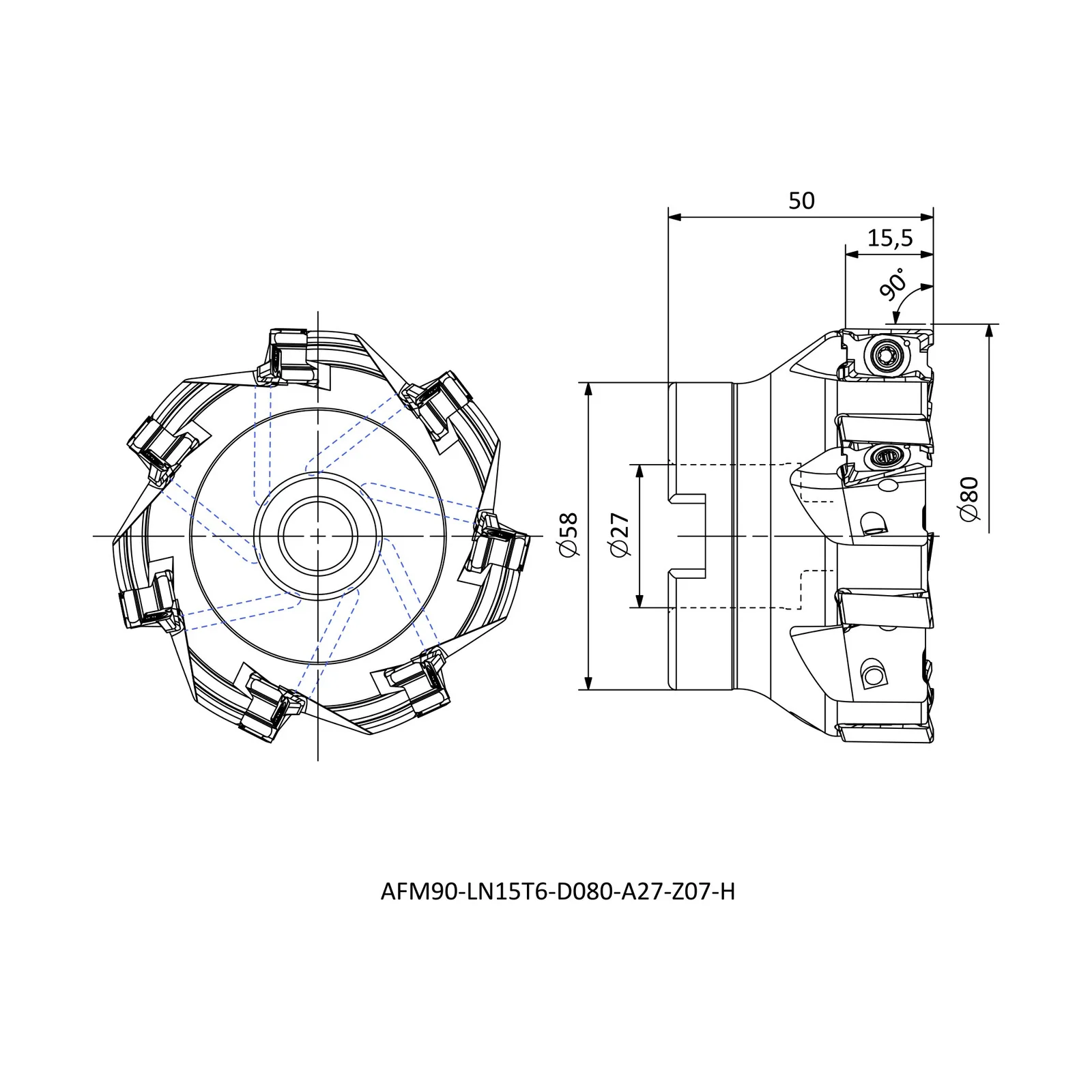

Specifications — AFM90-LN15T6-D080-A27-Z07-H
| Insert Code | Insert designation | LNGU 15T6.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 15.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
