Tool Holders / Face Milling (ARBOR Type)
AFM90-R290.12-D125-B40-Z11
AFM90-R290 series · see all 5 sizes
Insert compatibility
This size is built for the insert designation R 290 (as listed in the catalogue data).

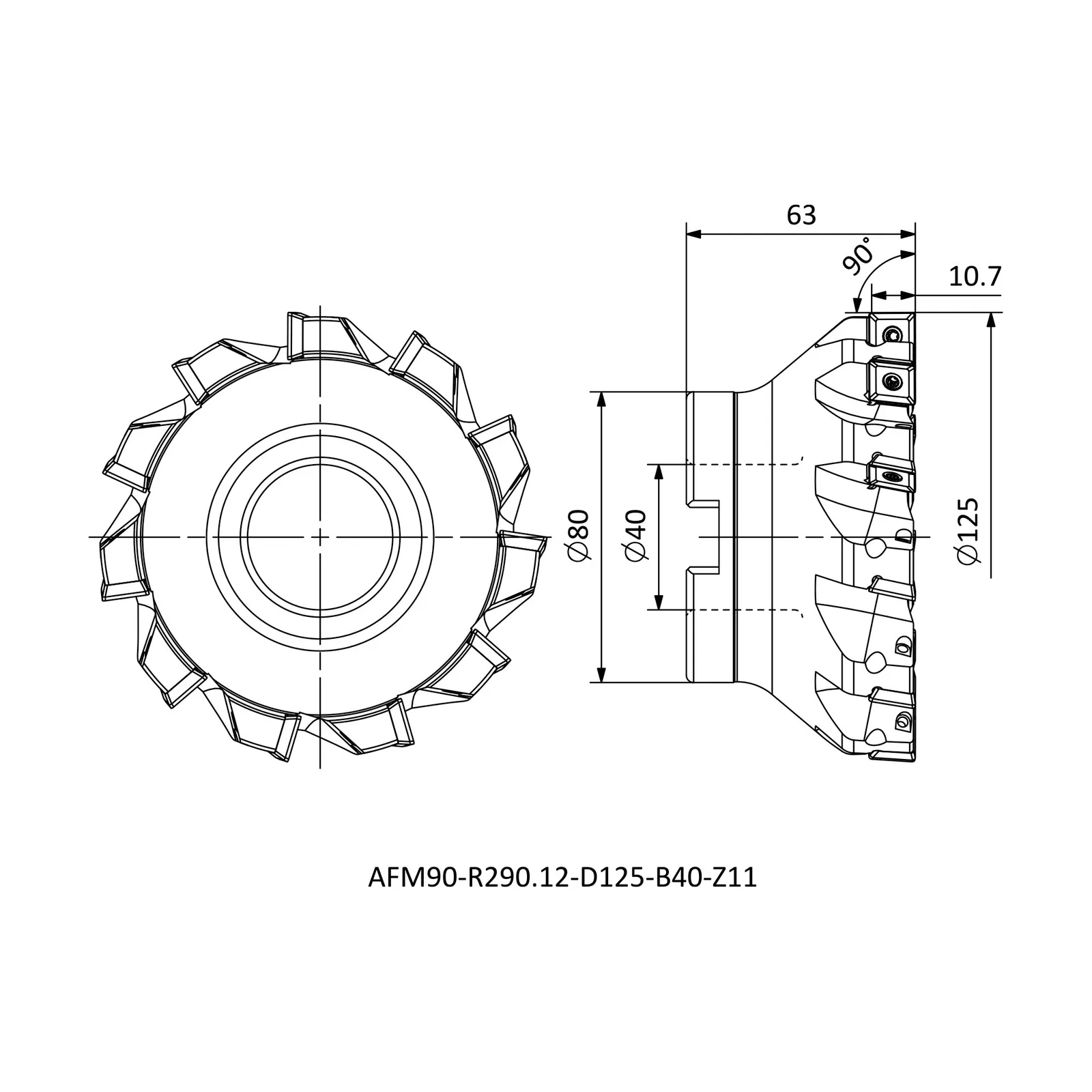

Specifications — AFM90-R290.12-D125-B40-Z11
| Insert Code | Insert designation | R290-12T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 125 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 11 |
| APMX | Depth of cut, maximum (mm) | 10.7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFM90-R290
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-R290.12-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM90-R290.12-D063-A22-Z05-H | R | 63 | 22 | 40 |
| AFM90-R290.12-D100-A32-Z09-H | R | 100 | 32 | 50 |
| AFM90-R290.12-D080-A27-Z07-H | R | 80 | 27 | 50 |
| AFM90-R290.12-D125-B40-Z11 | R | 125 | 40 | 63 |
