Tool Holders / Face Milling (ARBOR Type)

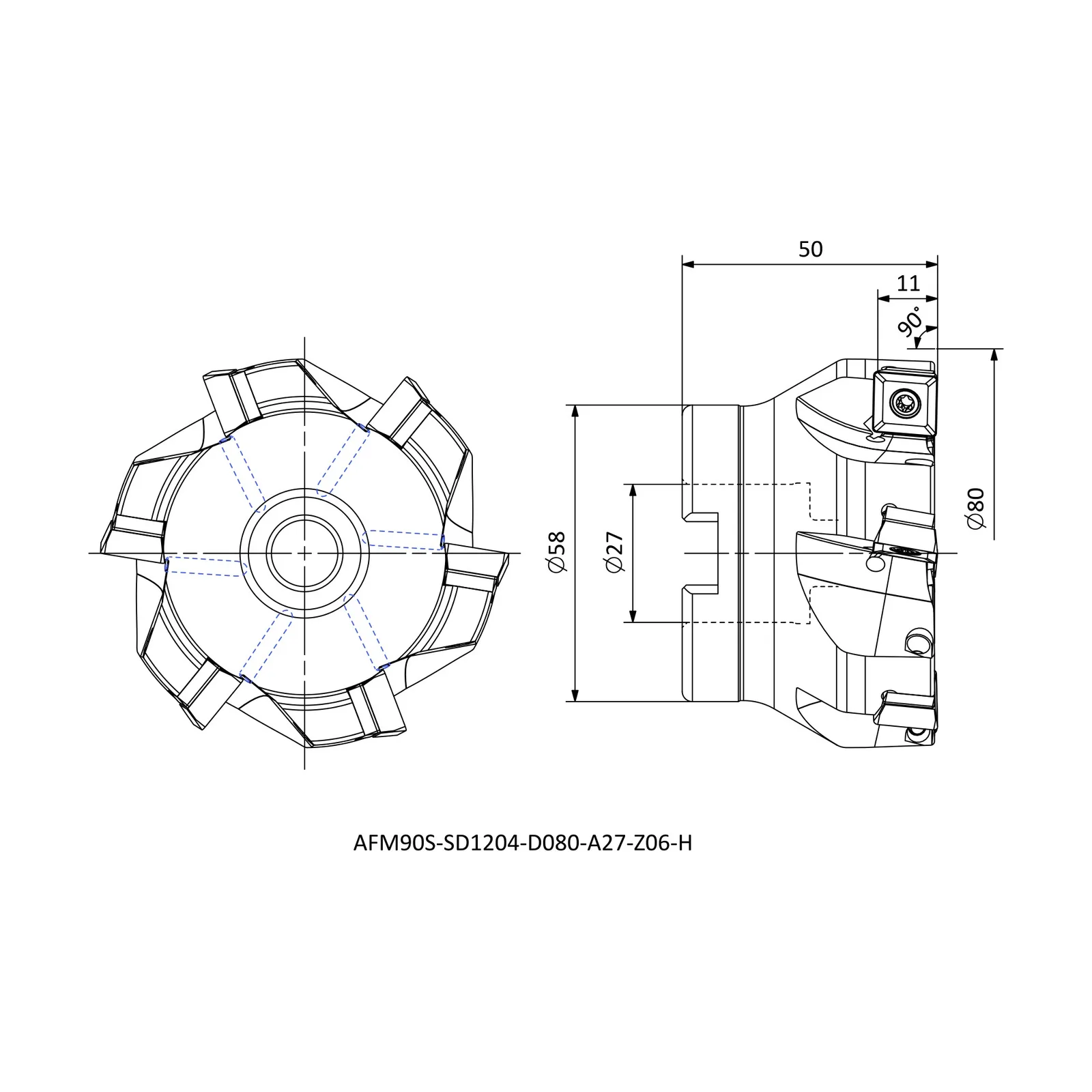

AFM90S-SD1204-D080-A27-Z06-H
AFM90(S)-SD series · see all 6 sizes
Insert compatibility
This size is built for the insert designation SDMT 1204 (as listed in the catalogue data).
Specifications — AFM90S-SD1204-D080-A27-Z06-H
| Insert Code | Insert designation | SDMT 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
