Tool Holders / Face Milling (ARBOR Type)
AFM90-TN2207-D125-B40-Z08
AFM90-TN series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TN.X 2207 (as listed in the catalogue data).

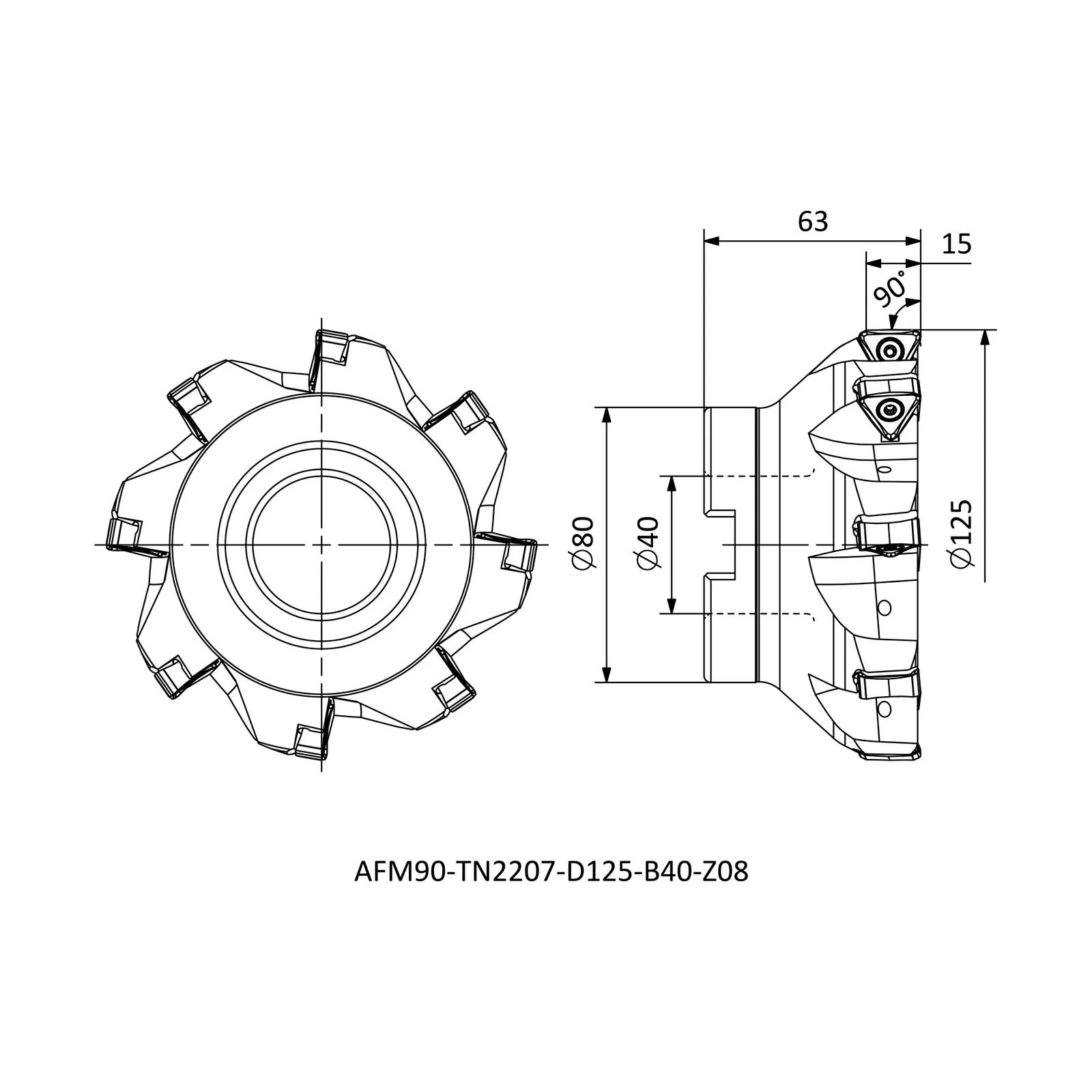

Specifications — AFM90-TN2207-D125-B40-Z08
| Insert Code | Insert designation | TN.X 2207.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 125 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 8 |
| APMX | Depth of cut, maximum (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AFM90-TN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-TN2207-D063-A22-Z04-H | R | 63 | 22 | 40 |
| AFM90-TN2207-D080-A27-Z05-H | R | 80 | 27 | 50 |
| AFM90-TN2207-D100-B32-Z06 | R | 100 | 32 | 50 |
| AFM90-TN2207-D125-B40-Z08 | R | 125 | 40 | 63 |
