Tool Holders / Face Milling (ARBOR Type)
AFM90-VC2205-D080-A27-Z05-H
AFM90-VC series · see all 4 sizes
Insert compatibility
This size is built for the insert designation VCKT 2205 (as listed in the catalogue data).

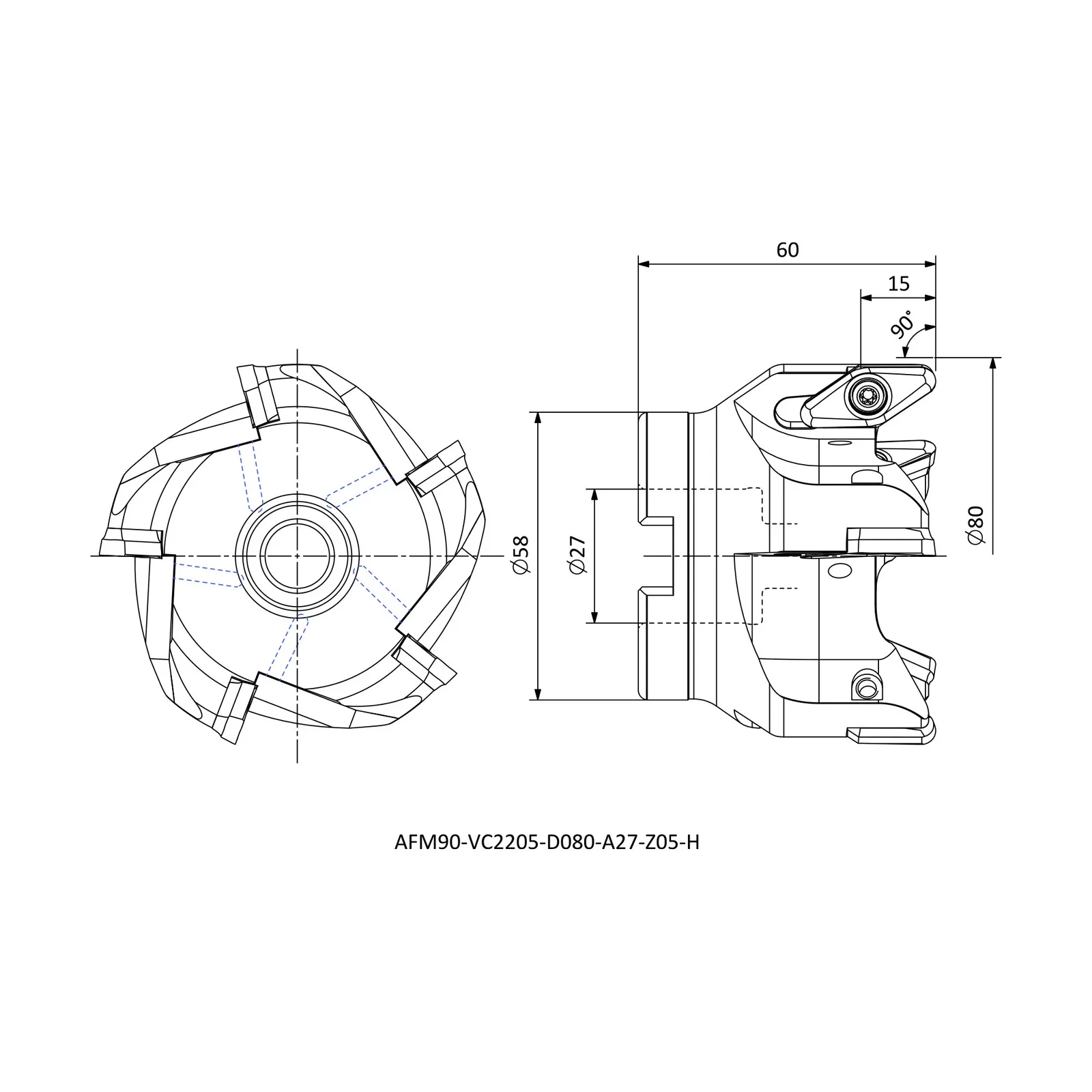

Specifications — AFM90-VC2205-D080-A27-Z05-H
| Insert Code | Insert designation | VCKT 2205.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 60 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AFM90-VC
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-VC2205-D050-A22-Z03-H | R | 50 | 33 | 55 |
| AFM90-VC2205-D063-A22-Z04-H | R | 63 | 33 | 55 |
| AFM90-VC2205-D066-A27-Z04-H | R | 66 | 27 | 55 |
| AFM90-VC2205-D080-A27-Z05-H | R | 80 | 27 | 60 |
