Tool Holders / Face Milling (ARBOR Type)

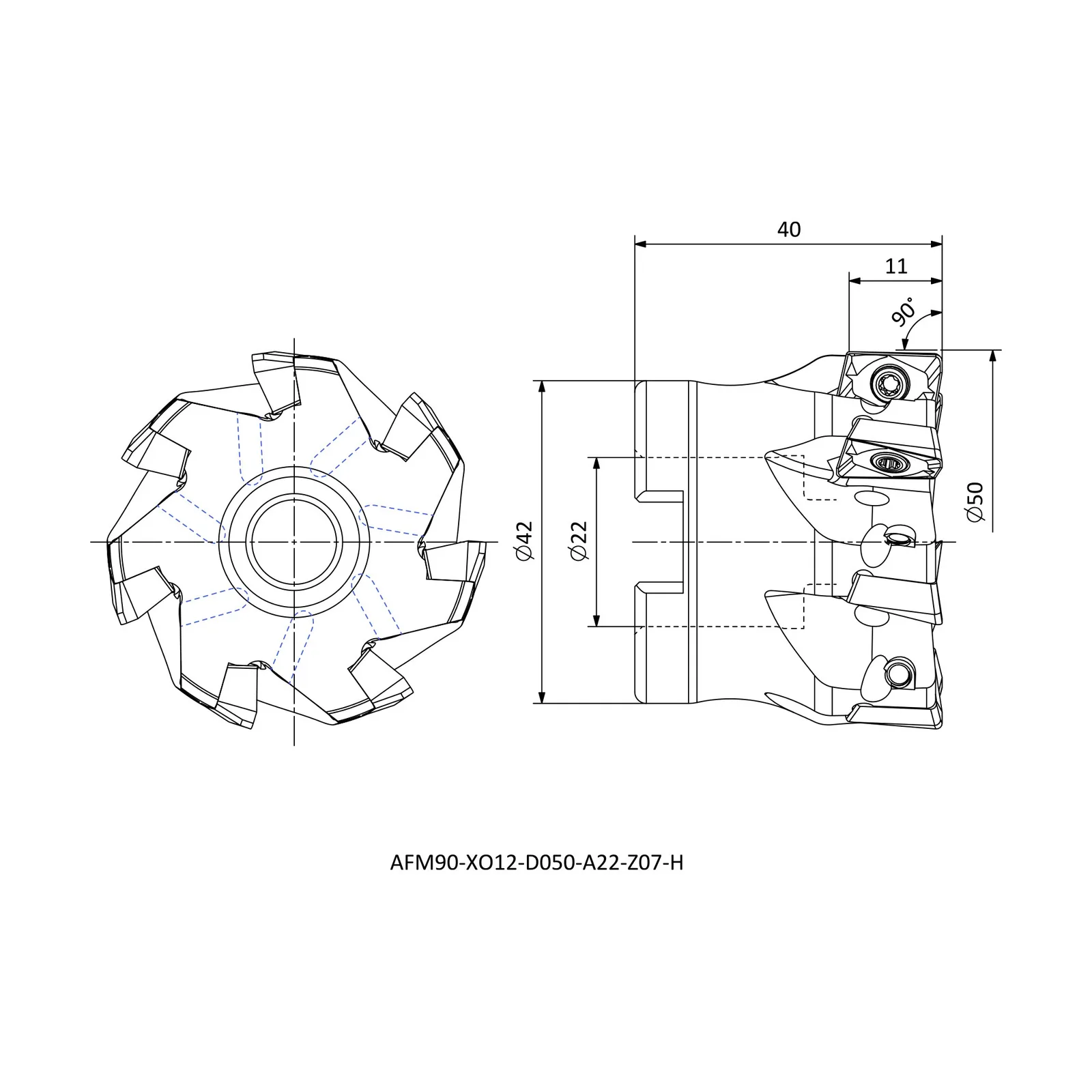

AFM90-XO12-D050-A22-Z07-H
AFM90-XO series · see all 5 sizes
Insert compatibility
This size is built for the insert designation XO.. 1204 (as listed in the catalogue data).
Specifications — AFM90-XO12-D050-A22-Z07-H
| Insert Code | Insert designation | XO.. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 50 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFM90-XO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-XO12-D040-A16-Z05-H | R | 40 | 16 | 40 |
| AFM90-XO12-D050-A22-Z07-H | R | 50 | 22 | 40 |
| AFM90-XO12-D063-A22-Z08-H | R | 63 | 22 | 40 |
| AFM90-XO12-D080-A27-Z10-H | R | 80 | 27 | 50 |
| AFM90-XO12-D100-A32-Z12-H | R | 100 | 32 | 50 |
