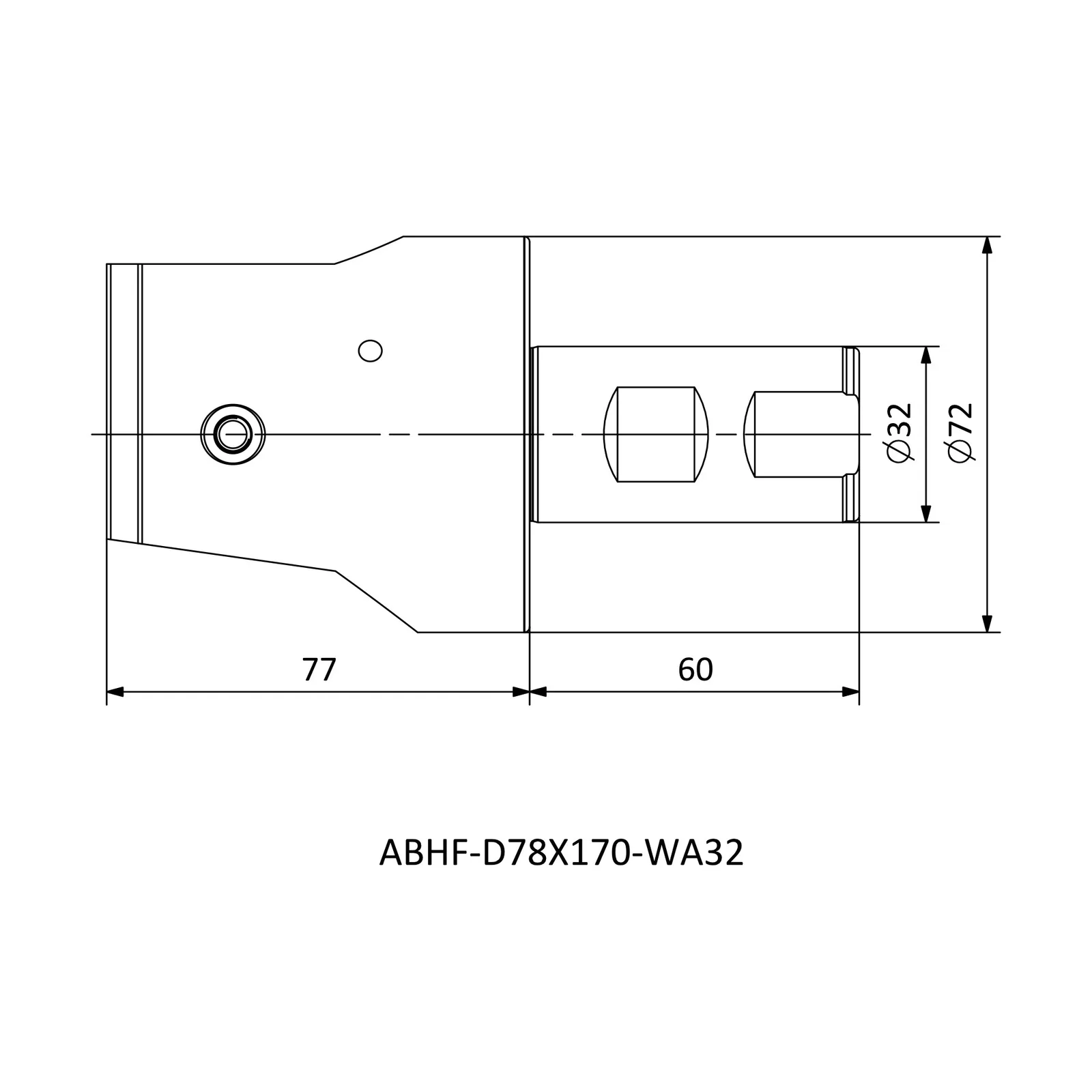

Specifications — ABHF-D78X170-WA32
| Product Direction | Cutting direction (hand) | R |
|---|---|---|
| DCON | Connection diameter (mm) | 32 |
| LPR | Protruding / projection length (mm) | 77 |
| LS | Shank length (mm) | 60 |
| DCN-DCX | Cutting diameter range, DCN-DCX (mm) | 78-170 |
| DCONMS | Connection diameter, machine side (mm) | 72 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in ABHF
| Product code | Cutting direction (hand) | Connection diameter (mm) | Protruding / projection length (mm) | Shank length (mm) |
|---|---|---|---|---|
| ABHF-D52X80-WA25 | R | 25 | 65 | 56 |
| ABHF-D29X40-WA16 | R | 16 | 46 | 40 |
| ABHF-D39X54-WA20 | R | 20 | 55 | 50 |
| ABHF-D78X170-WA32 | R | 32 | 77 | 60 |
