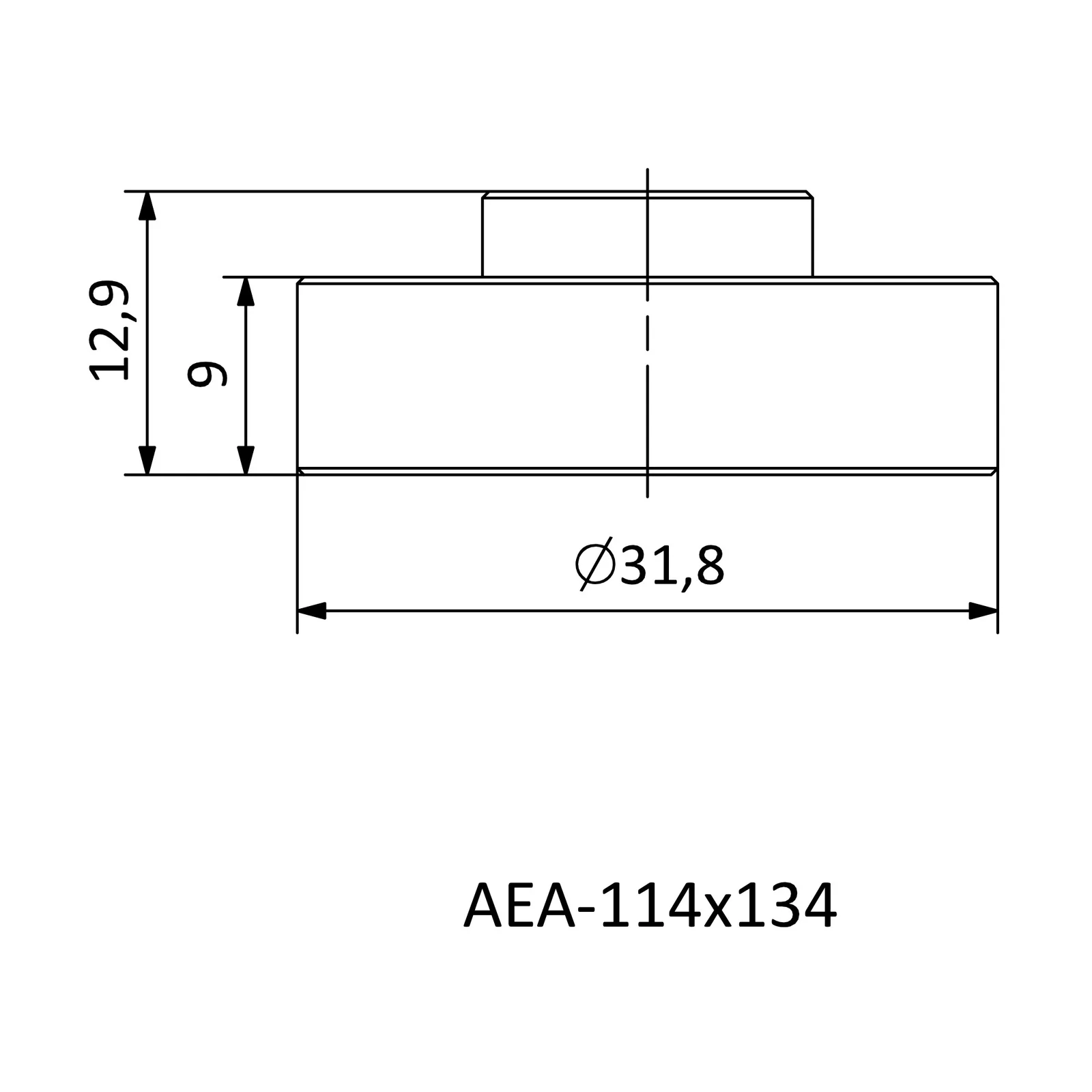

Specifications — AEA-114x134
| Product Direction | Cutting direction (hand) | R |
|---|---|---|
| DC | Cutting diameter (mm) | 31.8 |
| DCON | Connection diameter (mm) | 31.8 |
| LS | Shank length (mm) | 9 |
| LF | Functional length (mm) | 12.9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AEA
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Shank length (mm) |
|---|---|---|---|---|
| AEA-132x152 | R | 31.8 | 31.8 | 18 |
| AEA-114x134 | R | 31.8 | 31.8 | 9 |
