Tool Holders / Fine Boring Bars
SET-ABHF-D52X80-WA25
SET-ABHF series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TPGX 090202L (as listed in the catalogue data).

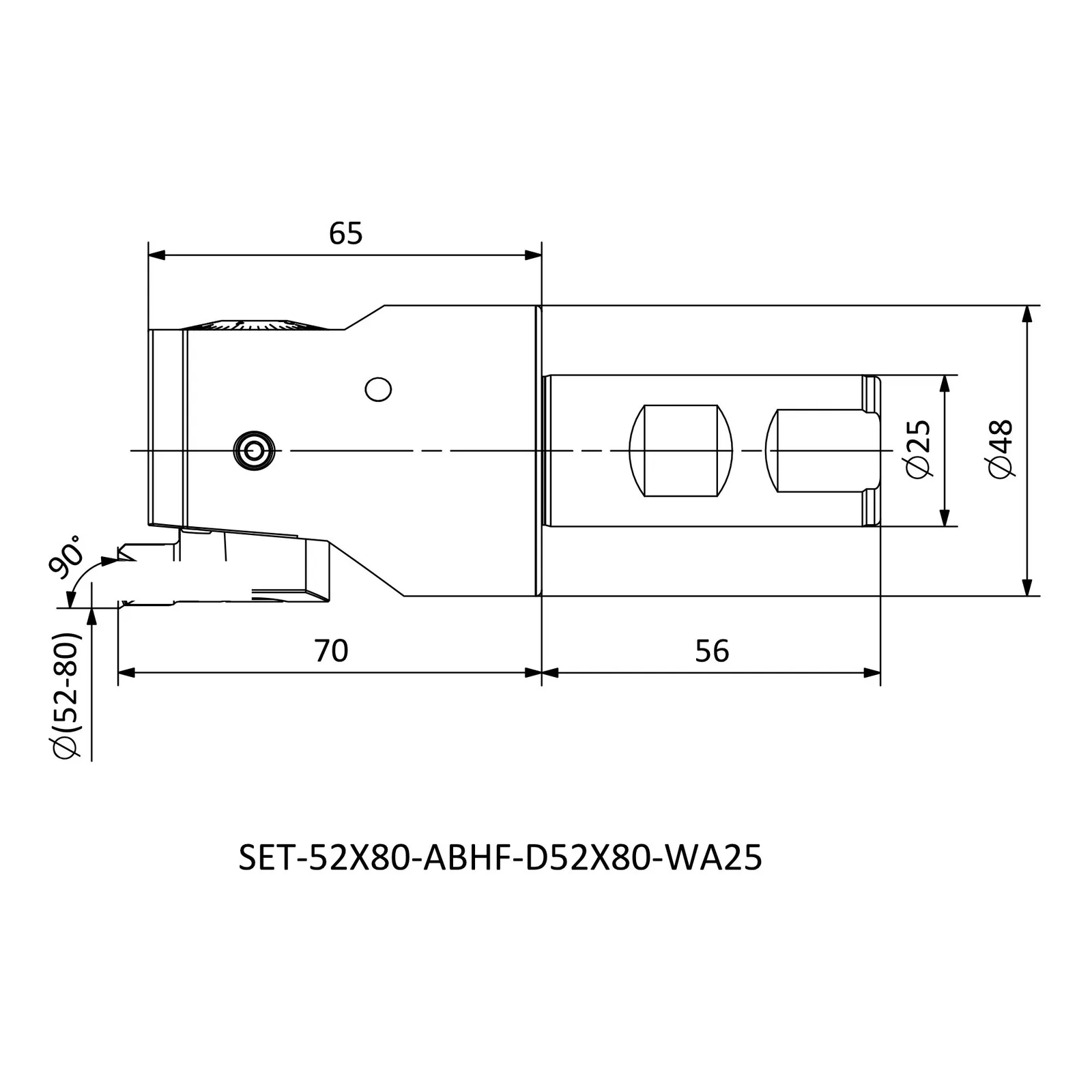

Specifications — SET-ABHF-D52X80-WA25
| Insert Code | Insert designation | TPGX 090202L |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LPR | Protruding / projection length (mm) | 65 |
| LS | Shank length (mm) | 56 |
| LF | Functional length (mm) | 70 |
| DCN-DCX | Cutting diameter range, DCN-DCX (mm) | 52-80 |
| DCONMS | Connection diameter, machine side (mm) | 48 |
| KAPR | Tool cutting edge angle (deg) | 0 |
| DC | Cutting diameter (mm) | 64 |
| DCX | Maximum diameter (mm) | 80 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in SET-ABHF
| Product code | Cutting direction (hand) | Connection diameter (mm) | Protruding / projection length (mm) | Shank length (mm) |
|---|---|---|---|---|
| SET-ABHF-D39X54-WA20 | R | 20 | 55 | 50 |
| SET-ABHF-D29X40-WA16 | R | 16 | 46 | 40 |
| SET-ABHF-D52X80-WA25 | R | 25 | 65 | 56 |
| SET-ABHF-D78X170-WA32 | R | 32 | 77 | 60 |
