Tool Holders / Fine Boring Bars
STFPR-D96x116
STFPR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation TPGX 090202L (as listed in the catalogue data).

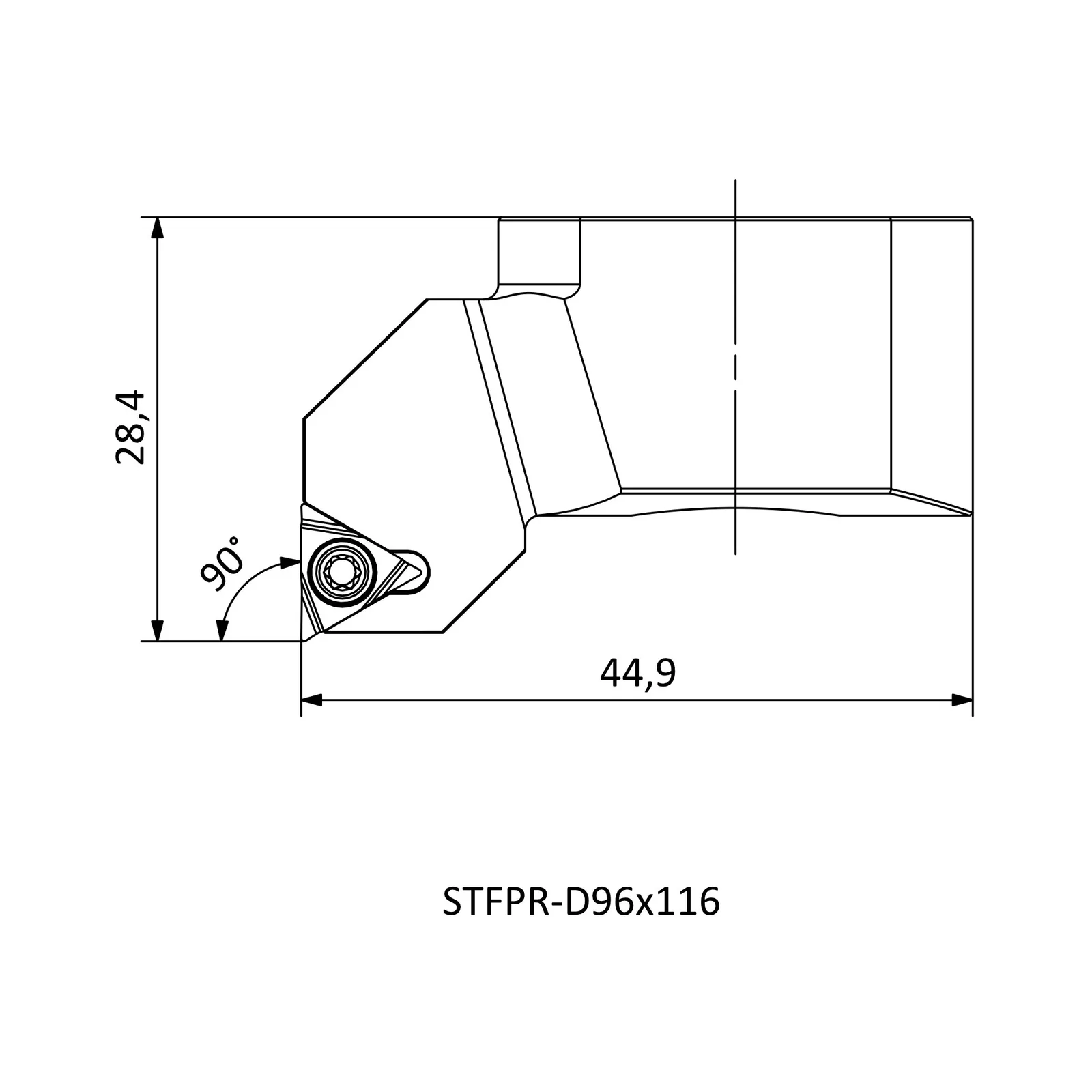

Specifications — STFPR-D96x116
| Insert Code | Insert designation | TPGX 090202L |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 44.9 |
| WF | Functional width (mm) | 29 |
| KAPR | Tool cutting edge angle (deg) | 90 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in STFPR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Tool cutting edge angle (deg) |
|---|---|---|---|---|
| STFPR-D29x35 | R | 21.9 | 10 | 90 |
| STFPR-D34x40 | R | 21.9 | 12.5 | 90 |
| STFPR-D39x47 | R | – | 12 | 90 |
| STFPR-D46x54 | R | – | 15.5 | 90 |
| STFPR-D52x68 | R | 34.9 | 14 | 90 |
| STFPR-D64x80 | R | 34.9 | 20 | 90 |
| STFPR-D78x98 | R | 44.9 | 20 | 90 |
| STFPR-D96x116 | R | 44.9 | 29 | 90 |
