Tool Holders / Fine Boring Bars
STUPR-D24X30-50
STUPR/L series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TPGX 0902 (as listed in the catalogue data).

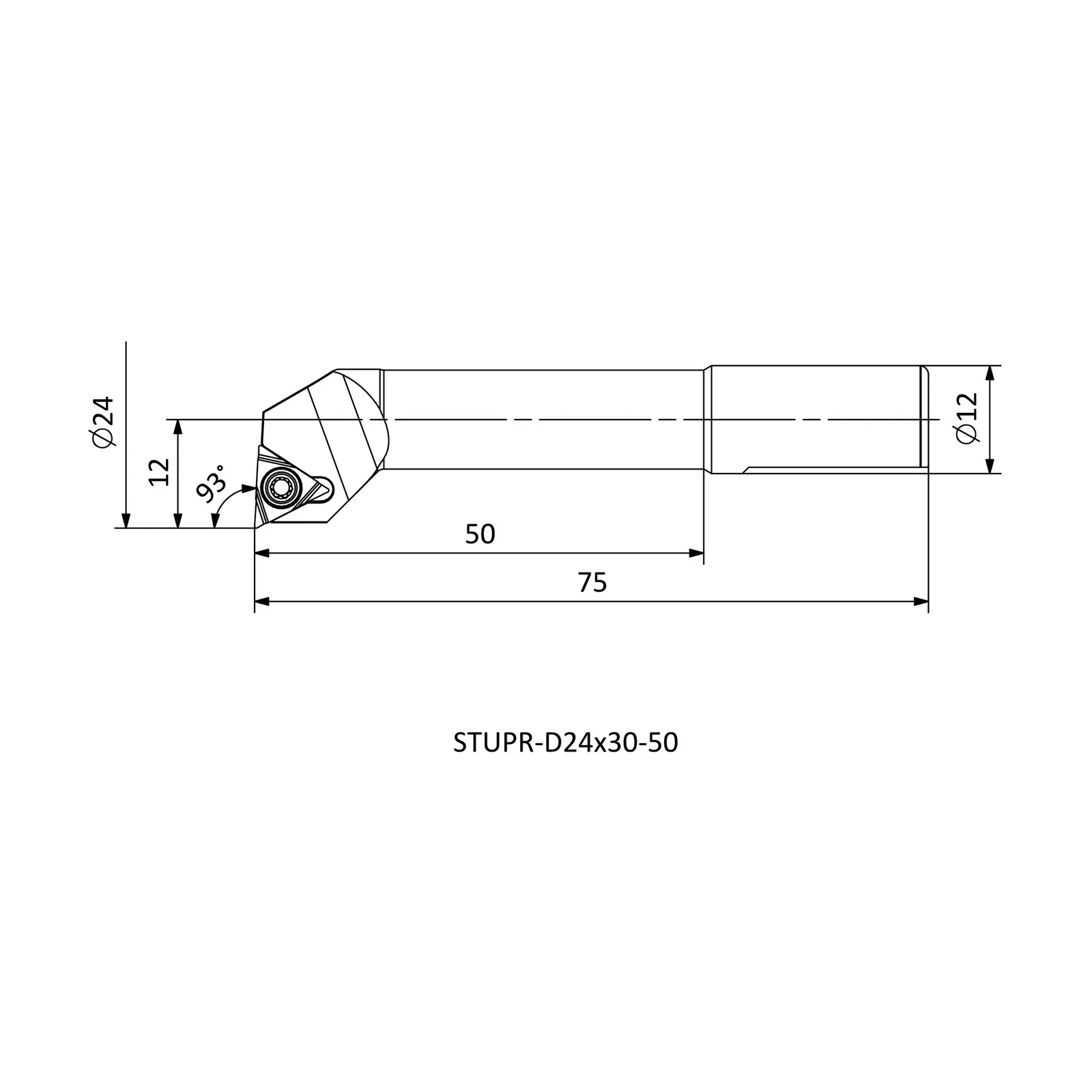

Specifications — STUPR-D24X30-50
| Insert Code | Insert designation | TPGX 0902 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 75 |
| WF | Functional width (mm) | 12 |
| KAPR | Tool cutting edge angle (deg) | 93 |
| DC | Cutting diameter (mm) | 24 |
| OHN | Overhang, nominal (mm) | 50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in STUPR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| STUPR-D12X18-40 | R | 12 | 65 | 6 |
| STUPR-D16X22-40 | R | 12 | 65 | 8 |
| STUPR-D20X26-40 | R | 12 | 65 | 10 |
| STUPR-D24X30-50 | R | 12 | 75 | 12 |
