Tool Holders / Fine Boring Bars
SWLCR-D08X14-30
SWLCR series · see all 2 sizes
Insert compatibility
This size is built for the insert designation WCGT 0201 (as listed in the catalogue data).

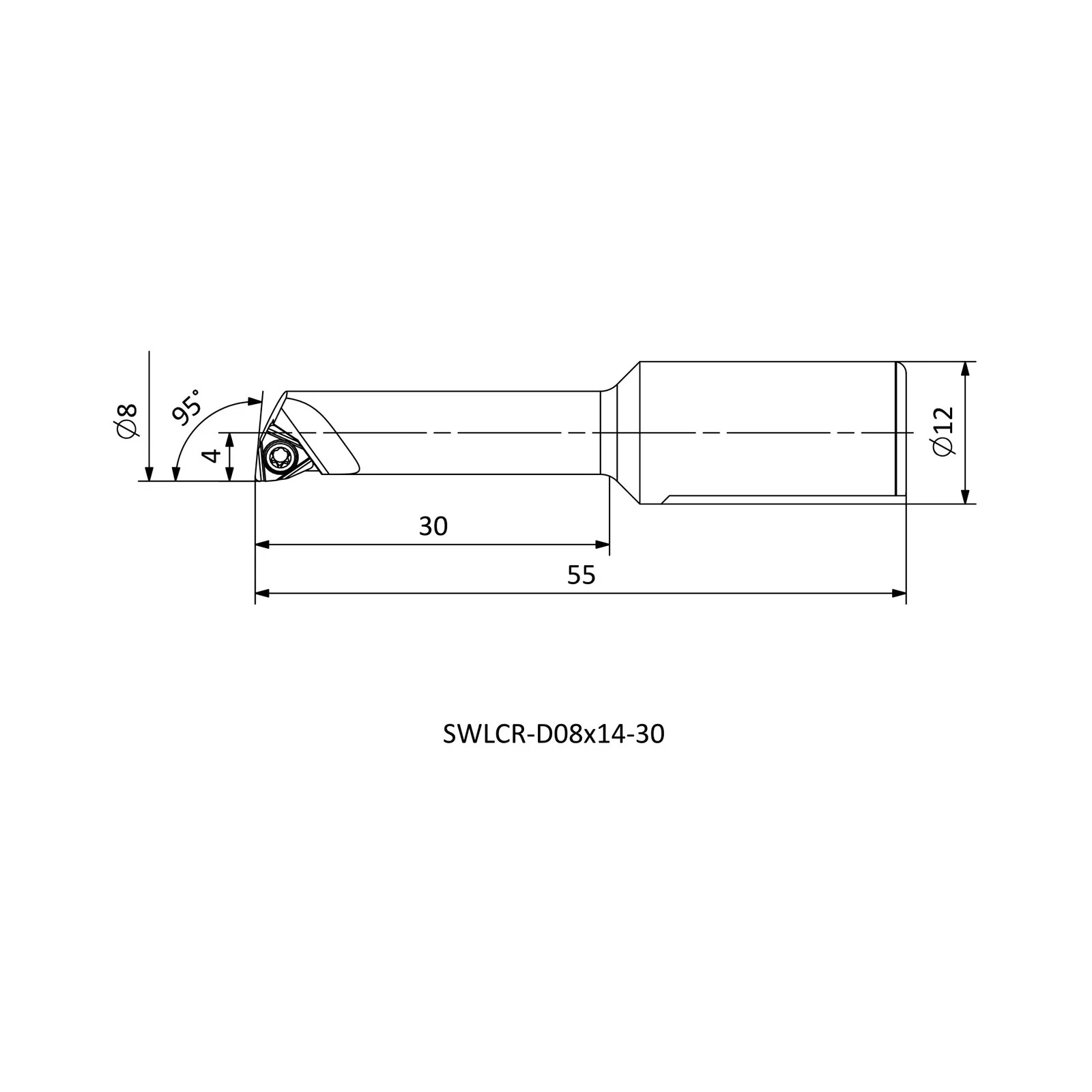

Specifications — SWLCR-D08X14-30
| Insert Code | Insert designation | WCGT 0201 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 55 |
| WF | Functional width (mm) | 4 |
| KAPR | Tool cutting edge angle (deg) | 95 |
| DC | Cutting diameter (mm) | 8 |
| OHN | Overhang, nominal (mm) | 30 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in SWLCR
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| SWLCR-D06X10-22 | R | 12 | 47 | 3 |
| SWLCR-D08X14-30 | R | 12 | 55 | 4 |
