Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-BL1205-D080-A27-Z05-H
AHFM-BL series · see all 3 sizes
Insert compatibility
This size is built for the insert designation BLMP 1205 (as listed in the catalogue data).

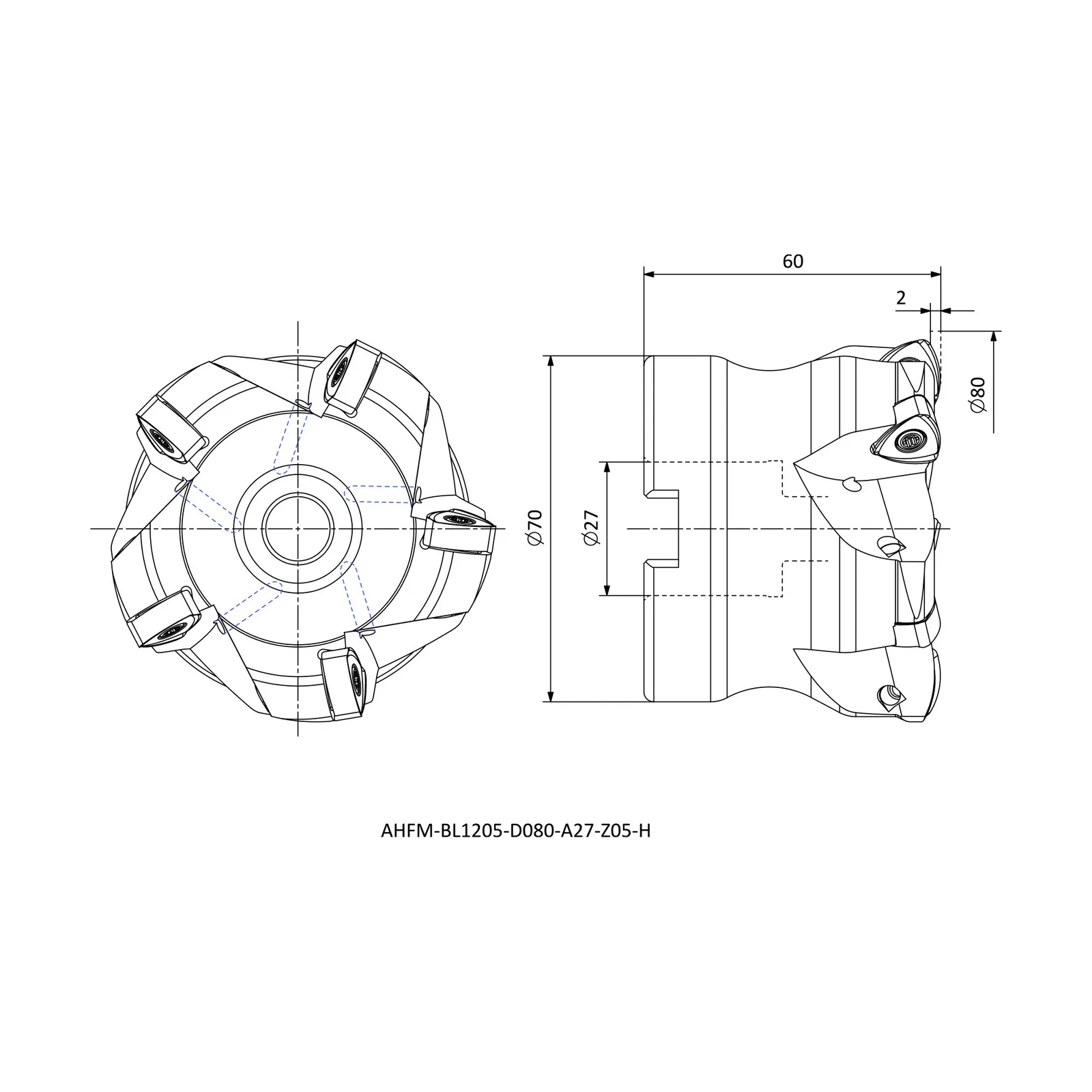

Specifications — AHFM-BL1205-D080-A27-Z05-H
| Insert Code | Insert designation | BLMP 1205.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 80 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AHFM-BL
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-BL1205-D050-A22-Z03-H | R | 22 | 40 | 50 |
| AHFM-BL1205-D063-A22-Z04-H | R | 22 | 40 | 63 |
| AHFM-BL1205-D080-A27-Z05-H | R | 27 | 50 | 80 |
