Tool Holders / High Feed Milling Tools (ARBOR Type)

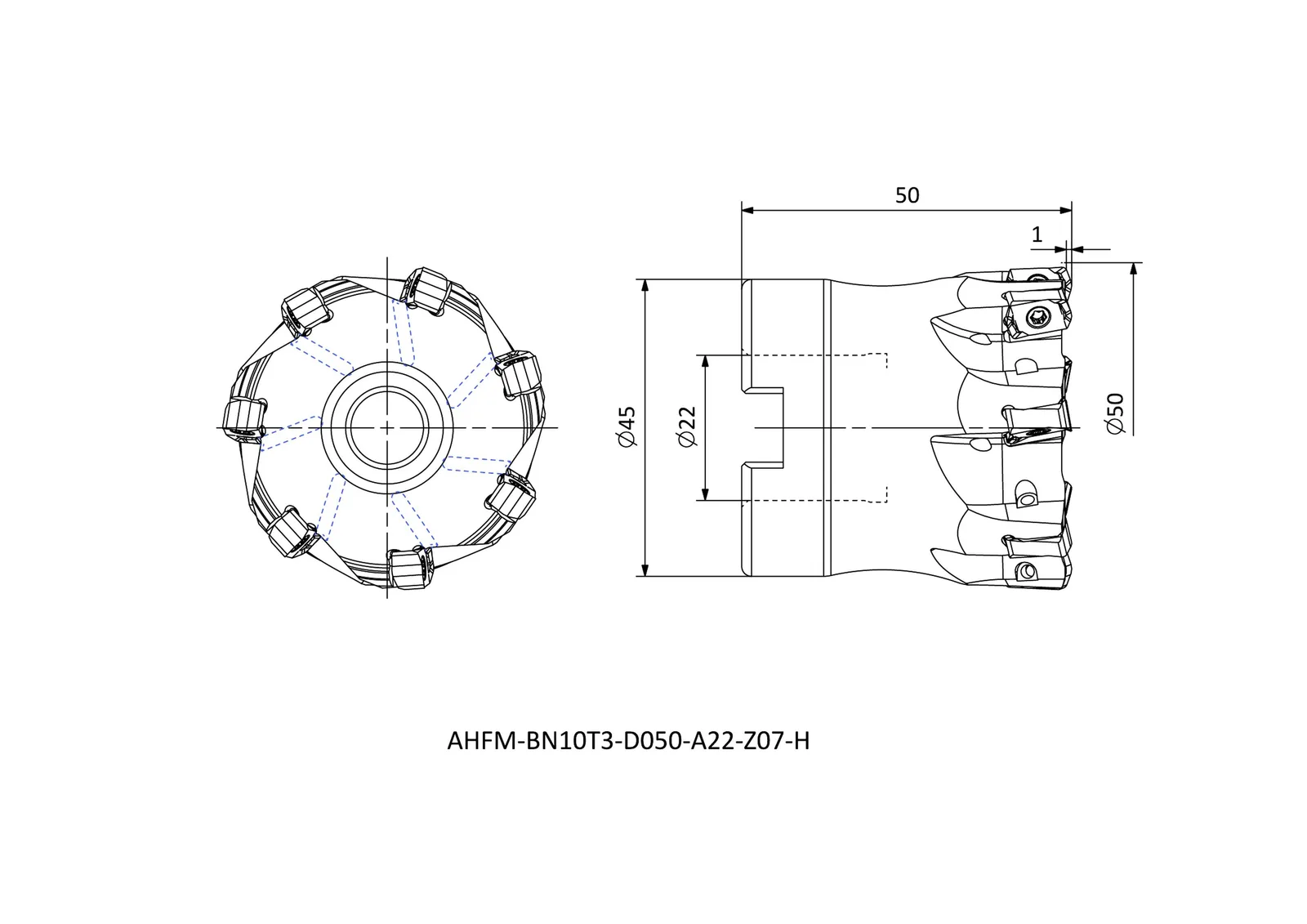

AHFM-BN10T3-D050-A22-Z07-H
AHFM-BN10T3 series · see all 4 sizes
Insert compatibility
This size is built for the insert designation BNGX 10T3 (as listed in the catalogue data).
Specifications — AHFM-BN10T3-D050-A22-Z07-H
| Insert Code | Insert designation | BNGX 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 50 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AHFM-BN10T3
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-BN10T3-D040-A16-Z05-H | R | 16 | 40 | 40 |
| AHFM-BN10T3-D042-A16-Z05-H | R | 16 | 40 | 42 |
| AHFM-BN10T3-D050-A22-Z07-H | R | 22 | 50 | 50 |
| AHFM-BN10T3-D052-A22-Z07-H | R | 22 | 50 | 52 |
