Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-JD1003-D063-A22-Z08-H
AHFM-JD1003 series · see all 2 sizes
Insert compatibility
This size is built for the insert designation JDMT 1003 (as listed in the catalogue data).

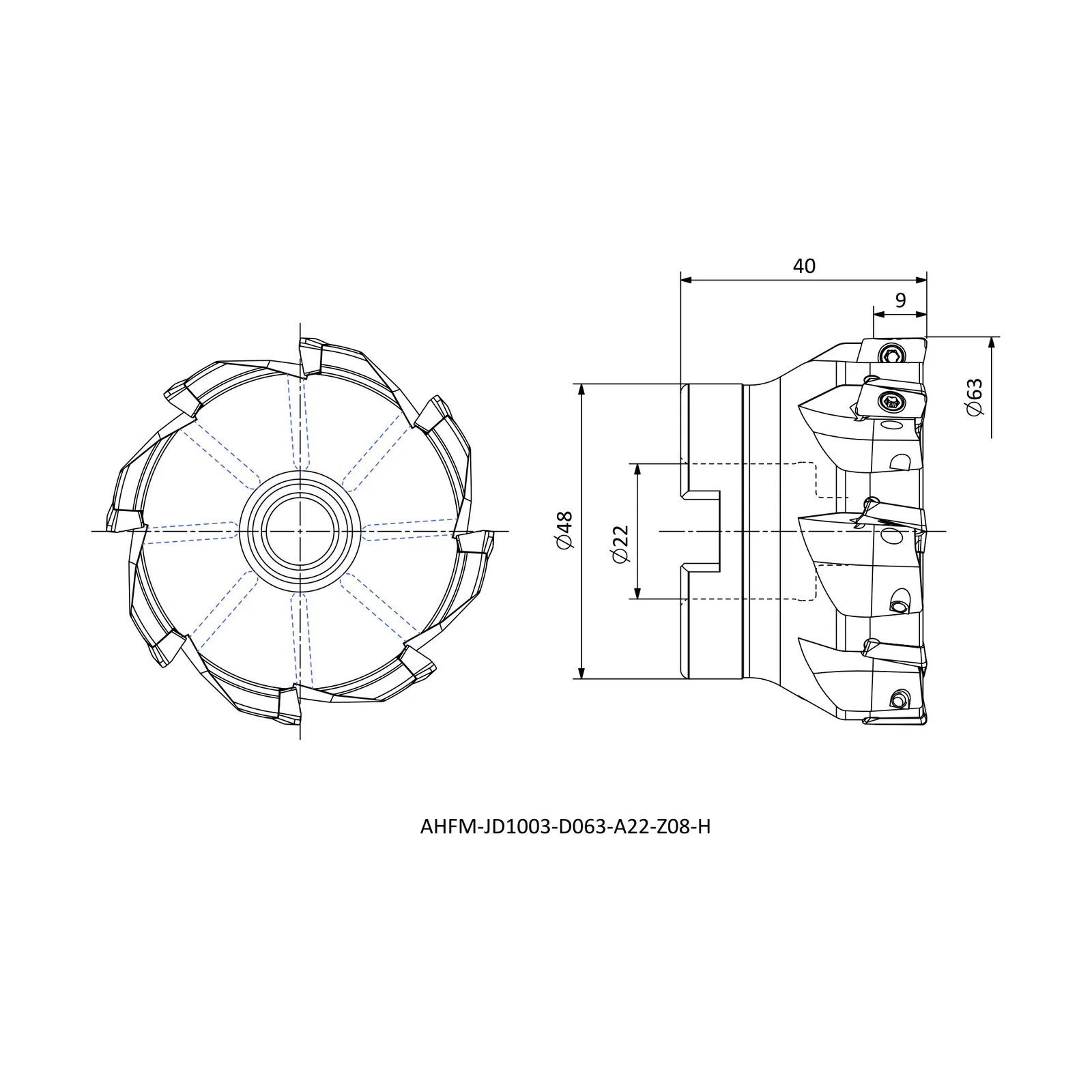

Specifications — AHFM-JD1003-D063-A22-Z08-H
| Insert Code | Insert designation | JDMT 1003.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 8 |
| APMX | Depth of cut, maximum (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHFM-JD1003
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-JD1003-D040-A16-Z06-H | R | 40 | 16 | 40 |
| AHFM-JD1003-D063-A22-Z08-H | R | 63 | 22 | 40 |
