Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-JO09-D063-A22-Z05-H
AHFM-JO09 series · see all 2 sizes
Insert compatibility
This size is built for the insert designation JOMU 090512 (as listed in the catalogue data).

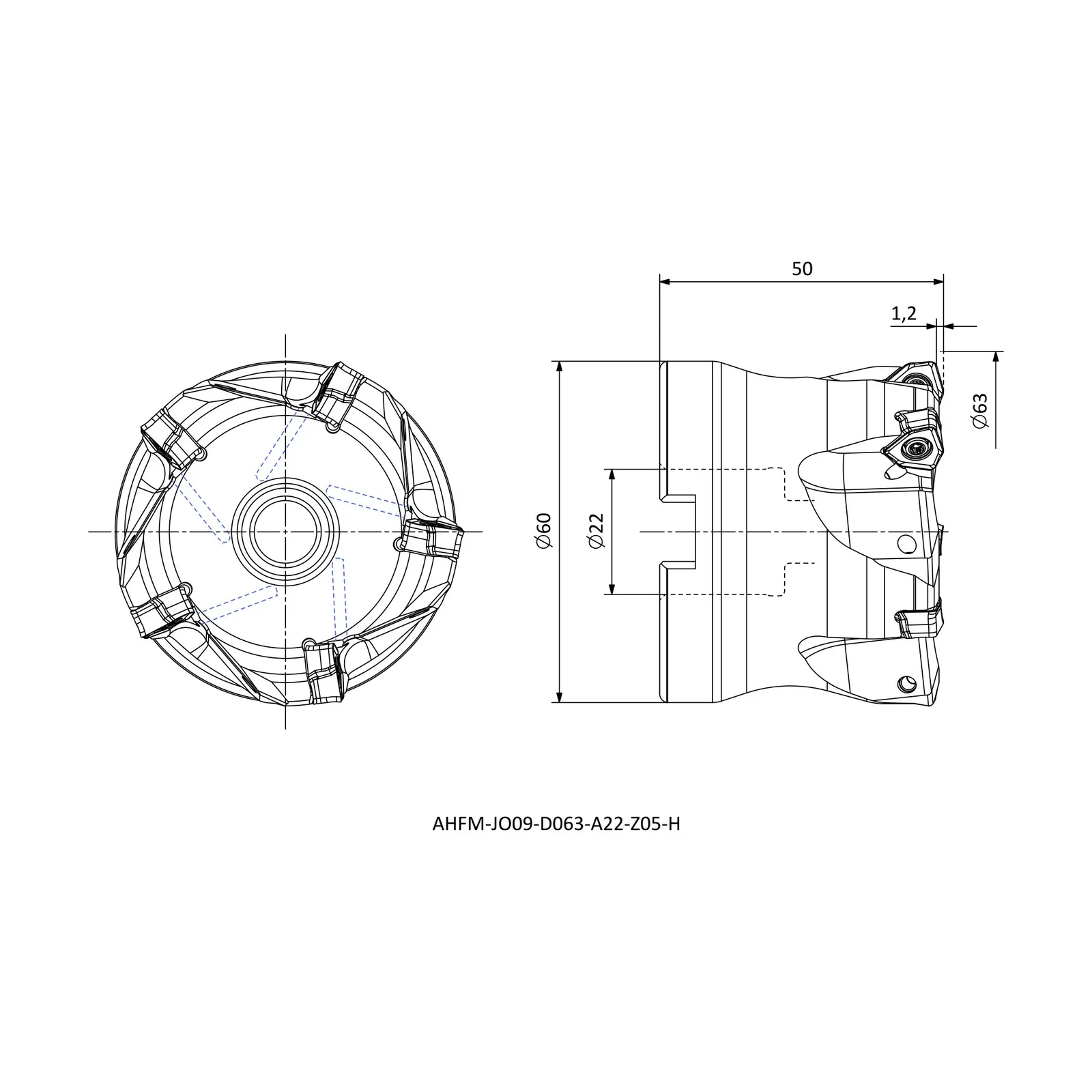

Specifications — AHFM-JO09-D063-A22-Z05-H
| Insert Code | Insert designation | JOMU 090512 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 1.2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHFM-JO09
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-JO09-D050-A22-Z04-H | R | 50 | 22 | 50 |
| AHFM-JO09-D063-A22-Z05-H | R | 63 | 22 | 50 |
