Tool Holders / High Feed Milling Tools (ARBOR Type)

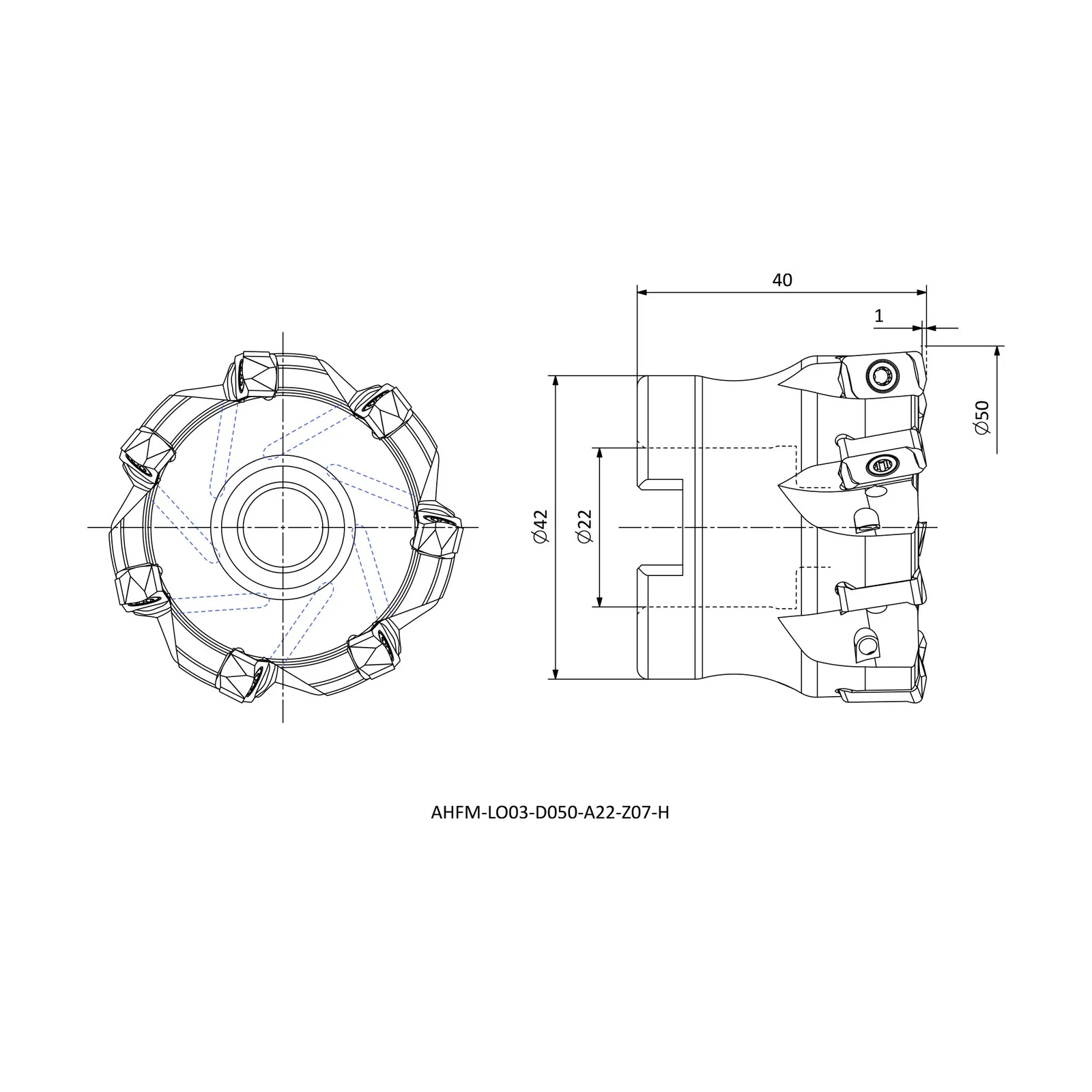

AHFM-LO03-D050-A22-Z07-H
AHFM-LO series · see all 3 sizes
Insert compatibility
This size is built for the insert designation LOGU 0303 (as listed in the catalogue data).
Specifications — AHFM-LO03-D050-A22-Z07-H
| Insert Code | Insert designation | LOGU 0303.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| DCX | Maximum diameter (mm) | 50 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AHFM-LO
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-LO03-D040-A16-Z06-H | R | 16 | 40 | 40 |
| AHFM-LO03-D050-A22-Z07-H | R | 22 | 40 | 50 |
| AHFM-LO03-D063-A22-Z09-H | R | 22 | 40 | 63 |
