Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-SD1205-D066-A22-Z06-H
AHFM-SD series · see all 7 sizes
Insert compatibility
This size is built for the insert designation SD.. 1205 (as listed in the catalogue data).
Specifications — AHFM-SD1205-D066-A22-Z06-H
| Insert Code | Insert designation | SD.. 1205.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 66 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AHFM-SD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SD1205-D100-A32-Z08-H | R | 32 | 70 | 100 |
| AHFM-SD1205-D052-A22-Z04-H | R | 22 | 50 | 52 |
| AHFM-SD1205-D052-A22-Z05-H | R | 22 | 50 | 52 |
| AHFM-SD1205-D063-A22-Z05-H | R | 22 | 50 | 63 |
| AHFM-SD1205-D066-A22-Z05-H | R | 22 | 50 | 66 |
| AHFM-SD1205-D066-A22-Z06-H | R | 22 | 50 | 66 |

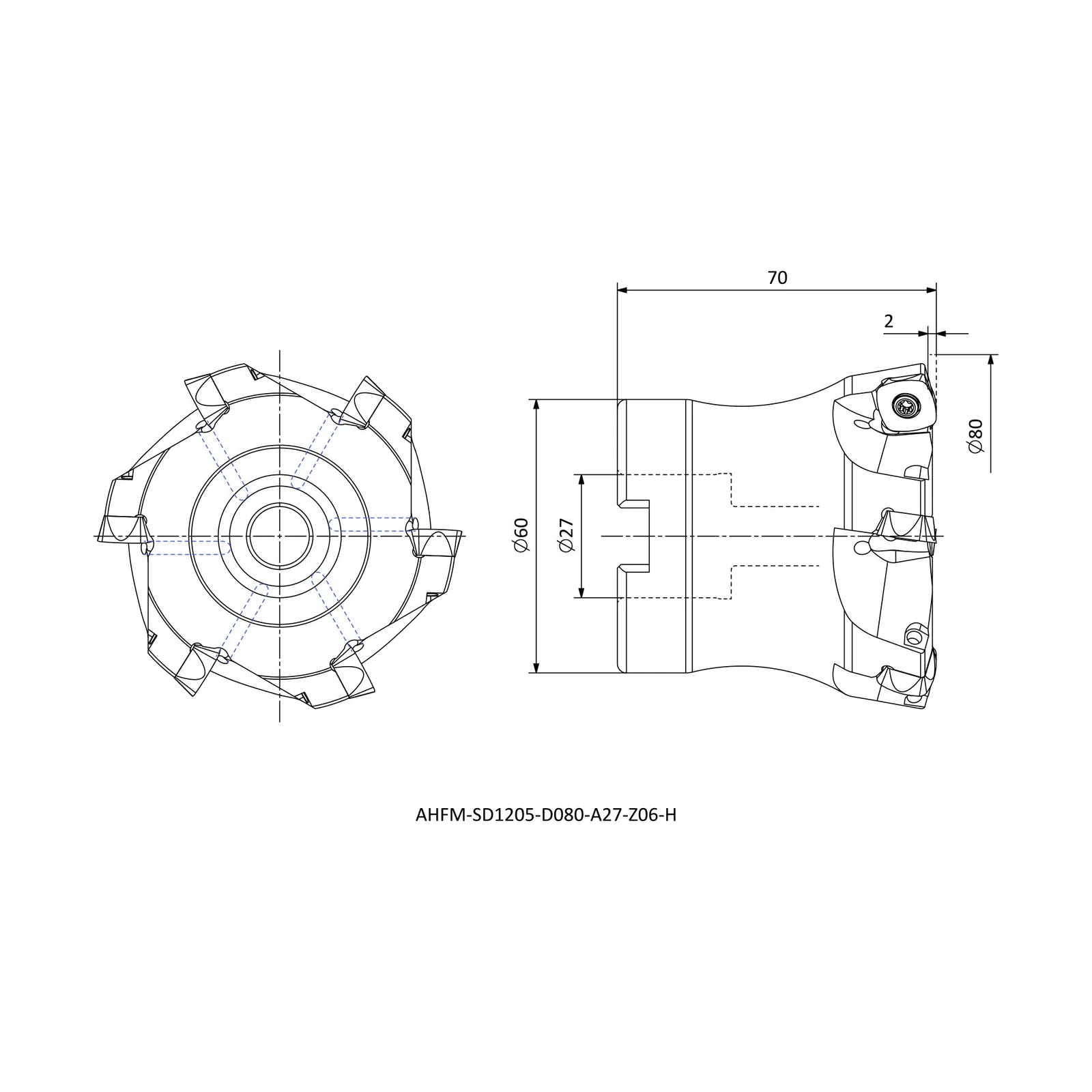

| AHFM-SD1205-D080-A27-Z06-H | R | 27 | 70 | 80 |
