Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-SN1104-D063-A22-Z06-H
AHFM-SN1104 series · see all 11 sizes
Insert compatibility
This size is built for the insert designation SN.. 1104 (as listed in the catalogue data).

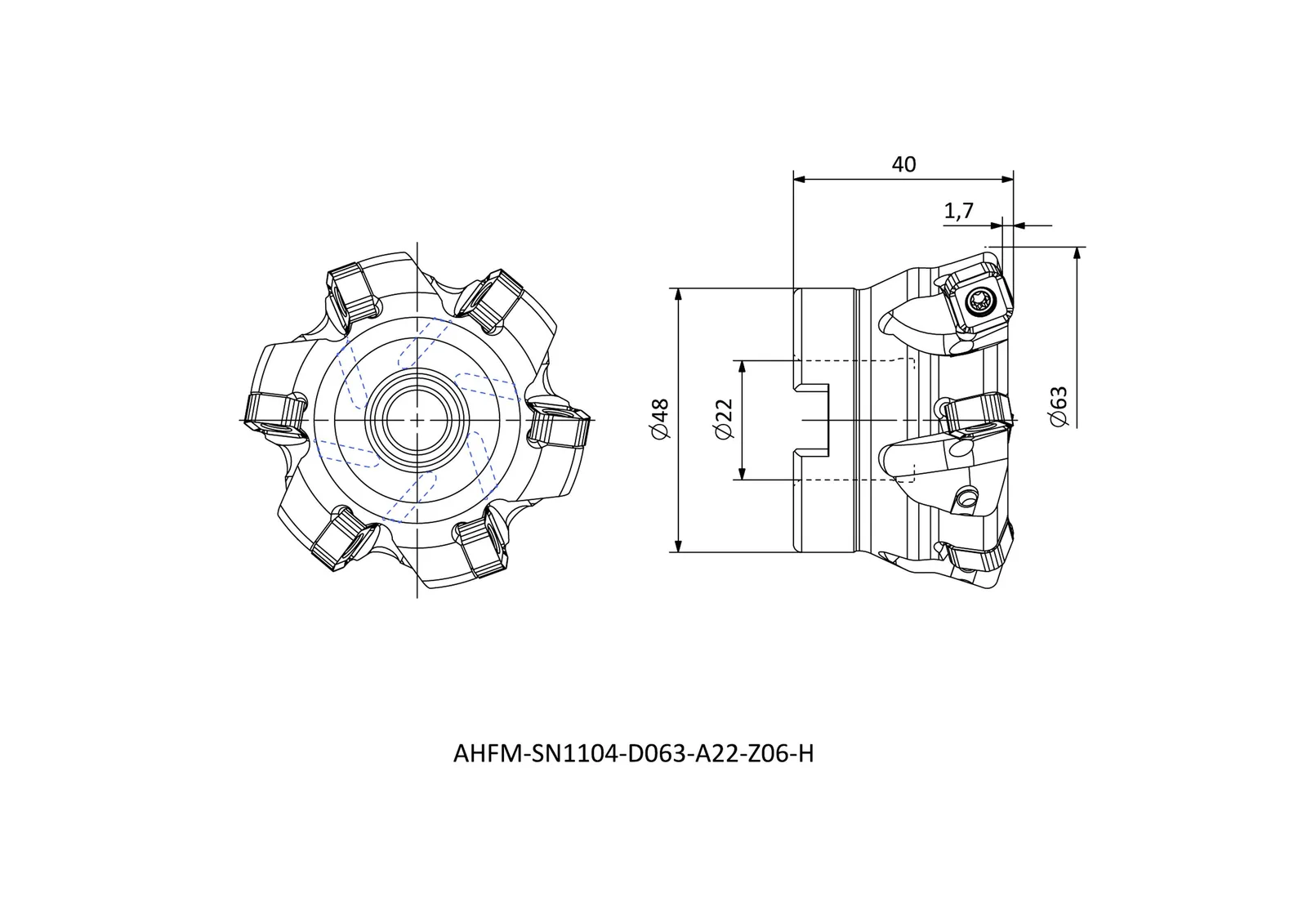

Specifications — AHFM-SN1104-D063-A22-Z06-H
| Insert Code | Insert designation | SN.. 1104.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| DCX | Maximum diameter (mm) | 63 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 1.7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AHFM-SN1104
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SN1104-D042-A16-Z04-H | R | 16 | 40 | 42 |
| AHFM-SN1104-D050-A22-Z05-H | R | 22 | 40 | 50 |
| AHFM-SN1104-D050-A22-Z06-H | R | 22 | 40 | 50 |
| AHFM-SN1104-D052-A22-Z05-H | R | 22 | 40 | 52 |
| AHFM-SN1104-D052-A22-Z06-H | R | 22 | 40 | 52 |
| AHFM-SN1104-D063-A22-Z06-H | R | 22 | 40 | 63 |
| AHFM-SN1104-D066-A27-Z06-H | R | 27 | 50 | 66 |
| AHFM-SN1104-D080-A27-Z07-H | R | 27 | 50 | 80 |
| AHFM-SN1104-D080-A27-Z09-H | R | 27 | 50 | 80 |
| AHFM-SN1104-D100-A32-Z08-H | R | 32 | 50 | 100 |
| AHFM-SN1104-D125-B40-Z08-H | R | 40 | 63 | 125 |
