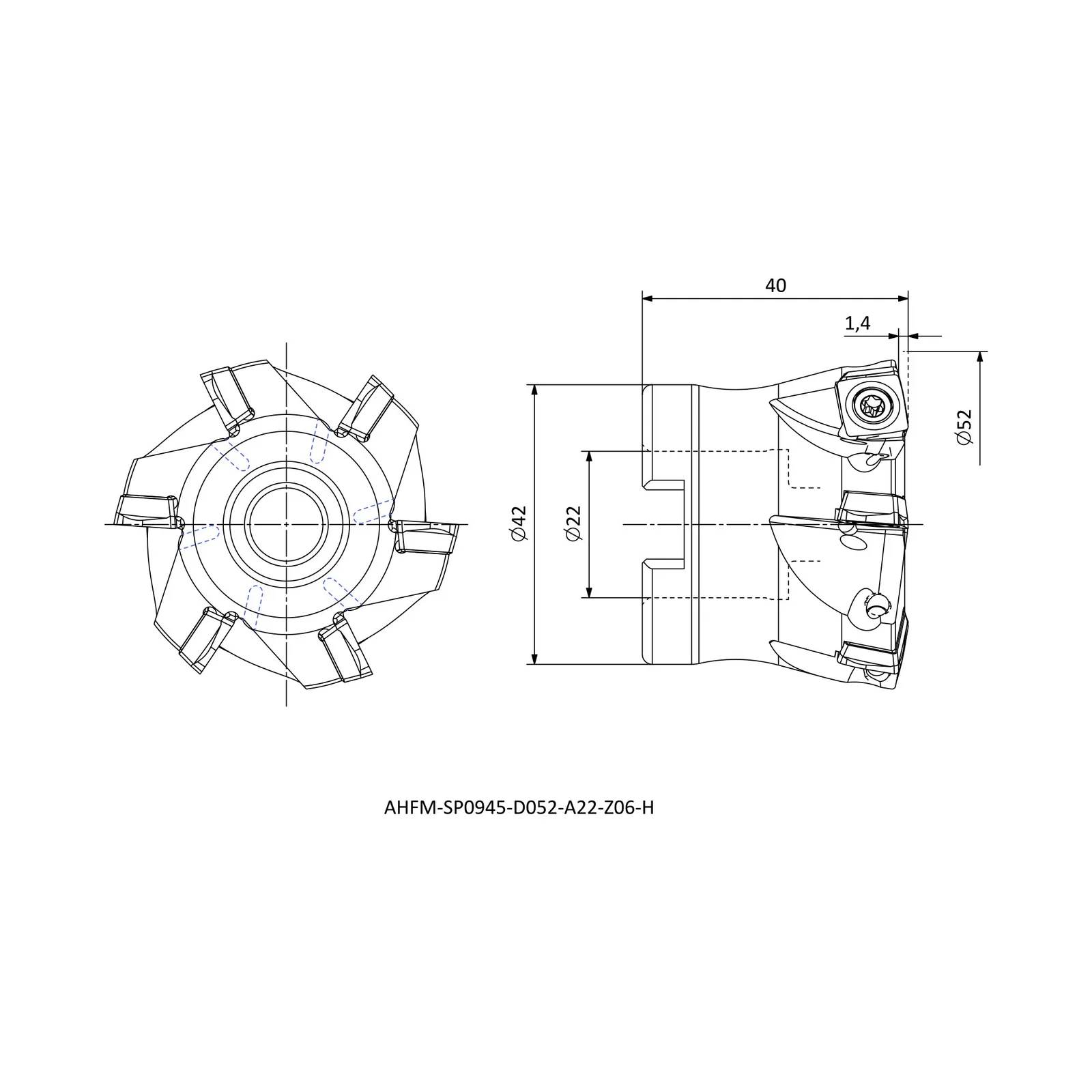

Drag to rotate — real 3D model from the CAD file
Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-SP0945-D052-A22-Z06-H
AHFM-SP-1 series · see all 2 sizes
Insert compatibility
This size is built for the insert designation SPMX 094506 (as listed in the catalogue data).
Specifications — AHFM-SP0945-D052-A22-Z06-H
| Insert Code | Insert designation | SPMX 094506 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 52 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 1.4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHFM-SP-1
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-SP0945-D050-A22-Z06-H | R | 50 | 22 | 40 |
| AHFM-SP0945-D052-A22-Z06-H | R | 52 | 22 | 40 |
