Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFM-SP1004-D063-A22-Z06-H
AHFM-SP-1 series · see all 3 sizes
Insert compatibility
This size is built for the insert designation SPNW 1004 (as listed in the catalogue data).

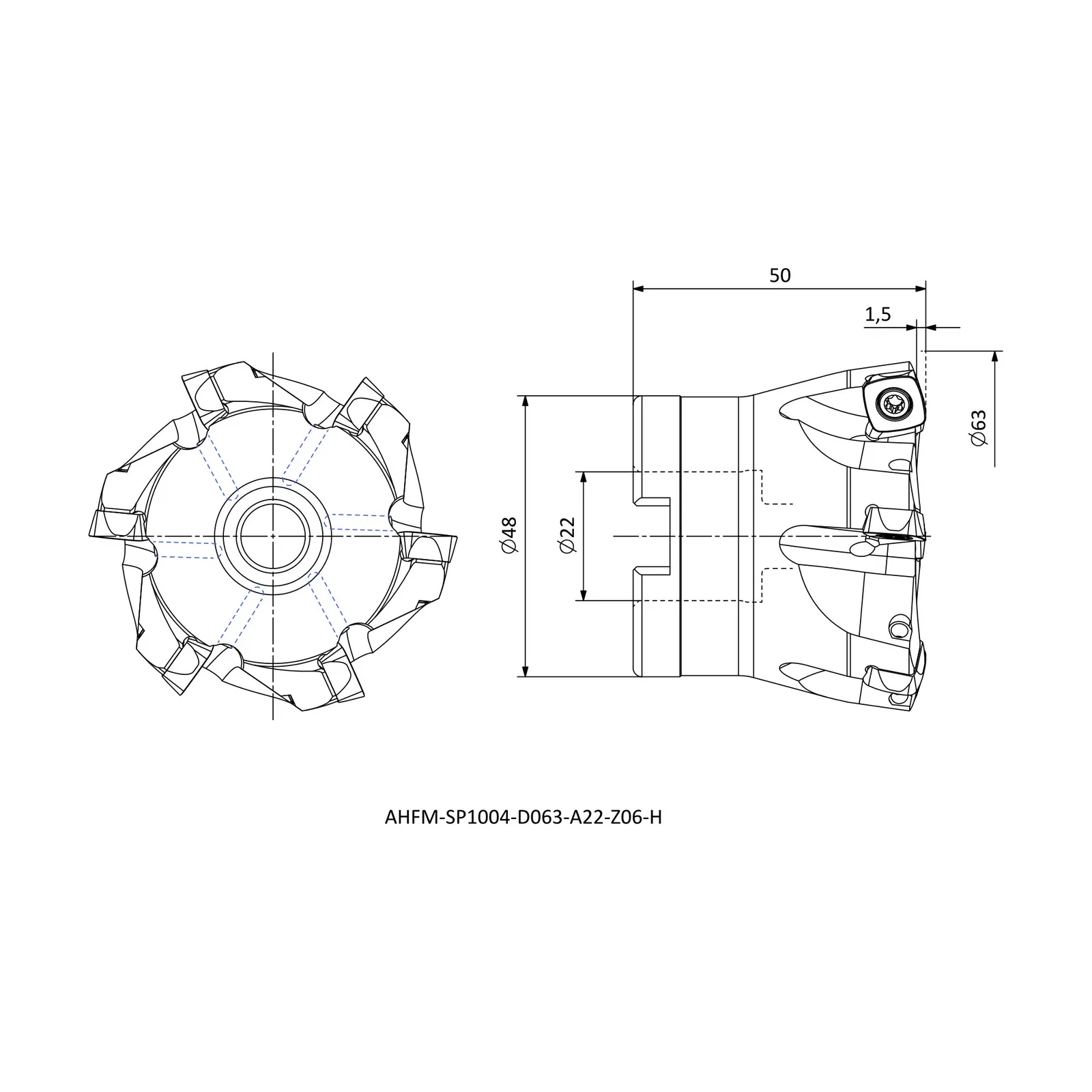

Specifications — AHFM-SP1004-D063-A22-Z06-H
| Insert Code | Insert designation | SPNW 1004.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 63 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AHFM-SP-1
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SP1004-D050-A22-Z05-H | R | 22 | 50 | 50 |
| AHFM-SP1004-D052-A22-Z05-H | R | 22 | 50 | 52 |
| AHFM-SP1004-D063-A22-Z06-H | R | 22 | 50 | 63 |
