Tool Holders / High Feed Milling Tools (ARBOR Type)

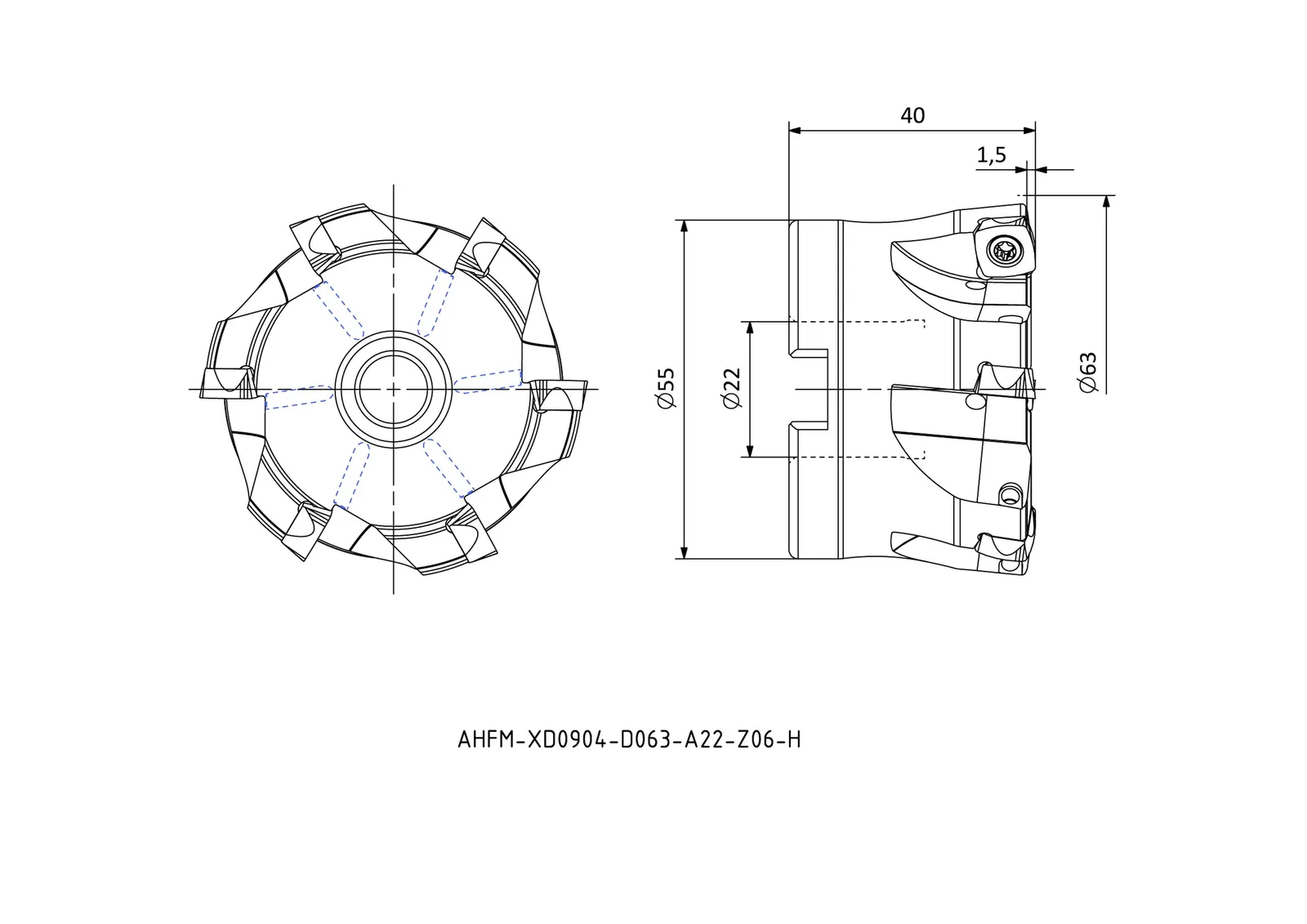

AHFM-XD0904-D063-A22-Z06-H
AHFM-XD0904 series · see all 2 sizes
Insert compatibility
This size is built for the insert designation XD.. 0904 (as listed in the catalogue data).
Specifications — AHFM-XD0904-D063-A22-Z06-H
| Insert Code | Insert designation | XD.. 0904.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| DCX | Maximum diameter (mm) | 63 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHFM-XD0904
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-XD0904-D050-A22-Z05-H | R | 22 | 40 | 50 |
| AHFM-XD0904-D063-A22-Z06-H | R | 22 | 40 | 63 |
